Aspen Wardrobe
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
bolt
locking
dowel
x 26
nut x 26
x 24
screw x 24
G
H
L + R
L + R
handle
slide rail
slide rail
x 4
x 2
x 2
O
M
N
screw
shelf plug
hinge
x36
x 12
x 6

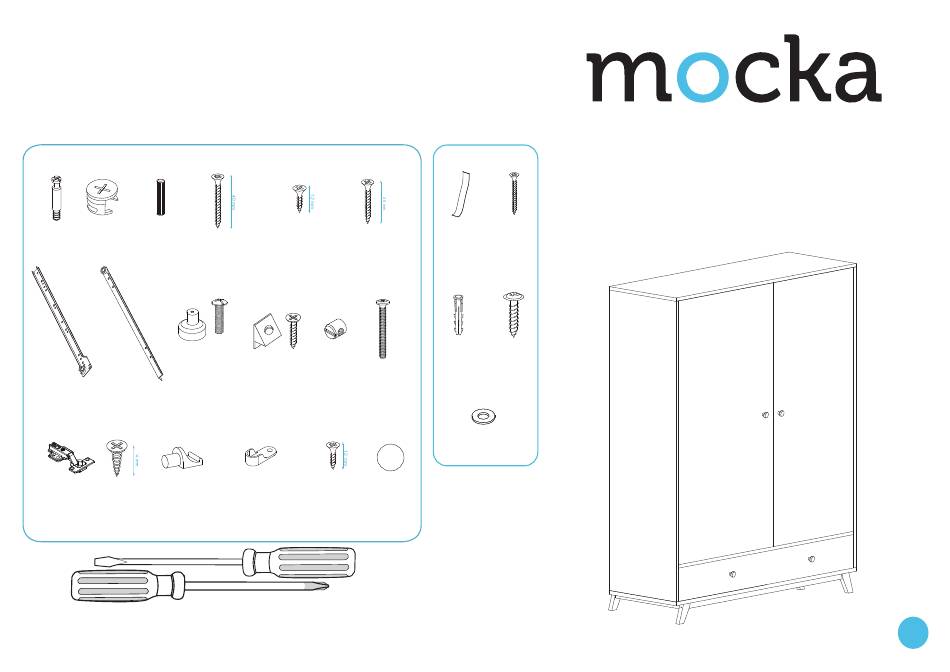

Hardware Supplied
Phillips & Flathead screwdrivers and hammer required
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
mocka.co.nz | mocka.com.au
E
D
F
small
long
medium
screw x 10
screw x 11
K
L
I
J
wedge
long
nut
x16
screw x4
x 4
P
Q
small
cover
clothes hanger
screw x 8
x 4
support x 4
WARNING: Any furniture that is not anchored to a wall has the potential
W
to tip over in certain circumstances, i.e. if a child attempts to climb up on
the furniture or in the event of an earthquake. Accordingly, we
recommend that all furniture is anchored to a wall. We supply a free
safety wall anchor with all furniture sold and we recommend these are
used to prevent your product tipping. The fixing device provided should
fit most wall types, but please note that different wall materials
safety
long
may require different fixing devices from those supplied.
strap
screw
x2
x2
X
Y
wall
screw
anchor
x2
x2
Z
R
washer
x2
1
