Sigma Controls MYRIAD DPC Instruction Manual page 13

13

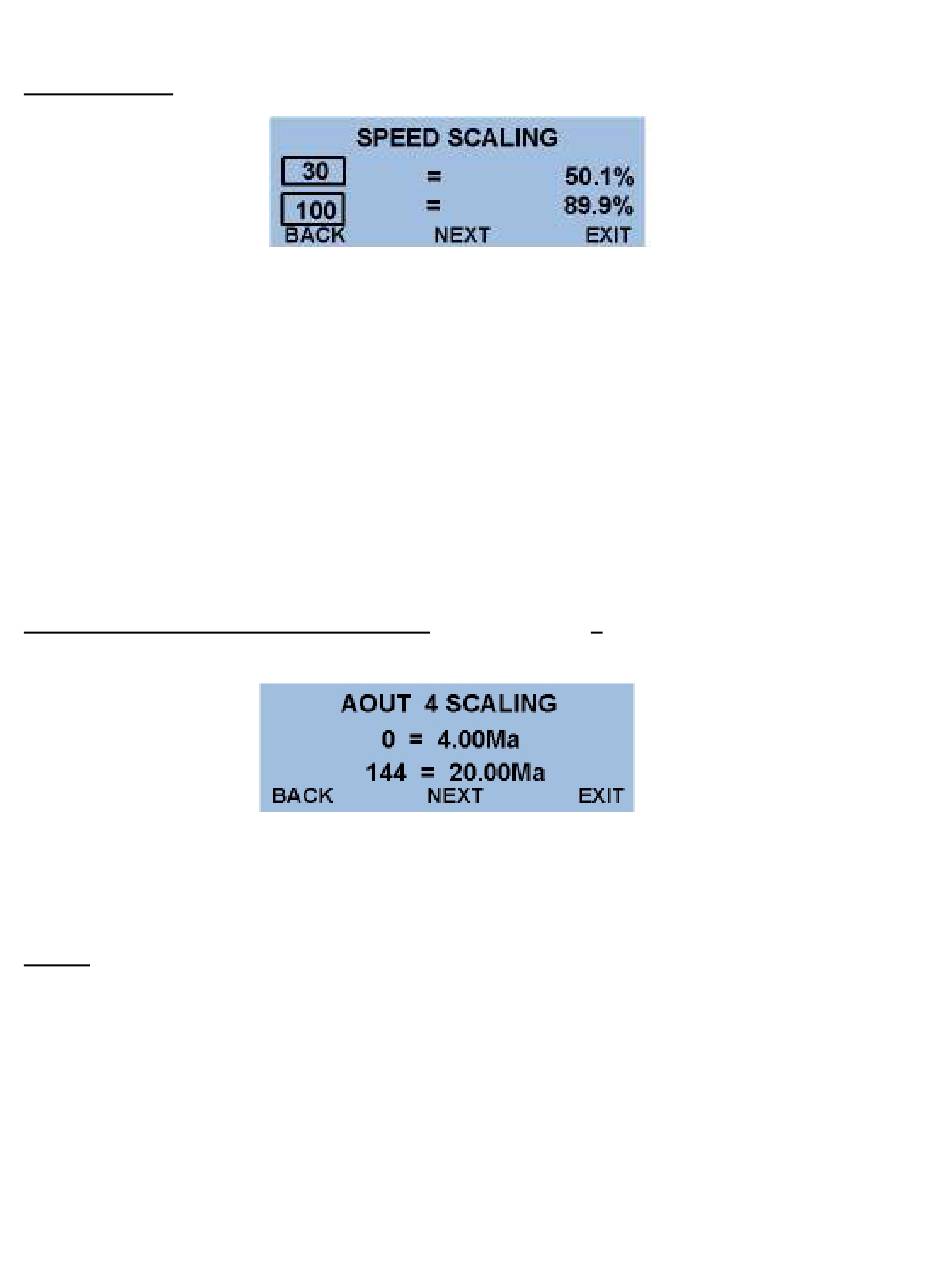

SPEED SCALE
The 'level' value will be highlighted, use the ↑ ↓ buttons to change the level point at which the
speed of the drive (selected in the next block) is requested. In the example above, the drive will
be at 50% speed when the level is 30 inches.
Select a value of drive speed and level as described above and scroll to 'EXIT' to save the
values selected and move to analog output 4 screen.
NOTE: When inverting the output direction (as in a pressure application), the speed on
scale one must be lower than the speed on scale 2. For example, to invert the default
values that are shown here, use the following settings:
Scale 1: Level = 100, Speed = 50%
ANALOG OUTPUT 4 (ANLOUT4) NOTE: Analog output 3 is a nonadjustable
retransmitted signal which 'mirrors' the analog input signal.
NOTE: Analog output 4 is retransmitted output which can be scaled to any value of the display.
With the display value highlighted, use the ↑ ↓ buttons to select a display value at which a
selectable output occurs. Use → ← buttons to move to the output value for the previously
selected display value and adjust as described above.
NOTE: In the example shown 4.00 MA will be output from analog output 4 when the
display value is 0 inches.
From menu 2 use the → ← buttons to select 'SETUP' and press 'ENTER' to access the setup
menu.
