This screen allows the selection of several engineering units. With the cursor on the default
value as shown, press the ↑ ↓ buttons to select between:
Use the ↑ ↓ buttons to select the desired engineering units then with the → ← buttons,
highlight 'NEXT' and press 'ENTER' to access the "DISPLAY FILTER" screen.
DISPLAY FILTER SCREEN

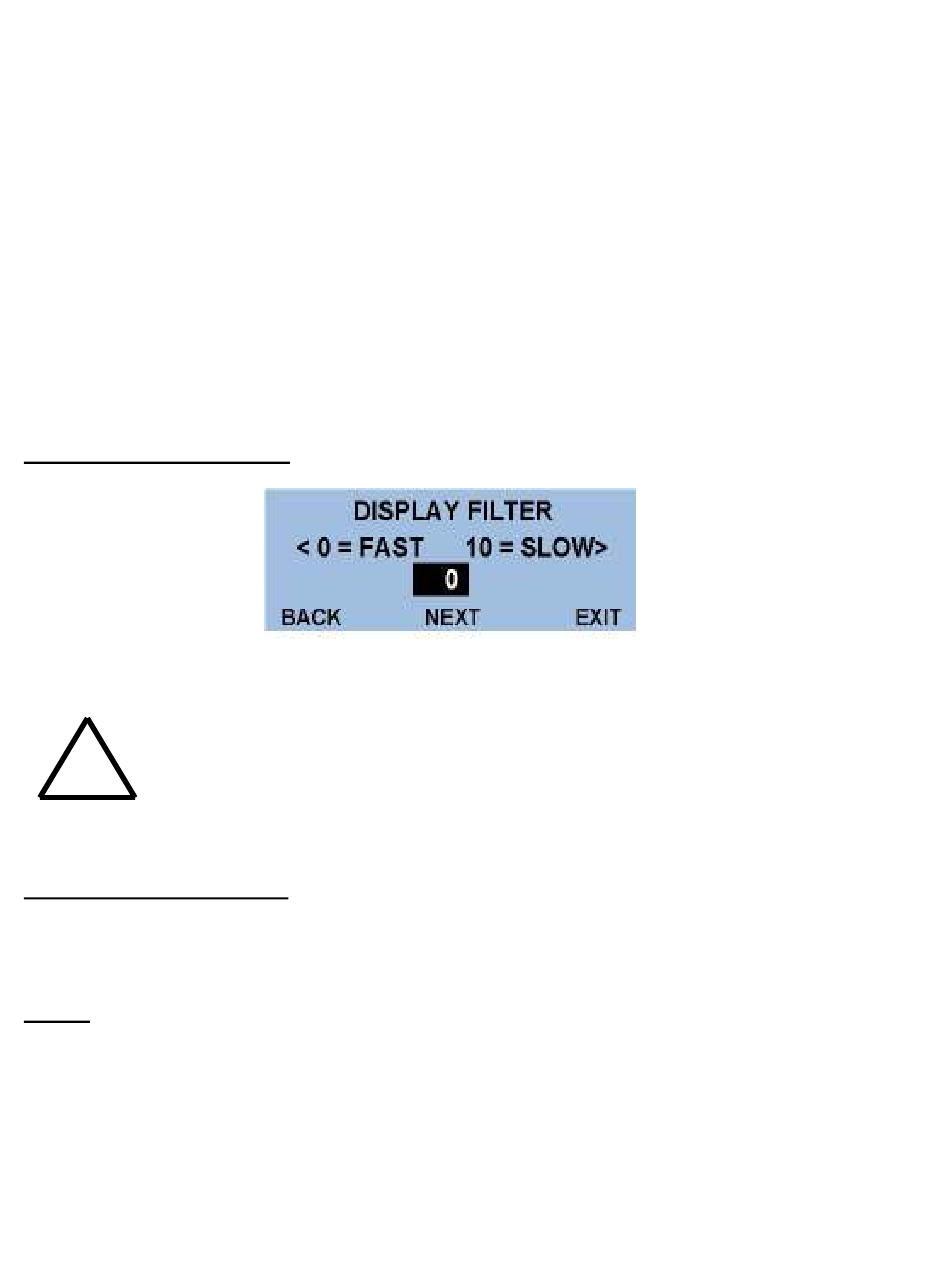

Use the ↑ ↓ buttons to change the amount of filtering applied to the input signal. '0' is no filter
and '10' is high filter.
!
Too much filtering will dampen process responses.
Scroll to 'NEXT' and press 'ENTER' to return to the Menu 2.
ANALOG OUTPUT (AOUT)
Use the → ← keys to highlight the 'AOUT' item and press 'ENTER' to access the analog output
signal settings.
NOTE: There are four analog outputs on the DPC: AOUTPUT 1 and AOUTPUT 2 are
speed vs. level setpoints which are only utilized on variable speed drive applications.
This screen allows the user to program the speed of the drive at a selected level. Both
level and drive speed are selectable.
FEET NTU
INCHES PPM
GPM DEG. F
PSI DEG C
LPM FLOATS
ING HG
MGD
