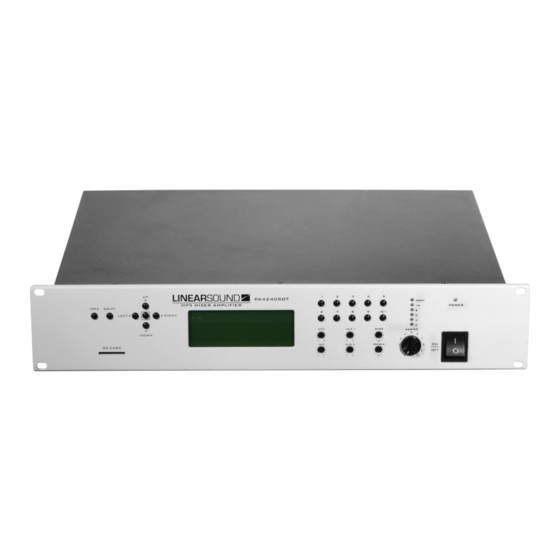

Linear Technology LINEARSOUND LTS.PA4240SDT Operation Manual

Mp3 mixer amplifier
Hide thumbs

Advertisement

Quick Links

Download this manual

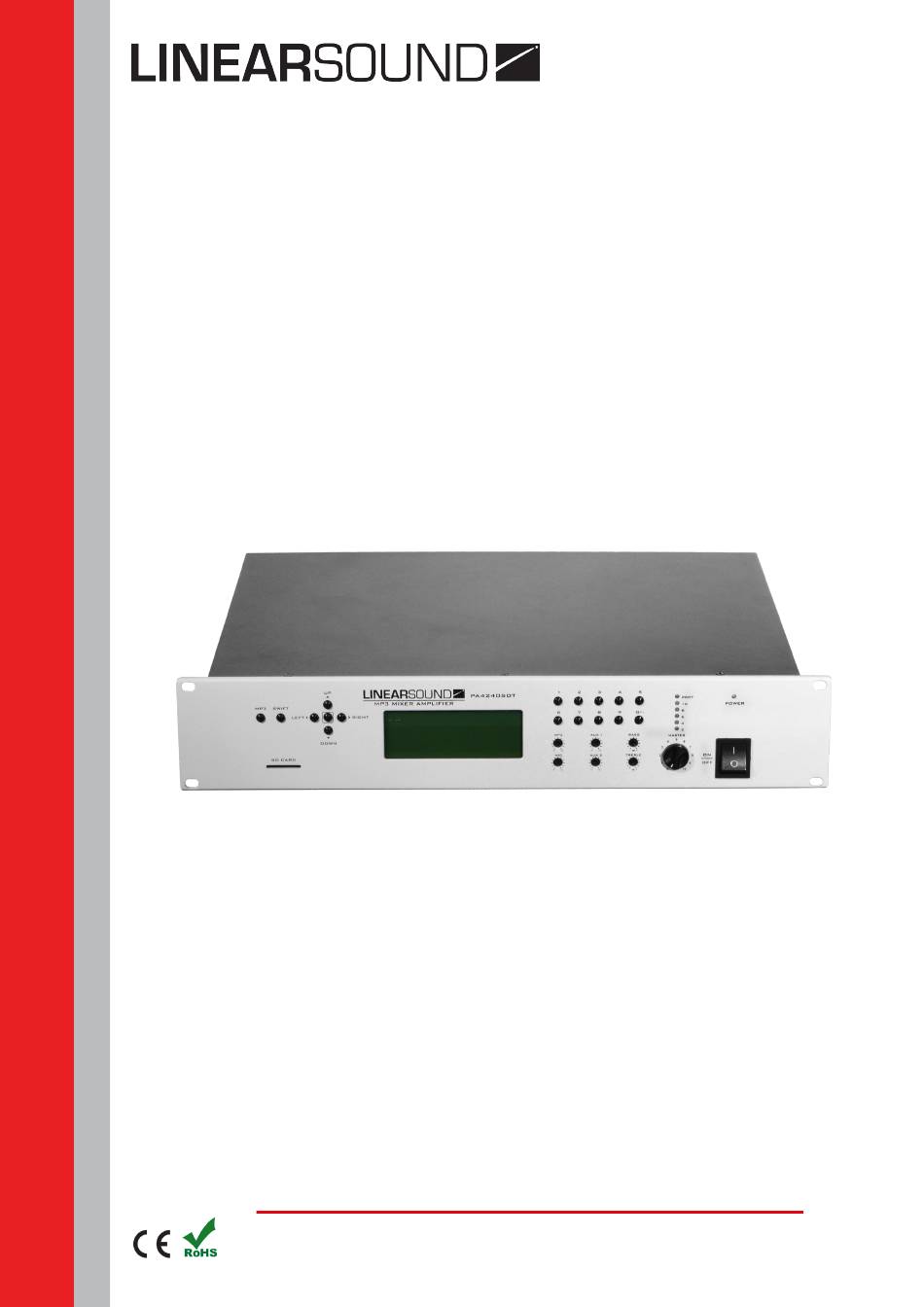

MP3 MIXER AMPLIFIER LTS.PA4240SDT
Operation manual
Please follow the instructions in this manual to obtain the optimum results from this unit.
We also recommend that you keep this manual handy for future reference.
Linear Technologie • 11 rue du Puits Rochefort • 42 100 Saint-Etienne
V.2017
Tél: +33 (0)4 77 81 49 49 • Fax: +33 (0)4 77 81 49 40 • www.lineartech.fr

Advertisement

loading
Need help?

Need help?

Do you have a question about the LINEARSOUND LTS.PA4240SDT and is the answer not in the manual?

Questions and answers

Related Manuals for Linear Technology LINEARSOUND LTS.PA4240SDT

Summary of Contents for Linear Technology LINEARSOUND LTS.PA4240SDT

  • Page 1 MP3 MIXER AMPLIFIER LTS.PA4240SDT Operation manual Please follow the instructions in this manual to obtain the optimum results from this unit. We also recommend that you keep this manual handy for future reference. Linear Technologie • 11 rue du Puits Rochefort • 42 100 Saint-Etienne V.2017 Tél: +33 (0)4 77 81 49 49 •...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Safety precautions Page 3 2. Features Page 5 3. Front and rear panel functions Page 5 4. Machine operation Page 6 5. Applications Page 10 6. Specifications Page 11 7. Common fault analysis and elimination Page 11 8.

  • Page 3: Safety Precautions

    1. SAFETY PRECAUTIONS • Be sure to read the instructions in this section carefully before use. • Make sure to observe the instructions in this manual as the conventions of safety symbols and messages regarded as very important precautions are included. •...
  • Page 4 • To prevent a fire or electric shock, never open or remove the unit case as there are high voltage components inside the unit. Refer all servicing to your nearest dealer. • Do not place cups, bowls, or other containers of liquid or metallic objects on top of the unit.

  • Page 5: Features

    Note : An all-pole mains switch with a contact separation of at least 3 mm in each pole shall be incorporated in the electrical installation of the building. 2. FEATURES 1. One road Mic input, mic is the first priority than line input and built in MP3 2.

  • Page 6: Machine Operation

    17. Power input 21. Line input 18. Output terminal, connect with speakers 22. MIC input 19. Master 23. Mute time adjust 20. Bass output 24. Fan 4. MACHINE OPERATION Home screen illustration First line : System date, day and time display. Second line : Current date next step program time and control content.
  • Page 7 System main menu operation When display home screen, press «ENTER» key to enter system main menu : Press «LEFT/ RIGHT» key Choose corresponding menu options, press «ENTER» key again, enter to corresponding submenu interface, if need to exit menu, then press «ENTER» key on Exit icon. Confirm current modification, please press OK, exit Time setup menu, return to system main menu.
  • Page 8 Time setup In system main menu Time setup icon press Enter key, show as below Enter «UP/DOWN» or «LEFT/RIGHT» to adjust year, month, day, date, hour, minute, second. Edit program Press Enter in Edit program in system main menu. If there is no program content, it will show as below : If there is content in program, it will show as below : In current program, press ENTER at ADD icon position, then it will be the below diagram.
  • Page 9 Modify program Choose corresponding program number,adjust program steps to find out the program which needs to be modified, then users can modify the corresponding contents in this step, such as time, function, etc. Add program Choose corresponding program number, press Add key, then it can add a new program. Users follow the same method as above to modify the corresponding contents.

  • Page 10: Applications

    Note : Standby program run is the fifth number program. 7 MP3 songs storage and management 1. MP3 songs store in SD storage card. Note : SD card only support 200 mA output electric current, please do not connect with large current SD devices, such as SD card notebook disc or with SD card charge function devices, or else, it will damage device or SD card work abnormal.

  • Page 11: Specifications

    6. SPECIFICATIONS Power output (THD 1%) Speaker outputs 70V, 100V, 4-16Ω MIC input sensitivity / impedance 5 mV / 600Ω AUX1-2 input sensitivity / impedance 350 mV / 10 KΩ S/N ratio ≥76 dB Frequency response 50 Hz - 18 KHz (+3 dB) Tone (bass : 100 KHz,treble : 10 KHz) ±10 dB ≤0,5%...

  • Page 12: Dimensional Diagram

    FAULT PHENOMENA DIAGNOSE EXCLUSION 1. Delete not MP3 format file 1. Improper MP3 format 2. Change the hidden setting No MP3 display 2. MP3 with hidden setting 3. Remove MP3 of other 3. Over number of MP3 sound files except the storage root directory 1.
  • Page 13 Linear Technologie • 11 rue du Puits Rochefort • 42 100 Saint-Etienne Tél: +33 (0)4 77 81 49 49 • Fax: +33 (0)4 77 81 49 40 • www.lineartech.fr...
