DESCRIPTION
Demonstration circuit 2623A features the
amplifier. The DC2623A includes two of these amplifiers
and is designed to drive the inputs of the DC2290 demo
board. The DC2290 features the LTC
high speed SAR ADC. The linearity and low noise of the
LTC6404-1 make it an ideal candidate to drive the LTC2387
at frequencies above 1MHz. See Table 1.
FROM
DIFFERENTIAL
SOURCE
Table 1. DC2290 (LTC2387 Family) Driver Boards
INPUT FREQUENCY
Up to 8kHz
Up to 1MHz
>1MHz
LTC
6404-1
®
2387 18-bit, 15Msps
®
–5V

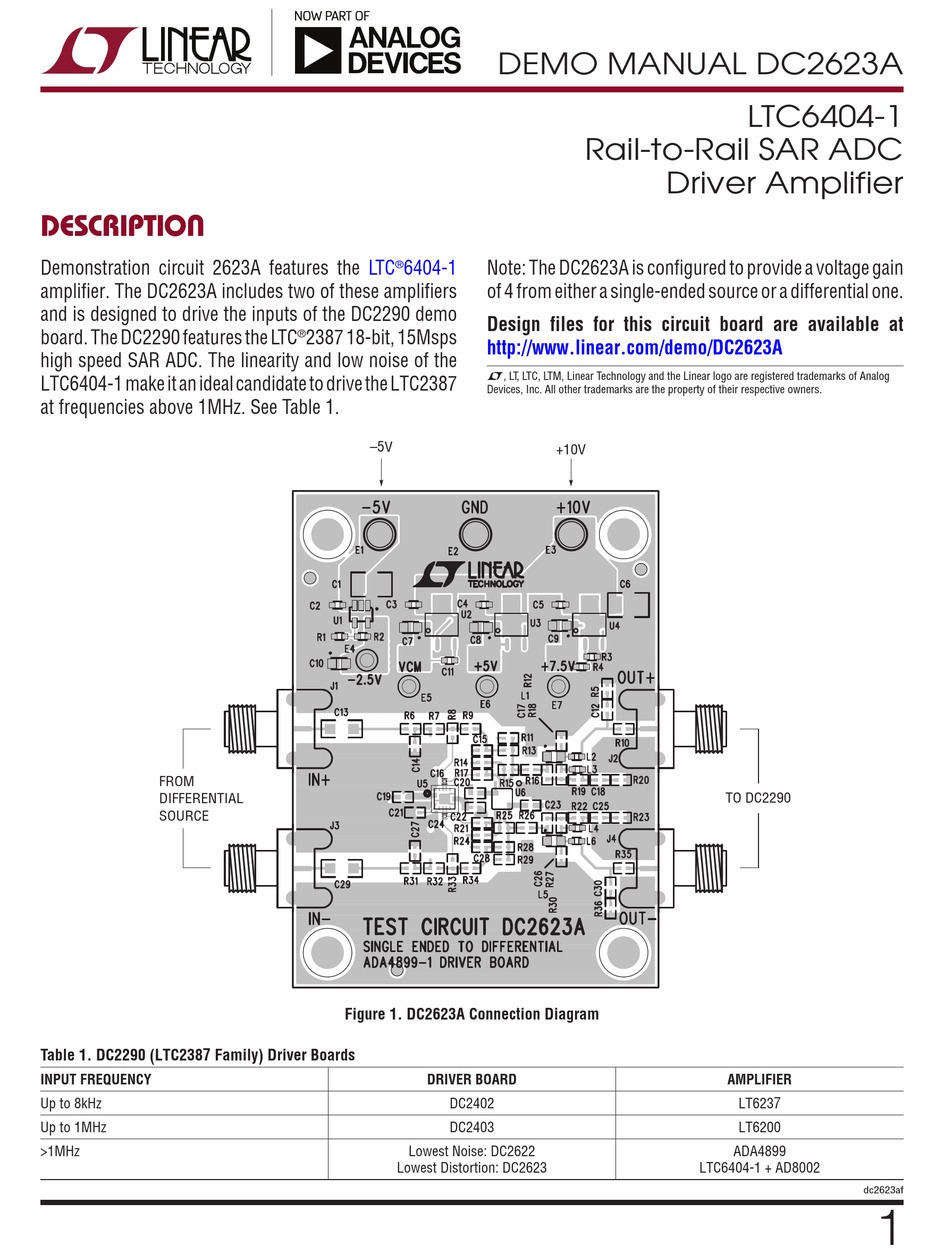

Figure 1. DC2623A Connection Diagram
DRIVER BOARD
DC2402
DC2403
Lowest Noise: DC2622
Lowest Distortion: DC2623
DEMO MANUAL DC2623A
Rail-to-Rail SAR ADC
Driver Amplifier
Note: The DC2623A is configured to provide a voltage gain
of 4 from either a single-ended source or a differential one.
Design files for this circuit board are available at
http://www.linear.com/demo/DC2623A
L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Analog
Devices, Inc. All other trademarks are the property of their respective owners.
+10V
LTC6404-1
TO DC2290
AMPLIFIER
LT6237
LT6200
ADA4899
LTC6404-1 + AD8002
dc2623af
