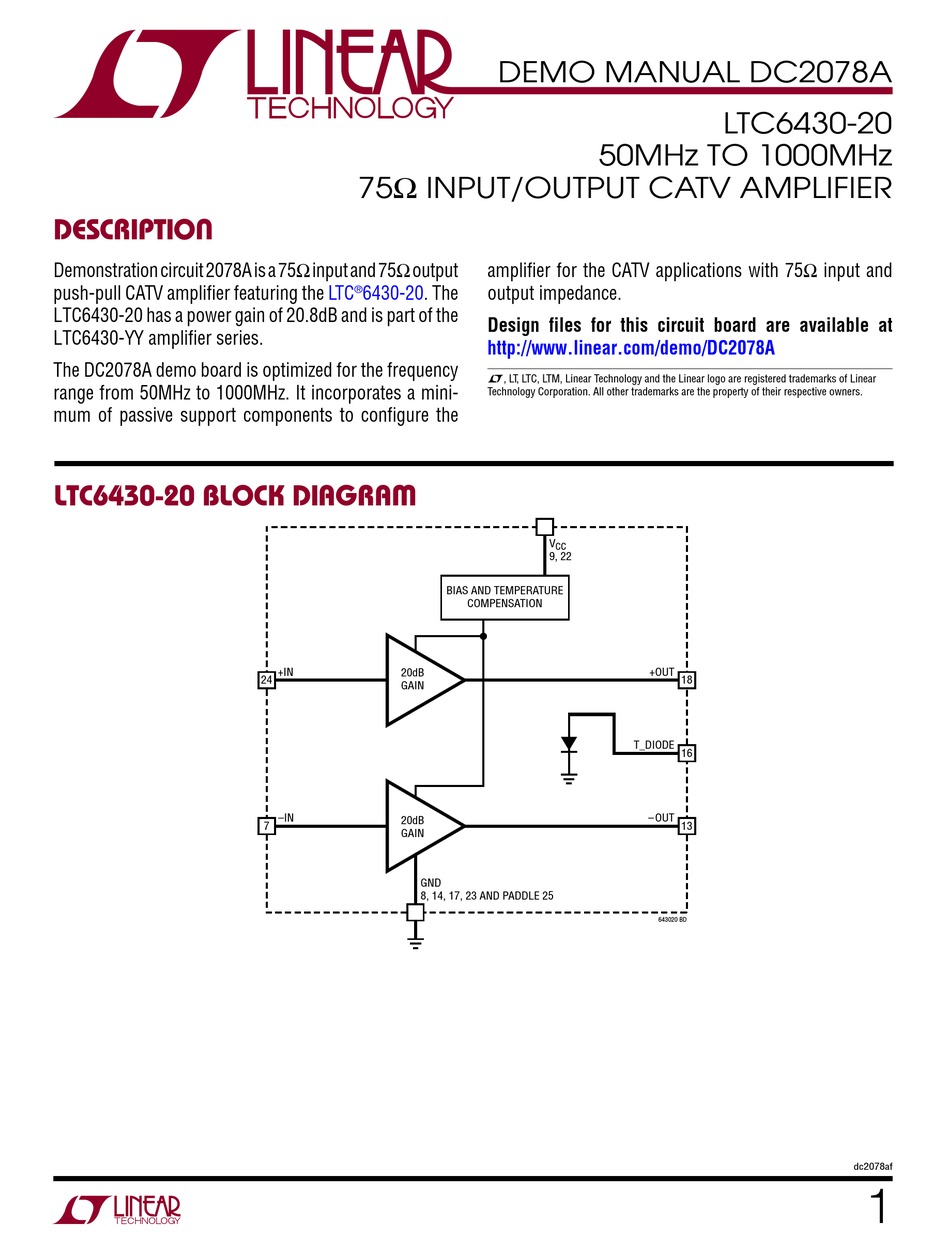

Linear Technology LTC6430-20 Demo Manual

50mhz to 1000mhz 75o input/output catv amplifier
Hide thumbs

Advertisement

Quick Links

Download this manual
DESCRIPTION
Demonstration circuit 2078A is a 75Ω input and 75Ω output
push-pull CATV amplifier featuring the
LTC6430-20 has a power gain of 20.8dB and is part of the
LTC6430-YY amplifier series.
The DC2078A demo board is optimized for the frequency
range from 50MHz to 1000MHz. It incorporates a mini-
mum of passive support components to configure the
LTC6430-20 BLOCK DIAGRAM
75Ω INPUT/OUTPUT CATV AMPLIFIER
LTC
6430-20. The
®
+IN
20dB
24
GAIN
–IN
20dB
7
GAIN
GND
8, 14, 17, 23 AND PADDLE 25
DEMO MANUAL DC2078A
50MHz TO 1000MHz
amplifier for the CATV applications with 75Ω input and
output impedance.
Design files for this circuit board are available at
http://www.linear.com/demo/DC2078A
L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear
Technology Corporation. All other trademarks are the property of their respective owners.
V
CC
9, 22
BIAS AND TEMPERATURE
COMPENSATION
LTC6430-20
+OUT
18
T_DIODE
16
–OUT
13
643020 BD
dc2078af
1
