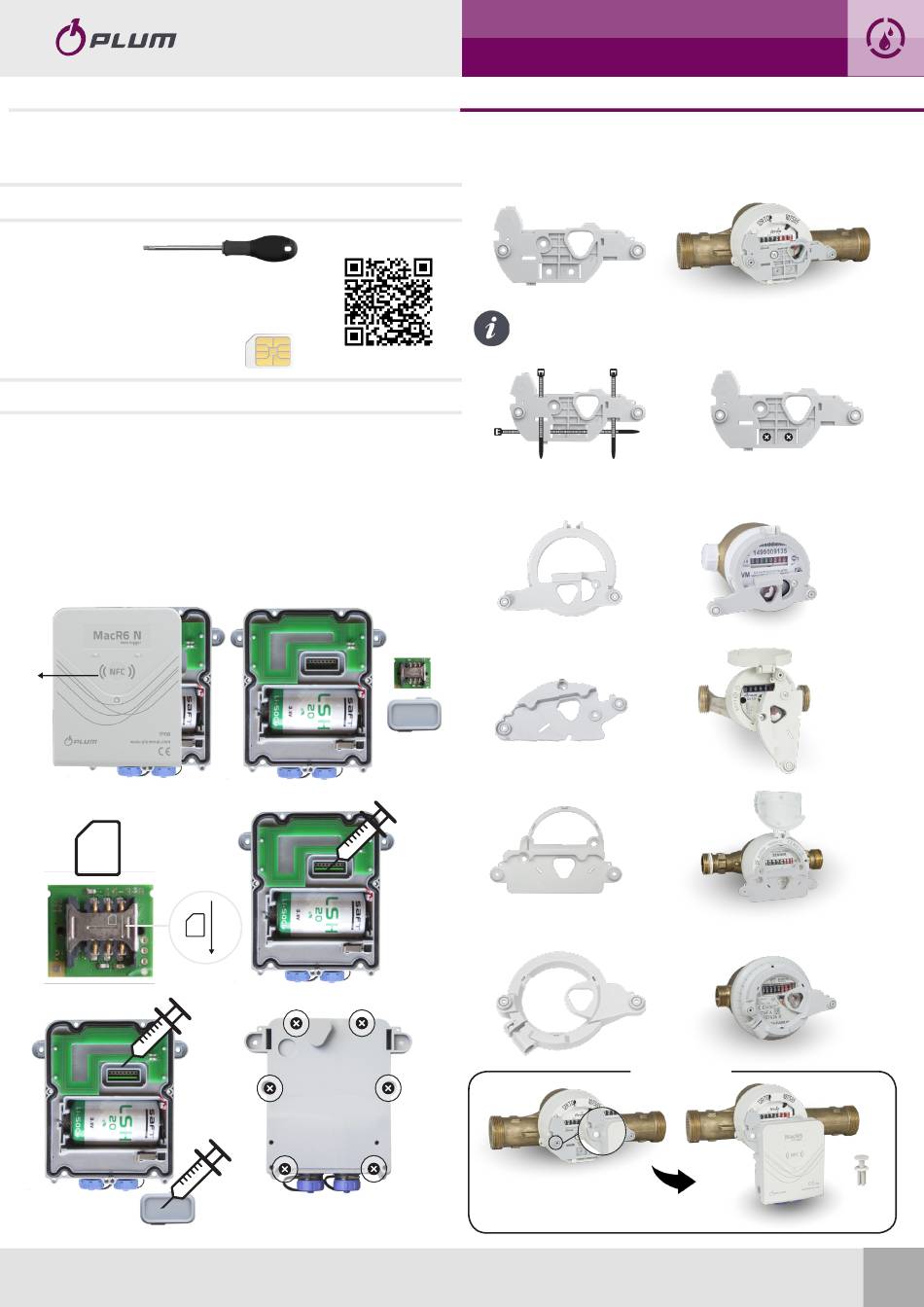

Plum MacR6 N Installation Manual

• 1 - Contents of package
• MacR6 N
• 6 Torx T10 M12 screws
• 2 plastic tack rivets
• 2 - Necessary accessories
• Torx T10 screwdriver
• Smartphone or tablet with NFC support
• Data Loggers Configurator NFC application
– QR code redirects to Google Play store
• MicroSIM card
• 3 - SIM card assembly and slot sealing
1. Open the front cover (fig. 3.1).
2. Open the SIM card cap, take out the SIM holder (fig. 3.2).
3. Install the SIM card according to fig. 3.3. Insert the SIM holder into the
slot.
4. Using the syringe, seal the surface of the SIM holder (see figure 3.4 and
3.5), being sure to fill the small plastic moat surrounding the SIM card
and holder.
5. Put the SIM card cap back on, covering the SIM card.
6. Put the front cover onto the device then close it with the included Torx
screws.
Fig. 3.1.
SIM
Fig. 3.3.
Fig. 3.5.
• H-type silicone gel in syringe
• Watermeter adapter kit
Fig. 3.2.
Fig. 3.4.
Fig. 3.6.
MacR6 N
installation manual
• 4 - Watermeter assembly
1. Select the adapter dedicated for the watermeter.
2. Install the adapter using the included screws.
3. Install the MacR6 N on the adapter using tack rivets (fig. 4.3.).
• ITRON
ITRON adapter is can be attached to a pipe using cable ties (fig. 4.1) or
to the wall using pegs (fig. 4.2).
Fig. 4.1.
• MADDALENA
• SENSUS
• ZENNER
• DIEHL
INSTALLATION
Fig. 4.3.
Fig. 4.2.
x2
1
