Onkyo AS-1E Assembly & Instruction Manual

AS-1E
• This instruction manual describes how to assemble and use the speaker stand and provides precautionary infor-
mation.
• Be sure to read this manual BEFORE you assemble the stand to ensure proper use of the product.
• Store this manual in a safe place for future reference to help extend the useful life of the product.
• Onkyo cannot guarantee product quality unless you follow the instructions in the manual to assemble the stand.

Precautions before unit assembly

• Have a Phillips screw driver (large or medium) avail-
able.
• Assemble the product on a carpet or mat so that the
floor and/or the stand will not become scratched or
damaged.
• Before starting assembly, make sure that you have all
the parts by referred to in the parts list and assembly
diagram.
• Be careful not to scratch the speaker when you install
the speaker on the speaker stand.

Dimensions

4-15/16"
11-5/16"
Product weight: 15.9 lbs (per unit)
Static live load capacity: 44 lbs or less;
–Assembly Instruction Manual–
Thank you for purchasing an Onkyo product!
16-1/4"
* Do not exceed this limit.

Package contents

• Spike
• Speaker affixing screw

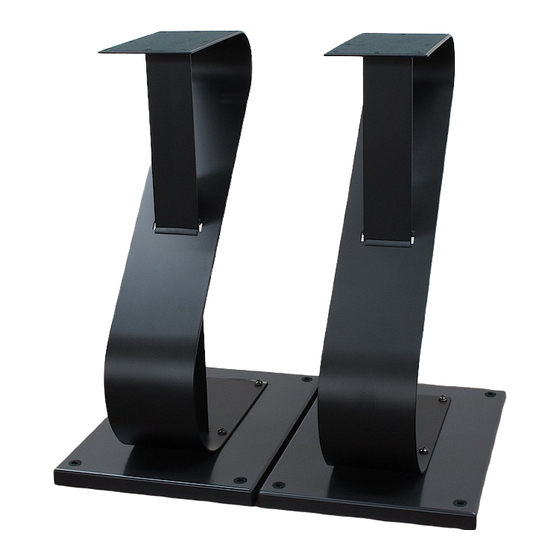

Finished assembly

* This illustration shows a single unit.
• Screws for additional
top panel
• Teflon washer
