Harvia HAR-5002-01 Owner's Manual

2 and 3 person infrared saunas
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

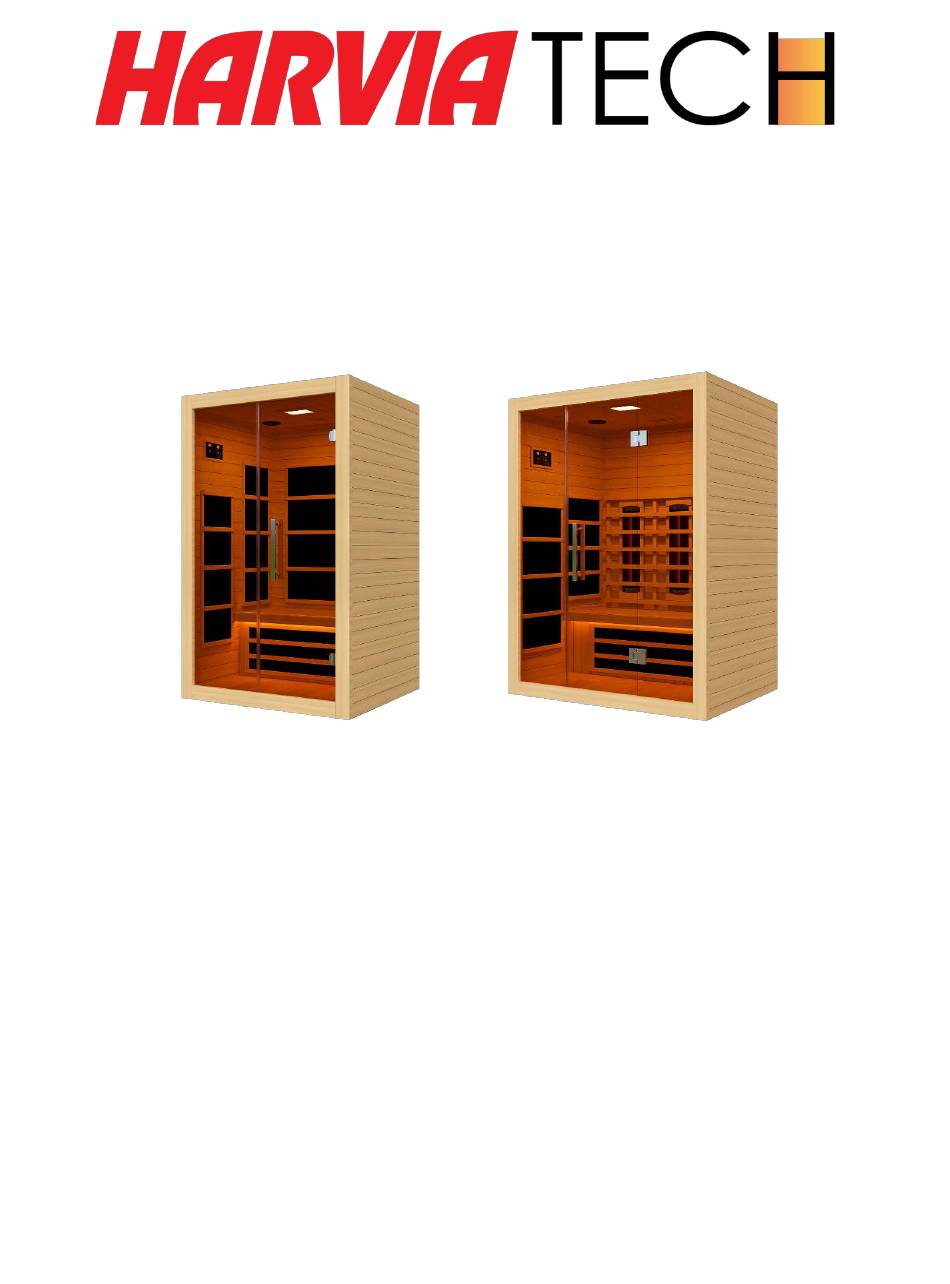

HAR-5002-01/HAR-5003-01/HAR-7002-01 FS/HAR-7003-01 FS
2 and 3 Person Infrared Saunas
Owner's Manual
CARBON MODEL SAUNA
SAUNA IS FOR INDOOR USE ONLY
120VAC 15AMP Dedicated Circuit Required
Carefully and thoroughly read this Owner's Manual before using/operating the
sauna. We recommend keeping this Owner's Manual for regular review and
future reference. Follow your local codes and ordinances.
1

Advertisement

Table of Contents
loading

Related Manuals for Harvia HAR-5002-01

Summary of Contents for Harvia HAR-5002-01

  • Page 1 HAR-5002-01/HAR-5003-01/HAR-7002-01 FS/HAR-7003-01 FS 2 and 3 Person Infrared Saunas Owner’s Manual CARBON MODEL SAUNA SAUNA IS FOR INDOOR USE ONLY 120VAC 15AMP Dedicated Circuit Required Carefully and thoroughly read this Owner’s Manual before using/operating the sauna. We recommend keeping this Owner’s Manual for regular review and...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Packing List Visual Assembly Diagrams Parts Description Highlights Assembly Instructions Operating the Sauna Tips for Using Your Sauna Safety Instructions Safeguards for Your Sauna Troubleshooting Guide Warranty Warranty Card WARNING: Visually inspect all heaters before assembly to make sure they are not damaged.
  • Page 3 What Are Infrared Rays? Infrared is the band of light we perceive as heat. We cannot see this band of light with the naked eye, but we can feel this type of light in the form of heat. Our sun produces most of its energy output in the infrared segment of the spectrum.
  • Page 4 3mG-5mG, and our Near Zero EMF/Full Spectrum models range at less than 3mG (NIR heaters range at about 5mG-7mG at the same approximate 2 inches) EMF Levels from Common Homes Sources After many years and numerous studies on EMF exposure, no government body including the Occupational Safety and Health Administration (OSHA) have established permissible exposure limits (PEL).
  • Page 5 HOW IT WORKS Infrared Saunas differ from traditional saunas in that they use infrared radiant energy to directly penetrate into the body's tissue to produce perspiration. Traditional saunas use steam to heat the air inside the sauna, which then heats your body until you begin to perspire.

  • Page 6: Visual Assembly Diagrams

    *PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY* Visual Assembly Diagram HAR-5002-01 (TY-6210) *THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN. PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO CHANGE.
  • Page 7 *PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY* Visual Assembly Diagram HAR-5003-01 (TY-6310) *THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN. PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO CHANGE.
  • Page 8 *PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY* Visual Assembly Diagram HAR-7002-01 FS (TY-6210) *THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN. PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO CHANGE.
  • Page 9 *PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY* Visual Assembly Diagram HAR-7003-01 FS (TY-6310) *THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN. PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO CHANGE.

  • Page 10: Parts Description

    *PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY* PARTS DESCRIPTION HAR-5002-01 (TY-6210) *THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN. PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO CHANGE.
  • Page 11 *PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY* PARTS DESCRIPTION HAR-5003-01 (TY-6310) *THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN. PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO CHANGE.
  • Page 12 *PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY* PARTS DESCRIPTION HAR-7002-01 FS (TY-6210) *THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN. PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO CHANGE.
  • Page 13 *PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY* PARTS DESCRIPTION HAR-7003-01 FS (TY-6310) *THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN. PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO CHANGE.

  • Page 14: Highlights

    Highlights A. High quality craftsmanship B. Temperature control C. Timer D. Infrared carbon heat emitter panels E. Control Panel: F. Power supply: G. MP3 Jack: H. Buckles:...
  • Page 15 Guide and Guide Inserts The guide and guide inserts are used to connect the wall panels to one another. (see Figure 3) Figure 3 Panel Descriptions For easier assembly, please understand and distinguish the differences between each panel. Floor Panel When the FLOOR PANEL faces upward, the surface will be flat.

  • Page 16: Assembly Instructions

    Understanding the Difference Between the Inside and Outside of the Rear Panel You will find the Warning Labels on the inside of the wall panels. (see Figure 5) Assembly Instructions 1. Choose a good location to assembly the sauna The location must be dry, level, and away from any source of water. The dedicated outlet must be easily accessible.
  • Page 17 guide and guide insert brackets are engaged, the RIGHT SIDE PANEL will need to be pulled downward until the top of both wall panels is flush. The same will need to be done to install the LEFT SIDE PANEL. Please see Figure 7.
  • Page 18 Figure 8 5. Installing the BENCH HEAT EMITTER PANEL and BENCH A. First, locate the HT1 cord from the Power Supply Box on the REAR PANEL. The HT1 cord will need to be plugged into the RIGHT SIDE PANEL at the outlet towards the interior bottom of the wall panel.
  • Page 19 Figure 10 7. Installing the ROOF PANEL A. The side of the ROOF PANEL with the power supply (control box) is the top of the roof panel and the side of the ROOF PANEL with the ceiling vent will be situated towards the rear of the sauna. B.
  • Page 20 Figure 12 9. Installing the TEMPERATURE SENSOR A. Enter the sauna and remove the protective covering (white tape) from the TEMPERATURE SENSOR. Situate the TEMPERATURE SENSOR so that it is vertical and pointing downward. (see Figure 13) Figure 13 Please Note: Some sauna models are shipped with a spare TEMPERATURE SENSOR (inside the Accessory Box) in the case that the TEMPERATURE SENSOR is damaged during transit.
  • Page 21 11. Installing the SHELF (sauna may or may not have this option) A. If your sauna comes with the optional MP3 shelf, magazine rack, cup holder shelf, or towel rack, use the provided screws and mount according to designated labeled locations. The optional backrest can lean directly up against the heat emitter panels.

  • Page 22: Operating The Sauna

    Operating the Sauna NOTE: Before the sauna is turned on, remove plastic protective covering from the CONTROL PANELS. Please check and confirm that the connections to the POWER SUPPLY, HEAT EMITTERS, CD/RADIO, and TEMPERATURE SENSOR are connected properly. The power supply voltage and frequency must match the requested voltage and frequency of the sauna (120VAC 15AMP Dedicated Circuit for 2-person models or 120VAC 20AMP Dedicated Circuit for 3-person models).
  • Page 23 pressed for three seconds, the setting will increase quickly. Decrease the temperature in the same manner by pressing the button. After the sauna reaches the desired temperature, the “Heat” light will turn off. d. Press the button to turn the light ON. If you want to use the Color Light Therapy System: 1.
  • Page 24 Please Note: On average, it takes our model saunas approximately: *20 minutes to reach into 100 degrees Fahrenheit/38 degrees Celsius (with a Starting temperature above 70 degrees Fahrenheit/21 degrees Celsius) *25-30 mins to reach about 115-120 degrees Fahrenheit/46-49 degrees Celsius (depending on sauna model) *35-40 minutes to reach about 125-130 degrees Fahrenheit/52-54 degrees Celsius (depending on sauna model)

  • Page 25: Tips For Using Your Sauna

    Tips for using Your Sauna 1. If you take a hot/warm shower or bath before using your sauna, you may perspire more and experience more comfort. 2. Drink water prior to, during, and after your sauna session to replenish body fluids. 3.
  • Page 26 minutes to allow the body to cool down completely. 5. Pregnant or possibly pregnant women should contact their medical physician prior to using the sauna. Excessive temperatures have a high potential for causing fetal harm during pregnancy. 6. Hyperthermia Danger: The normal body temperature can’t rise above 103°F (39°C).

  • Page 27: Safeguards For Your Sauna

    or its agent. If a problem occurs with the sauna, please contact the manufacturer or its agent immediately to avoid safety risks. Unauthorized repair attempts will void the manufacturer’s warranty. 20. Please make sure the outlet power supply meets the specifications required. Failure to meet the requirements may cause safety risks.
  • Page 28 Troubleshooting Issue Possible Reason Solution indicator light for power The connector is not connected Check the connector or replace a supply not working properly new one No power supply input Check your circuit breaker to confirm power at the wall outlet Indicator light is broken replace the circuit panel Indicator light for...
  • Page 29 The power indicator light for radio Turn on the switch to start work is off Radio Player doesn’t Power connector is loose or Disconnect and reconnect the work damage connection DC power supply has no power Check DC power supply wiring to the radio player or replace the power supply Radio player is defective...
  • Page 30 Limited Lifetime Warranty 5 Year Limited Warranty: Golden Designs, Inc. under its brand names warranties the wood, structure, heating elements, and electronics against defects in material and workmanship for a period of 1 to 5 years from the original date of purchase. This sauna is for INDOOR use only.

  • Page 31: Warranty

    Surface cracks are not considered defects in material or workmanship, as they are normal characteristics of all woods. This includes minor cracks due to wood expansion and contraction. Note: Since the wood used in construction has been kiln dried, a certain amount of expansion and contraction occurs in the wood in a sauna environment.
  • Page 32 PAGE INTENTIONALLY LEFT BLANK...

  • Page 33: Warranty Card

    WARRANTY CARD Congratulations on your purchase of an Infrared Sauna from Golden Designs, Inc. Please take the time to complete the following Warranty Card and mail it back to: Golden Designs, Inc. 3550 Jurupa Street, Unit B Ontario, CA 91761 Please include a copy of your sales receipt showing date of purchase as this will serve as proof of purchase.
