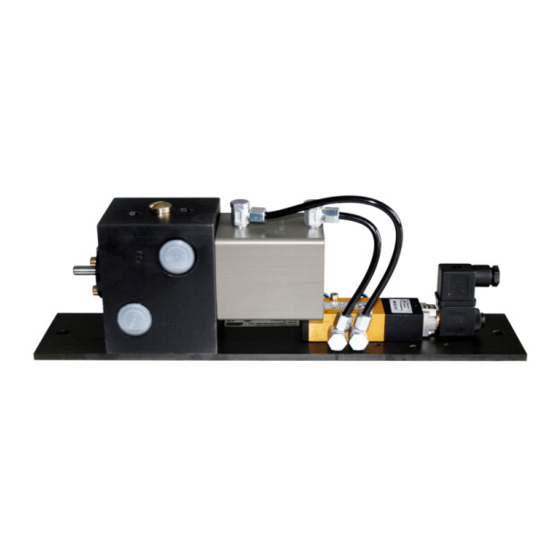

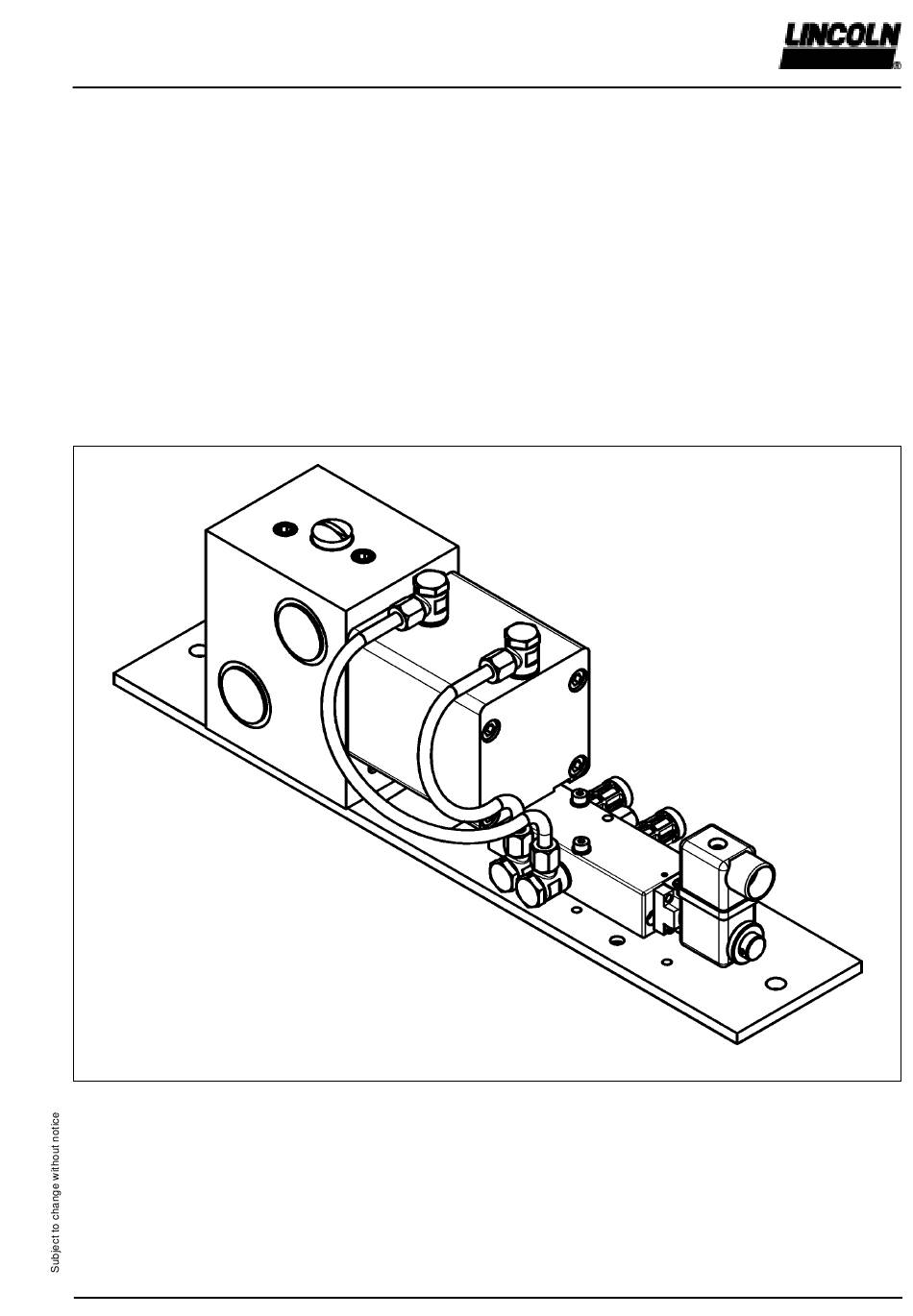

- Page 1 Owner Manual Operating Instructions 1.3A-48001-B02 Pneumatically Operated Change-Over Valve Model MP2 and Pneumatically Operated Way Valve Model WS-P2 4421a02 Page 1 of 8 LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
- Page 2 Owner Manual, please contact us (see address on bottom of the page). 1029c95 Fig. 1: MP2 used as a change-over valve for two-line systems Page 2 of 8 LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
- Page 3 * Reduce the system pressure to zero * Risk of lubricant splashing off Page 3 of 8 LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
- Page 4 MP2-110AC/50-60Hz change-over v. 110V, 50/60 Hz 618-28964-2 MP2-110VDC change-over valve 110V DC 618-28963-1 MP2-220AC change-over valve 220V, 50/60 Hz 618-28966-2 Page 4 of 8 LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
- Page 5 525-31499-2 normally open WS-P2-A20-24/00 4426a02 4/2 way slide valve 625-26434-3 525-31499-2 normally closed WS-P2-A2G-24/00 WS-P2-A2G-220/50 625-26037-3 525-31499-2 4427a02 Page 5 of 8 LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
- Page 6 5/2 way solenoid valve 24VDC 1 253-14071-5 220VAC 1 253-14071-6 110VAC 1 253-14058-2 110VDC 1 253-14072-6 Muffler U1/8 253-14055-1 Page 6 of 8 LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
- Page 7 M 6x90 201-10010-2 Set of sealing rings 518-31019-1 consisting of items 3, 5, 6, 10 blocked with Loctite 270 Page 7 of 8 LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
- Page 8 Safety of machinery Electric equipment of machines Part 1: General requirements Walldorf, May 17, 2000 , Dr. Ing. Z. Paluncic Page 8 of 8 LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
