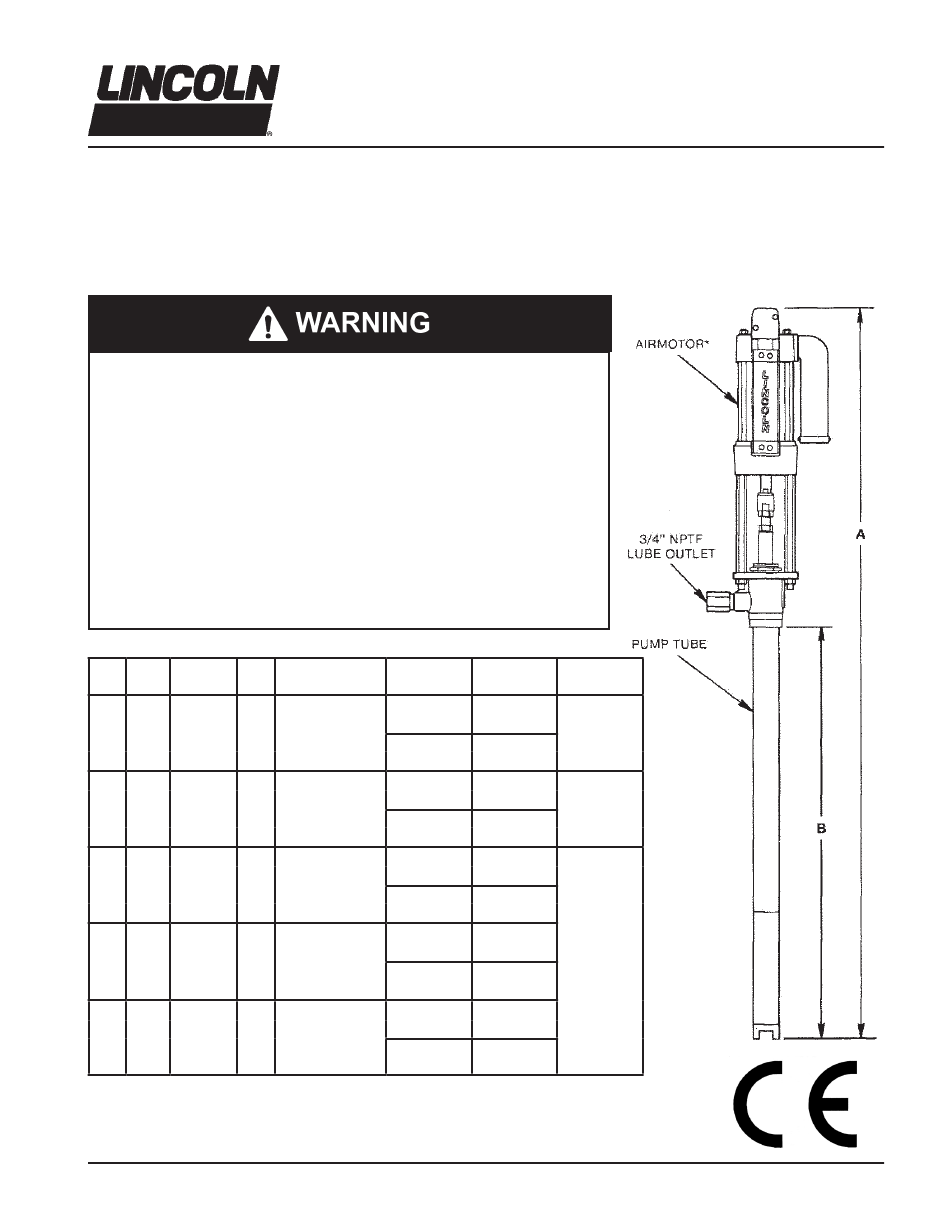

Lincoln POWER-MASTER III 84981 Owner's/Operator's Manual

It is the responsibility of the Owner/Operator to properly use and maintain this equipment.
The Instructions and Warnings contained in this manual shall be read and understood by the Owner/Operator prior to operating
this equipment
It is the responsibility of the Owner/Operator to maintain the legibility of all Warning and Instruction labels
The Owner/Operator shall retain this manual for future reference to important Warnings, Operating and Maintenance
Instructions.
DO NOT operate these pumps with 10" airmotor.
DO NOT exceed the stated maximum working pressure of the airmotor or the
lowest rated component in your system.
DO NOT alter or modify any part of this equipment.
DO NOT operate this equipment with combustible gas.
DO NOT attempt to repair or disassemble the equipment while the system is
pressurized.
TIGHTEN all fluid connections securely before using this equipment.
ALWAYS read and follow the fluid manufacturer's recommendations regarding
fluid compatibility, and the use of protective clothing and equipment.
CHECK all equipment regularly and repair or replace worn or damaged parts
immediately.
IMPORTANT: Failure to heed these warnings including misuse, over pressur-
izing, modifying parts, using incompatible chemicals and fluids, or using worn or
damaged parts, may result in equipment damage and/or serious personal injury,
fire, explosion, or property damage.
PUMP PUMP
TUBE MODEL AIRMOTOR* RATIO
2061 84808 42:1
2021 84806 24:1
84985 2001 84804 12:1
2052 84803 6:1
2065 84808 42:1
2025 84806 24:1
84984 2005 84804 12:1
2055 84803 6:1
2061-7 84808 42:1
2021-7 84806 24:1
84983 2001-7 84804 12:1
2052-7 84803 6:1
2061-8 84808 42:1
2021-8 84806 24:1
84982 2001-8 84804 12:1
2052 -8 84803 6:1
2061-9 84808 42:1
2021-9 84806 24:1
84981 2001-9 84804 12:1
2052-9 84803 6:1
* Refer to Airmotor Owner/Operator Manual, Section AS Page 78.
© Indicates change
MAY - 2007
To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com
Models 84981, 84982, 84983, 84984, 84985
OWNER/OPERATOR MANUAL
MODEL CHART
MAXIMUM DELIVERY MAXIMUM AIR DIMENSION "A" DIMENSION "B"
PRESSURE PRESSURE
4200 psi (294 bar) 100 psi (7 bar)
2400 psi (168 bar)
2400 psi (168 bar) 200 psi (14 bar)
1200 psi (84 bar)
4200 psi (294 bar) 100 psi (7 bar)
2400 psi (168 bar)
2400 psi (168 bar) 200 psi (14 bar)
1200 psi (84 bar)
4200 psi (294 bar) 100 psi (7 bar)
2400 psi (168 bar)
2400 psi (168 bar) 200 psi (14 bar)
1200 psi (84 bar)
4200 psi (294 bar) 100 psi (7 bar)
2400 psi (168 bar)
2400 psi (168 bar) 200 psi (14 bar)
1200 psi (84 bar)
4200 psi (294 bar) 100 psi (7 bar)
2400 psi (168 bar)
2400 psi (168 bar) 200 psi (14 bar)
1200 psi (84 bar)
Form 403663
POWER-MASTER III DRUM PUMPS
in. (cm.) in. (cm.)
60 (152.4)
34 (86.4)
60-7/8 (154.6)
53-3/8 (135.6)
273/8 (69.5)
54-1 /4 (137.8)
60 (152.4)
60-7/8 (154.6)
60 (152.4)
34 (86.4)
60-7/8 (154.6)
60 (152.4)
60-7/8 (154.6)
Section
Ball Type Foot Valve
©
- 80A
- A50
Page
