Systems which will be dispensing fluids under pressure may
need to be protected by using a thermal relief kit, which will
safely limit the pressures caused by thermal expansion.
Please contact your local Lincoln distributor and refer to
Service Page Section K5, Page 31 for more details. Failure
to include thermal relief protection may cause damage not
covered under Lincoln's warranty policy.
Before meter can be placed in service "After Repair", meter
must be tested and approved in accordance with U.S.
Government's Weight and Measurements Standards
New metering systems must be purged prior to
installation of metering control valve to free system of
contaminates.
IMPORTANT NOTE:
The automatic nozzle requires 60 PSI to open and function
properly. A pump exceeding 60 psi is required for adequate
flow and proper operation. A pump ratio of at least 3:1 is
recommended.
OPERATION
The meter can handle petroleum products such as automatic
transmission fluid, S.A.E 5 to 50 weight motor oil, S.A.E. 80 to
240 weight gear oil and antifreeze (ethylene glycol).
The meter can be locked in the on position by engaging the
trigger lock, to release the lock, the trigger must be depressed
thus released the lock. Before each use, reset the meter by
rotating the indicator knob counterclockwise to zero.
MAR - 2012
68410

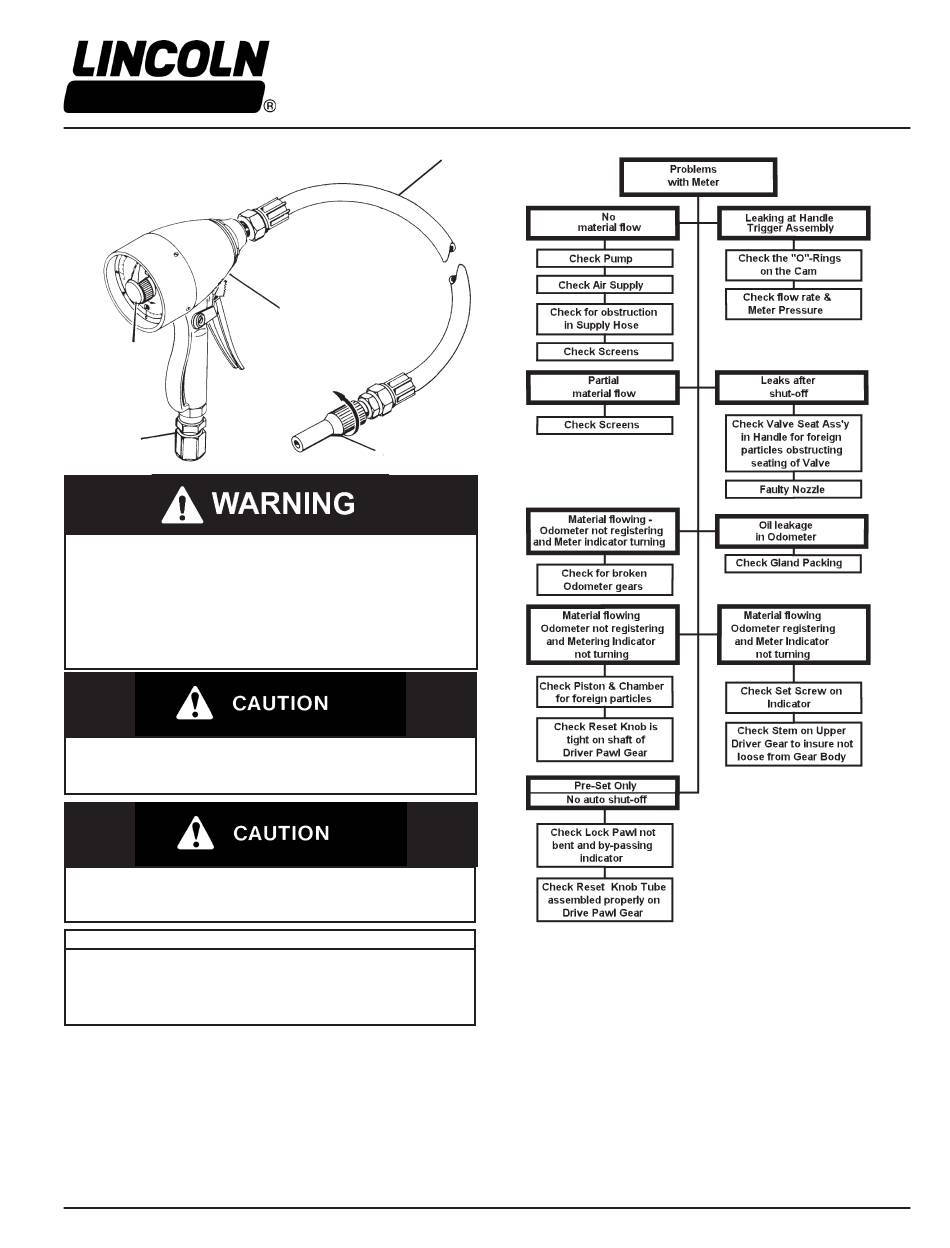

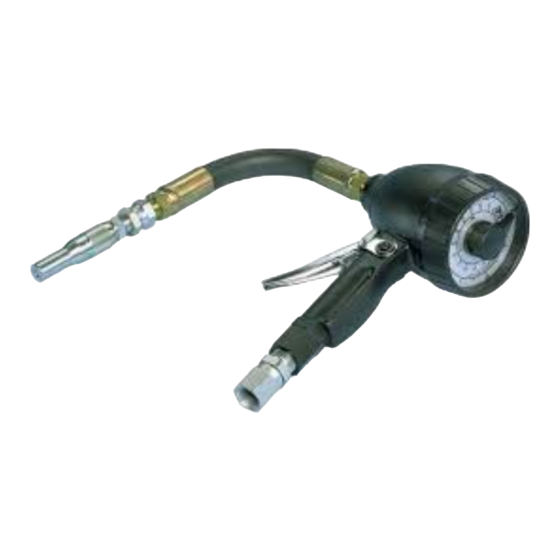

BASIC METER
TURN TO OPEN
NOZZLE
84799 NOZZLE
(NON-DRIP)
HOSE
236874
SPECIFICATIONS:
Dial Capacity
Totalizer
Flow Max.
Flow Min.
Operating Pressure Max. 1000 PSI (70 Bar)
Operating Temp. Max.
Accuracy
Weight
Meter Inlet & Outlet Thds 1/2 NPTF
© Indicates change
Form 404121
MODEL 883
Metering Control Valve
Series "A"
4 Quarts - 16 Quarts
Quarts
4 Gal. per min. (15 liters per min.)
0.4 Gals per min. (1.5 liters per min).
110°F (45°C)
+/- 0.65%
3.3 Lbs. (1.5 Kg)
- F22
