For use with Electric FlowMaster™ Pumps on
Drum Covers 85474 (120 lb.) and 85475 (400 lb.)
© Indicates change
JAN - 2007

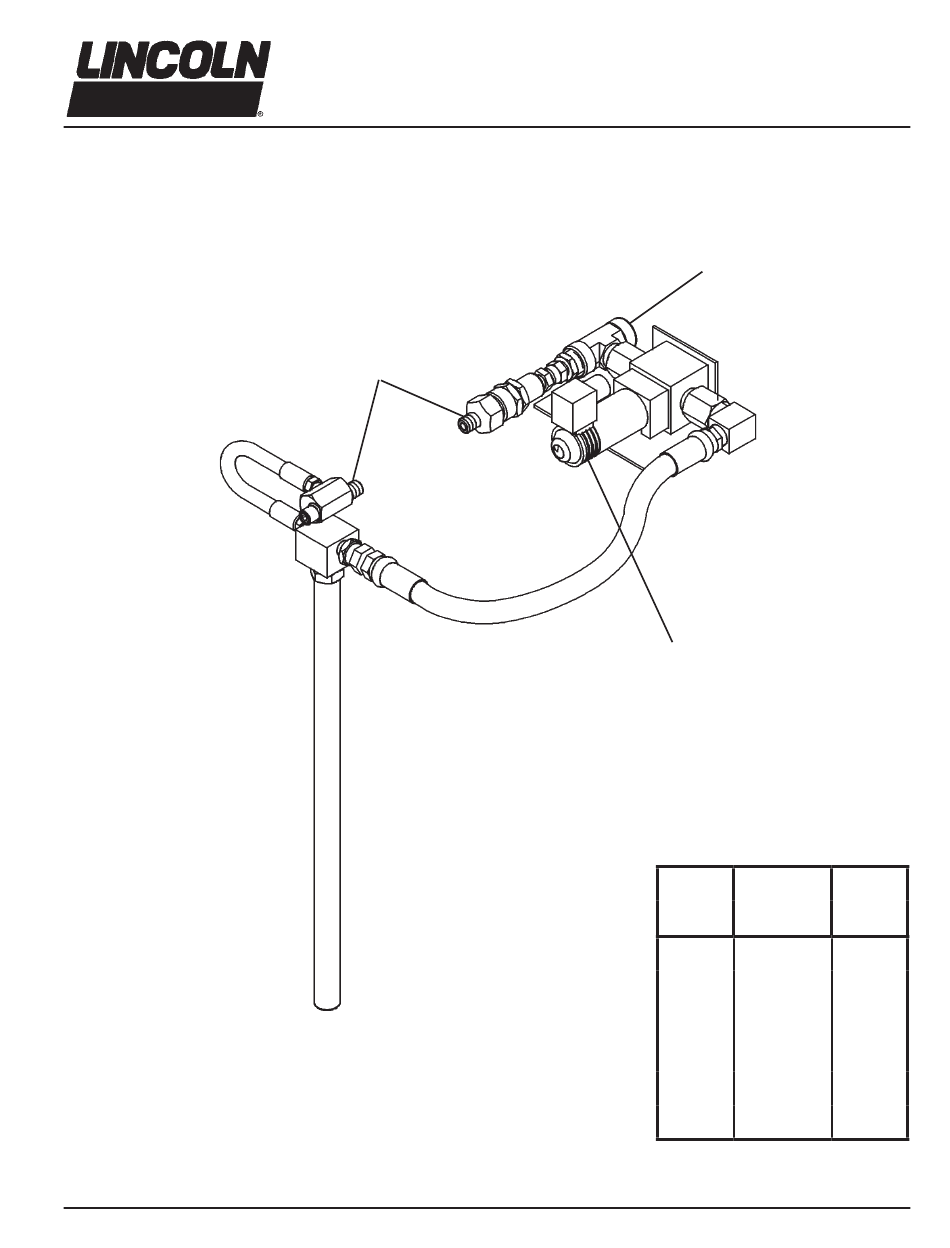

ELECTRIC VENT VALVE ASSEMBLIES
1/4 NPTF
Form 403987
Models 85660, 85661, 85662,
85663, 85664 & 85665©
1/2 NPTF
Lube Outlet
2-way normally open solenoid valve
to be wired in parallel with motor on
Electric FlowMaster™ Pump (See Pump
Manual for Wiring Diagram)
Model Chart
Model Power
85660 230 VAC 120 lb.
85661 230 VAC 400 lb.
85662 120 VAC 120 lb.
85663 120 VAC 400 lb.
85664 24 VDC 120 lb.
85665 24 VDC 400 lb.
- C8
Section
Drum
Source
Size
- 302B
Page
Advertisement
Table of Contents
Related Manuals for Lincoln 85660
Summary of Contents for Lincoln 85660
- Page 1 Manual for Wiring Diagram) Model Chart Model Power Drum Source Size 85660 230 VAC 120 lb. 85661 230 VAC 400 lb. 85662 120 VAC 120 lb. 85663 120 VAC 400 lb. 85664 24 VDC 120 lb. 85665 24 VDC 400 lb.
- Page 2 Models 85660, 85661, 85662, 85663, 85664 & 85665 ELECTRIC VENT VALVE ASSEMBLIES MODELS 85660, 85662 & 85664 for 120 Lb. Drums ASSEMBLY INSTRUCTIONS Fasten pump to drum cover. Assemble Adapter (Item 8), Check Assembly (Item 9) and Adapter Union (Item 10) together. Fasten assembly into pump outlet.
- Page 3 Models 85660, 85661, 85662, 85663, 85664 & 85665 ELECTRIC VENT VALVE ASSEMBLIES MODELS 85661, 85663 & 85665© for 400 Lb. Drums ASSEMBLY INSTRUCTIONS Fasten pump to drum cover. Assemble Adapter (Item 8), Check Assembly (Item 9) and Adapter Union (Item 10) together. Fasten assembly into pump outlet.
- Page 4 Models 85660, 85661, 85662, 85663, 85664 & 85665 ELECTRIC VENT VALVE ASSEMBLIES Service Parts Item Description Qty. Part No. Safety Unloader 272722 Hose Assembly 272711 Vent Fitting 272717 Hose Assembly 270726 Gasket 31010 12538 Vent Tube See Below Adapter 12213...
