Alcatel One Touch Link 4G Y858 Quick Start Guide

Safety and use

We recommend that you read this chapter carefully before using this device. The manufacturer disclaims any liability for damage, which may result as a consequence of improper use of this device or of use contrary to the instructions contained herein.

	Do not switch on your device when its use is prohibited or when using the device may cause interference or danger.
	Follow rules or regulations in hospitals and health care facilities. Switch off your device near medical apparatus.
	Switch off your device in an aircraft. The device may cause interference to aircraft control signals.
	Switch off your device near high-precision electronic devices. The device may affect the performance of these devices.
	Do not attempt to disassemble your device or its accessories. Only qualified personnel are allowed to service or repair the device.
	Do not place your device or its accessories in containers with a strong electromagnetic field.
	Do not place magnetic storage media near your device. Radiation from the device may erase the information stored on them.
	Do not subject your device to high temperatures or use it in a place with flammable gas such as a petrol station.
	Keep your device and its accessories away from children. Do not allow children to use your device without guidance.
	Only use approved batteries and chargers to avoid the risk of explosion.
	Observe the laws or regulations on device use. Respect others' privacy and legal rights when using your device.

It is recommended that the equipment only be used in an environment where the temperature is between -10°C and 50°C and humidity is between 10% to 90%.

CHARGERS

Mains powered chargers will operate within the temperature range of: 0°C to 40°C.
The chargers designed for your device meet with the standard for safety of information technology equipment and office equipment use.
They are also compliant to the ecodesign directive 2009/125/EC. Due to different applicable electrical specifications, a charger you purchased in one jurisdiction may not work in another jurisdiction. They should be used for this purpose only.

Overview

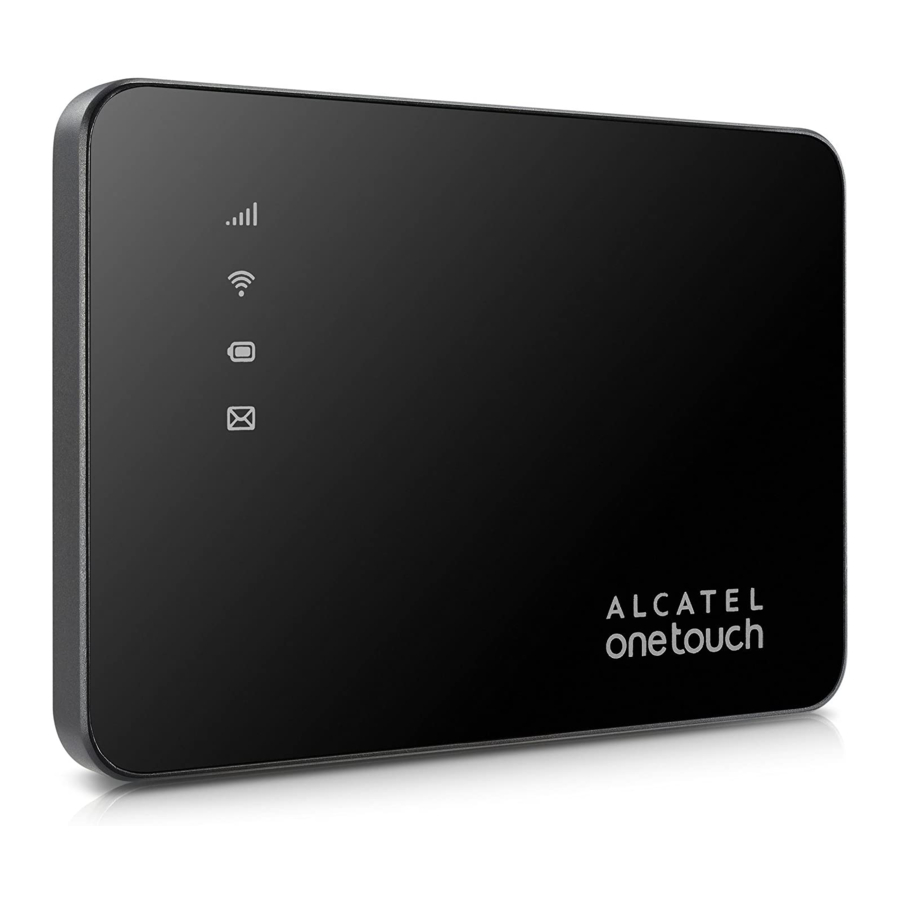

Y858 is a portable wireless router, providing a simple way to share 4G with any Wi-Fi embedded device.

Package contents

Application

Device overview

Number	Description
	Power on/off Key
	WPS Key
	LED light
	Micro USB Interface

Use the device's 2 buttons as follows:

Button	Description
Power On/Off	Long press to turn on/off the device
	Short press to put the LED in either active or sleep mode.
WPS	Long press to turn on WPS
	Short press to put the LED in either active or sleep mode

Turning on the device

1. Open back cover from Bottom of right corner, then take out battery and put SIM card as remark.

2. Long Press the Power On/Off button.

LED Display

The LED display is interpreted as follows:

LED description:

Driver Installation

1. Power on router and connect router to client end (PC/ Tablet etc.), autorun driver will pop out automatically, click "Install". If no antorun, please go to Computer > removable storage device to find Web Connection driver as blew.

2. Double click "Web Connceiton", go to "autorun" exe. file and click it to install.
3. Installation process as below.
4. Desktop Icon will be generated after Installation finish.


Connecting in Wi-Fi mode

SSID: locate the SSID information on the sticker on Back Cover.

1. Use the Wi-Fi manager on the Wi-Fi embedded device to select network name (SSID).

• From a Windows PC: Right-click Wireless network connection on the task bar, and select: View Available Networks.
  Choose SSID from the list of available networks.
• From a Mac computer: Select System Preferences -> Network -> Airport. Click "Advanced" to choose SSID from the list of available networks.
• From an iOS device: Settings -> Wi-Fi. Choose SSID from the available networks.
• From an android device: Settings -> Wireless controls -> Wi-Fi settings. Choose SSID from the available networks.

2. Enter the Wi-Fi key when prompted for a security key.

Quick Setup

Open your browser, and input the address http://192.168.1.1 to access the login page.

Default login password: admin

Login and click "Setting" to configure the basic settings.

Admin Password:

• Login Password: Set the password for login.

Wi-Fi Settings:

• SSID: Set the network name of this device.
• Security: Configure the security mode for Wi-Fi connection.

Charging the device

You have two ways to charge your device.

Wall Charger charging

Connect USB cable with Charger head and device, then charging begin.
When the device is powered off, charging will take a maximum of 3 hours.

USB Charger charging

You can also charge the device by connecting it to a PC with the USB cable.
When the device is powered off, charging will take a maximum of 4 hours.
Note: In order to protect the battery, when low power LED indicator flash, please charge the device.

Certification

WEEE Approval

This device is in compliance with the essential requirements and other relevant provisions of the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE Directive).

This symbol on device means that these products must be taken to collection points at the end of their life:

• Municipal waste disposal centres with specific bins for these items of equipment.
• Collection bins at points of sale.

They will then be recycled, preventing substances being disposed of in the environment, so that their components can be reused.

In European Union countries:
These collection points are accessible free of charge.
All products with this sign must be brought to these collection points.

In non European Union jurisdictions:
Items of equipment with this symbol are not to be thrown into ordinary bins if your jurisdiction or your region has suitable recycling and collection facilities; instead they are to be taken to collection points for them to be recycled.

RoHs Approval

This device is in compliance with the restriction of the use of certain hazardous substances in electrical and electronic equipment Directive 2011/65/EC (RoHs Directive).

Warranty

The device is warranted against any deviation from technical specifications for a period of twelve (12) ⁽¹⁾ months from the date specified on your original invoice.

Under the terms of this warranty, you must immediately inform your vendor in case of a conformity defect on this device, and present a proof of purchase.

⁽¹⁾ The warranty period may vary depending on your country.

Alcatel is a trademark of Alcatel-Lucent used under license by TCL Communication LTD.
All rights reserved © 2014-2016 TCL Communication LTD.
Address: Room 1910-12A, Tower 3, China HK City, 33
Canton Road, Tsimshatsui, Kowloon, Hong Kong

LINK APP

Freely download the App that helps you remotely control LINK mobile WiFi

Android version

iOS version

1. Make sure your device is connected to the Net
2. Scan the QR Code
3. Download the LINK APP from App Store
4. Click on LINK APP icon to log on to the management page

Alcatel name is a trademark of Alcatel-Lucent used under license by TCL Communication Ltd.
Onetouch is a trademark or registered trademark of TCL Communication Ltd.
App Store is a trademarks of Apple Inc.
Google Play is a trademark of Google Inc.

www.alcatelonetouch.com
