Alcatel LINKHUB HH42CV User Manual

Lte cat4 home station
Hide thumbs
Table of Contents

Advertisement

Quick Links

User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LINKHUB HH42CV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alcatel LINKHUB HH42CV

Summary of Contents for Alcatel LINKHUB HH42CV

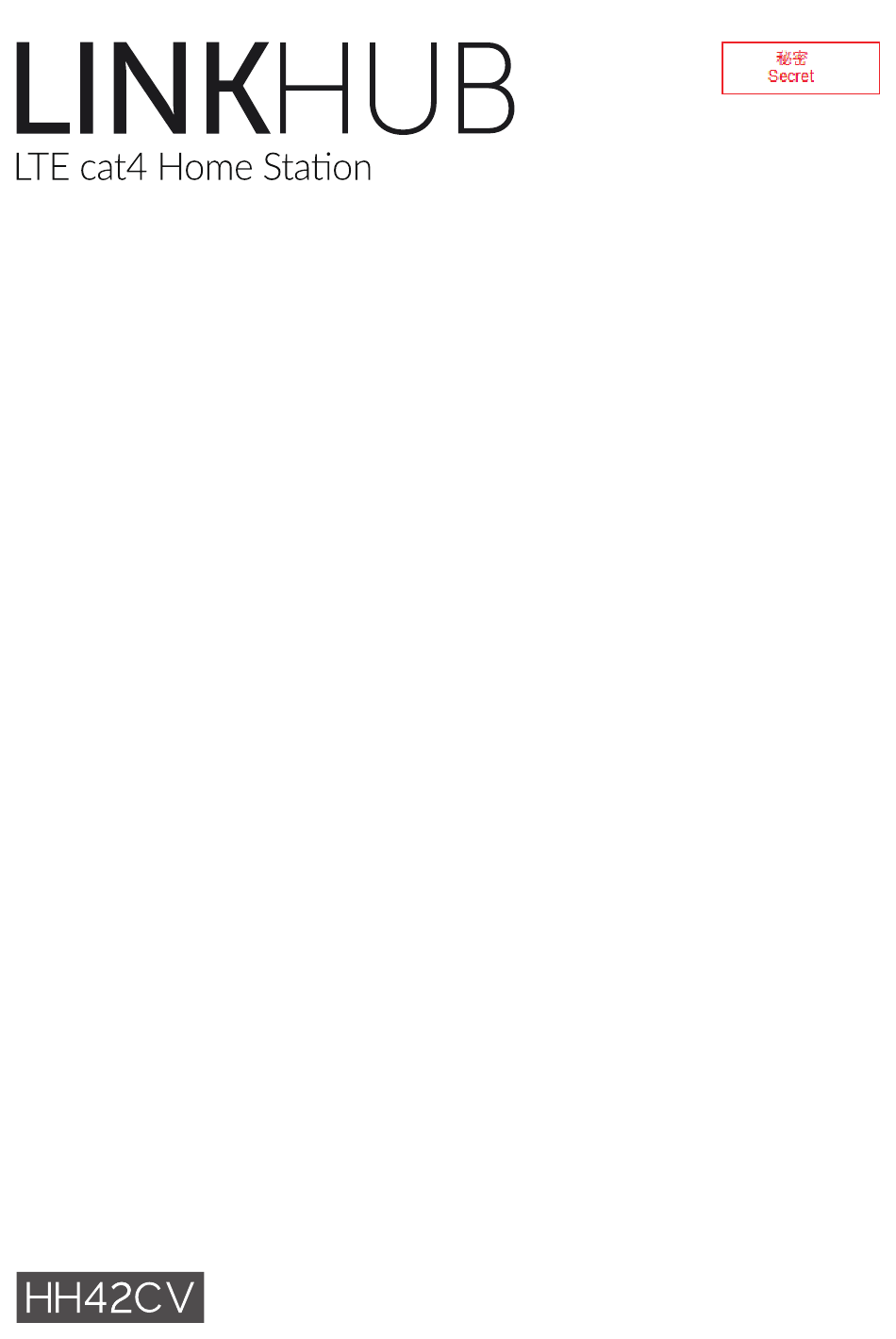

  • Page 1 User Manual...

  • Page 2: Table Of Contents

    Table of contents Safety and use ........................1 1. Overview ........................6 System requirements ..................6 Device description ...................6 2.. Getting.started.with.your.device ................7 Insert SIM ......................7 Connect the power adapter ................8 Optional: Installing the external antennae ..........9 How to connect in Wi-Fi mode ..............10 3..

  • Page 3: Safety And Use

    Safety and use We recommend that you read this chapter carefully before using your device. The manufacturer disclaims any liability for damage, which may result as a consequence of improper use or use contrary to the instructions contained herein. CONDITIONS.OF.USE: Switch the device off before boarding an aircraft.
  • Page 4 - Municipal waste disposal centres with specific bins for these items of equipment; - Collection bins at points of sale. They will then be recycled, preventing substances being disposed of in the environment, so that their components can be reused. In.European.Union.countries: These collection points are accessible free of charge.
  • Page 5 Radio.waves Proof of compliance with international standards (ICNIRP) or with European Directive 2014/53/EU (RED) is required of all device models before they can be put on the market. The protection of the health and safety for the user and any other person is an essential requirement of these standards or this directive.
  • Page 6 802.11b/g/n 2.4GHz: 18.09 dBm Regulatory.information Hereby, TCL Communication Ltd. declares that the radio equipment type Alcatel HH42CV is in compliance with Directive 2014/53/EU. Additional.information The full text of the EU declaration of conformity is available at the following internet address: http:/ /www.alcatelmobile.com/EU_doc...
  • Page 7 Disclaimer There may be certain differences between the user manual description and the device’s operation, depending on the software release of your device or specific operator services. TCL Communication Ltd. shall not be held legally responsible for such differences, if any, nor for their potential consequences. This device may contain materials, including applications and software in executable or source code form, which is submitted by third parties for inclusion in this device ("Third Party Materials").

  • Page 8: Overview

    1. Overview This device allows you to share a secure mobile broadband internet connection using Wi-Fi or an ethernet cable. Wi-Fi enabled devices (PCs, smartphones, tablets, gaming devices, etc.) can access the internet by connecting to the Cat4 Router. To get the best signal, the ideal place for your device will be near a window.

  • Page 9: Getting.started.with.your.device

    Reset.button Use a paperclip or blunt pin to gently press and hold the reset button for 3 seconds. All LEDs will turn on, then off, and finally turn on again once the reset is completed. You can also reset the device via the Web-UI. LED.description Icon Description...

  • Page 10: Connect The Power Adapter

    Do not remove the SIM when your Cat4 Router is in use. Doing so will affect the performance of your device, and data stored on the SIM may be lost. 2.2 Connect.the.power.adapter Follow the illustration below to plug in the power adapter. To prevent interference caused by radio signals, place the Cat4 Router at least one metre away from phones and other electrical devices.

  • Page 11: Optional: Installing The External Antennae

    2.3 Optional:.Installing.the.external.antennae In areas with poor signal reception, connect external antennae to the two ports labelled 'LTE' to improve signal reception. Warning: Before installing the external antennae, ensure that your Cat4 Router is powered off and disconnected from the power outlet. The external antennae must be installed by a qualified technician.
  • Page 12 2.4. How.to.connect.in.Wi-Fi.mode Step.1:.Enabling Wi-Fi on your Cat4 Router. When the Wi-Fi indicator is solid blue, Wi-Fi is enabled. Step.2:.Recording the SSID and Wi-Fi Key. The default SSID and Wi-Fi key are printed on the device label, situated on the underside of your Cat4 Router. To prevent unauthorised parties from accessing your Wi-Fi network, it is recommended that you change the SSID and Wi-Fi key from time to time.

  • Page 13: Configuring.your.cat4.Router

    Link" in the App Store or Google Play Store. Download the Alcatel Wi-Fi Link app from App Store or Google Play store. Click on Alcatel Wi-Fi Link app icon to log in to the management page. Note: The Alcatel Wi-Fi Link app and website share the same password.

  • Page 14: Web.ui.status.bar.page

    Log in to change your Cat4 Wi-Fi device SSID and password, or change other basic settings. Default username: admin Default password: admin 4.. Web.UI.status.bar.page 4.1. Status bar icons Description Icon.displayed Signal indicator From no signal to excellent. Connection status disconnected, connected New message / Unread message(s) in inbox...

  • Page 15: Web.ui.menu.bar

    5. Web.UI.menu.bar 5.1 Status 5.1.1 Status Status allows you to view your device information including internet, HUB42 Device, Wi-Fi, Primary Network User and Guest User. 5.2 Network 5.2.1 Ethernet Set up the WAN connection mode and parameters here. You can set the connection mode to PPPoE, DHCP or static IP.

  • Page 16: Wireless

    DHCP Server will automatically assign IP addresses to devices on the network. DHCP is enabled by default. You can set the range of the address pool. 5.3 Wireless 5.3.1 WiFi •. Enable:.Switch to enable/disable Wi-Fi. •. WiFi.Name.(SSID): This is the name of the Wi-Fi network and is used to identify your Wi-Fi network.

  • Page 17: Network Advanced

    •. Wireless.Protocol: You can select from the available options via the drop- down menu. This is set to Auto by default. •. Channel.Bandwidth: You can select from the available options via the drop-down menu. This is set to Auto by default. •.

  • Page 18: Sms

    assign it a valid IPv6 routing address. This process is called "stateless address auto-configuration (SLAAC for short)". Static.IP: Access the internet using a fixed IP address, subnet mask, gateway IP address and Primary DNS server. These should all be provided by your network service provider.

  • Page 19: Voice

    How.to.send.an.SMS: Click on SMS. Left-click on Add. Input the recipient's number and message content. Click Send. Note: Messages can be saved to Draft.box by clicking on Save.to.Draft.box. An SMS message cannot be sent to multiple recipients simultaneously. How.to.reply.to.an.SMS: Click on SMS. Left-click on Inbox.

  • Page 20: Features

    5.7 Features 5.7.1 Port.Mapping Port mapping is to map a host's internal network (LAN) IP address to a public network (WAN) IP address. Port mapping can also be used to map multiple ports of an external network IP address machine to different ports on different machines in the internal network.
  • Page 21 5.8.3 SIM.Management Perform the following steps to enable the SIM PIN: Enter a SIM PIN that is 4-8 digits long. Click Apply. Note: When a SIM PIN is entered incorrectly 3 times, a PUK code is required to unblock the SIM. You can obtain this by calling customer services using your SIM.

  • Page 22: Setup Wizard

    5.8.9. System.Log You can export the system log of the device. 5.8.10 System.Help Click System.Help to view the user manual for the product. 5.9. Setup.wizard On the first page, you can select your time zone. On the second page, you can set the traffic settings. On the next page, you can change the SSID, Security and Wi-Fi key.

  • Page 23: Q&A

    - Modification or repair performed by individuals not authorised by TCL Communication Ltd. or its affiliates or your vendor; - Modification, adjustment or alteration of software or hardware performed by individuals not authorised by TCL Communication Ltd.; - Inclement weather, lightning, fire, humidity, infiltration of liquids or foods, chemical products, download of files, crash, high voltage, corrosion, oxidation.
  • Page 24 What.should.I.do.if.I.can’t.access.the.internet? Make sure your SIM is a 2G, 3G or 4G SIM. -If no SIM is detected, power off your Cat4 Router, reinsert the SIM, and try again. -If no network is available, move the device to a an area with a better signal (try placing it near a window) and try again.
  • Page 25 Select the network name (SSID) of your Cat4 Router, click Connect, and enter the Wi-Fi key. What.should.I.do.if.I.see.the.SSID.but.the.device.fails.to.connect? Make sure you have entered the correct Wi-Fi key. What.should.I.do.if.the.network.indicator.is.solid.red? When there is no SIM, no service, or the device is not registered to the network, the network indicator on Cat4 Router is solid red.
  • Page 26 What.should.I.do.if."PIN.lock".or."PUK.lock".is.displayed.on.the.screen.of.the. device.connected.to.Cat4.Router? This means the SIM is locked. Log in to the Home page (refer to "How can I access the Home page?") and enter your PIN code or PUK code. To obtain the PUK code, contact your network operator. Note: If the incorrect PIN is entered 3 times you will be required to enter the PUK code.
