Summary of Contents for Alcatel LINKZONE 2

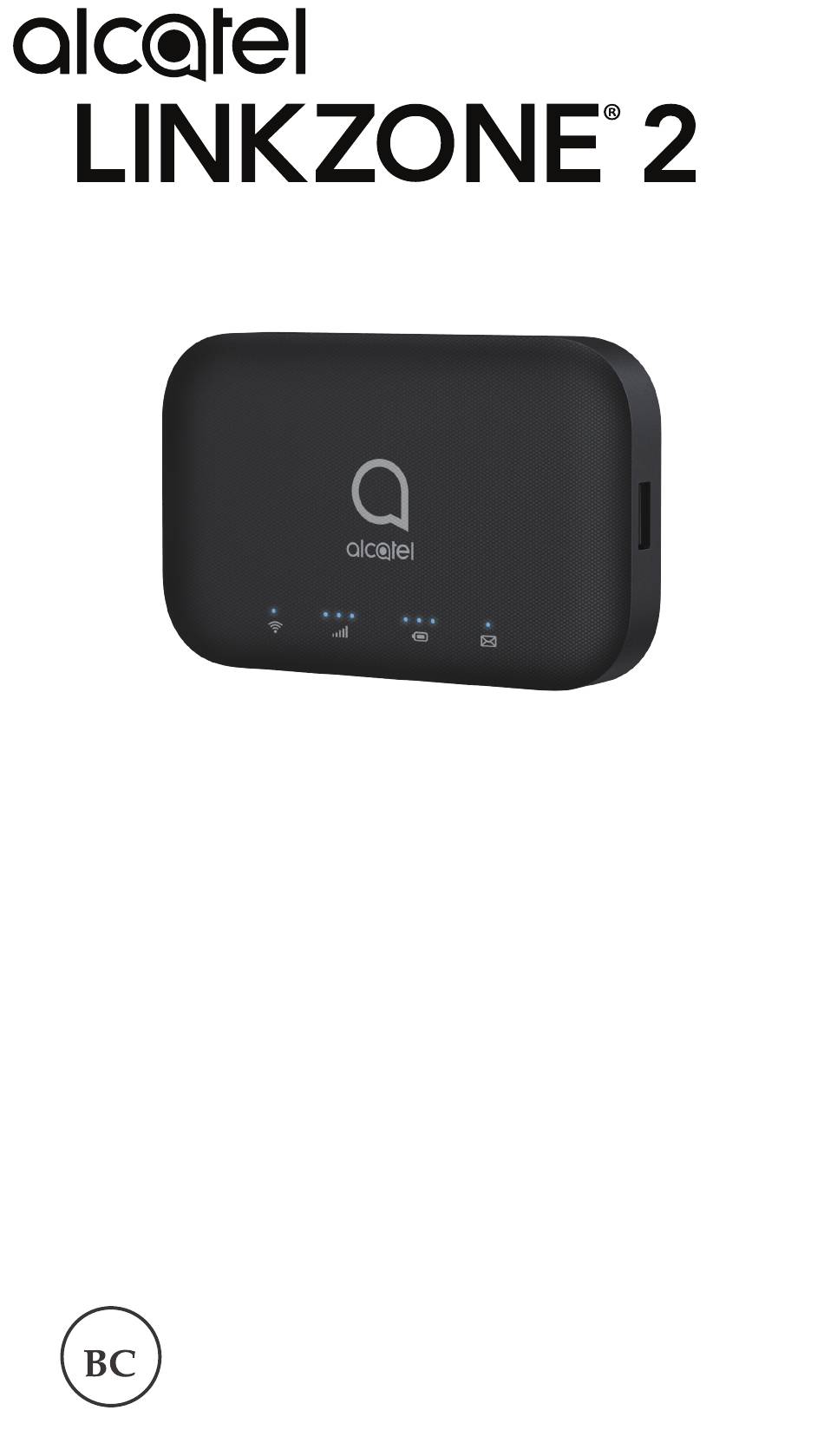

- Page 1 Start Guide Alcatel would like to thank you for your purchase. We hope you will enjoy your high-quality mobile communication experience. For more information about your mobile hotspot or to download the complete user manual version, please visit https://us.alcatelmobile.com...
-
Page 2: Table Of Contents
Table of Contents Getting to Know Your Mobile Hotspot ........ 3 LED Description ................ 3 Indicators ..................4 Inserting the SIM card .............. 5 Removing the SIM card ............6 Inserting/Removing the battery ..........7 Charging Your Mobile Hotspot ..........7 Charging other devices ............ -
Page 3: Getting To Know Your Mobile Hotspot
Getting to Know Your Mobile Hotspot Power key WPS key Charging out port LED indicators Charging in port LED Description Part Description Power Power key Hold the key for 3 seconds to power the device on/off. WPS key Hold the key for 3 seconds to activate the WPS function. -
Page 4: Indicators
Part Description Power Reboot Hold key for 10 seconds to restart device. Indicators When the hotspot is powered on, the following icons will illuminate. For a description of the icons, please refer to the table below: Wi-Fi Indicator (Blue LED) Solid Blue Wi-Fi is active. -
Page 5: Inserting The Sim Card
Inserting the SIM card 1. Open the back cover. We suggest that you hold the Alcatel LINKZONE 2 in one hand and put the tip of your thumb of the other hand into the slot and pull the cover outwards to open it. -
Page 6: Removing The Sim Card
2. Press and push the Nano SIM card to install it in the SIM card slot. Removing the SIM card Do not pull the SIM card out forcefully. Press and hold the flat spring, and then pull the SIM card out. -
Page 7: Inserting/Removing The Battery
Inserting/Removing the battery Ensure that the pins on the battery are aligned with the pins on the device before fully inserting the battery. Close the back cover with the loopholes aligned. Charging Your Mobile Hotspot There are two ways to charge your mobile hotspot: 1. -
Page 8: Charging Other Devices
2. Charge using a computer and USB data cable You can also charge the device by connecting it to a PC with the USB cable. When the device is powered off, it takes about 4 hours to complete charging. Note: When red battery indicator lights up, device should be charged in order to protect the battery. -
Page 9: Os Supported
OS supported Windows (32 bit & 64 bit) 7/8/8.1/10 Mac OS X 10.6 to 10.11 with the latest upgrade Connect your Wi-Fi device to your Mobile Hotspot 1. Power on your mobile hotspot. 2. On your computer or other Wi-Fi enabled device, search for available Wi-Fi networks and select network name (SSID) located on the label underneath the mobile hotspot battery. -
Page 10: Managing Your Mobile Hotspot
3. Enable the WPS function on your Wi-Fi device in order to respond to this authentication process. 4. Follow the system prompts on your Wi-Fi device to finish the connection. 5. If no Wi-Fi device is connected within 2 minutes, WPS function will automatically close. -
Page 11: Access Using A Usb Cable
5. Click Login. If you entered the correct password, the Web User Interface screen appears. Access Using a USB Cable 1. Connect your Mobile Hotspot to your PC using the USB cable. 2. Power on your device. http://mobile.hotspot 3. Open a browser and enter http:/ /192.168.0.1 in the address bar. -
Page 12: Change Mobile Hotspot Network Name (Ssid)
Change Mobile Hotspot Network Name (SSID) http:/ /mobile.hotspot http:/ /192.168.0.1. 1. Access Settings 2. Click in the navigation section. 3. Select the Wi-Fi Settings tab. 4. Change the name that appears in the Network Name (SSID) field in the Wi-Fi Settings area. 5. -
Page 13: Updating Your Software Version
Settings Wi-Fi Settings Whitelist or Blacklilst 2. Select -> -> MAC. 3. After initiating the whitelist function, you need to know the user client’s MAC address and add it to the list. The format is XX:XX:XX:XX:XX:XX. The device is capable of connecting up to 16 devices at one time. -
Page 14: Safety And Use
Safety and Use We recommend that you read this document carefully before using your mobile hotspot. The manufacturer disclaims any liability for damage, which may result as a consequence of improper use or use contrary to the instructions contained herein. Do not switch on your device when its use is prohibited or when using the device may cause interference or danger. - Page 15 It is recommended that the device only be used in an environment where the temperature is between -10°C and 50°C and humidity level is between 10% to 90%. CONDITIONS OF USE Abide by laws and regulations of wireless device use while on aircrafts.
- Page 16 BATTERY Only use batteries, battery chargers, and accessories recommended by TCL Communication Ltd. and its affiliates and are compatible with your hotspot device. TCL Communication Ltd. and its affiliates disclaim any liability for damage caused by the use of alternate chargers or batteries. Your mobile hotspot should not be disposed by way of municipal waste.
-
Page 17: Radio Waves
Used batteries will then be recycled, preventing substances being disposed of in the environment. Their components can then be reused. Proper Disposal in European Union Countries: Such collection points are accessible free of charge. All products with this sign must be brought to proper collection points. Disposal in Countries Outside of European Union: Equipment with this symbol are not to be thrown into ordinary bins if your region has suitable recycling and collection facilities;... - Page 18 Your router is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radiofrequency (RF) energy. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies.
- Page 19 The World Health Organization (WHO) considers that present scientific information does not indicate the need for any special precautions for use of routers. If individuals are concerned, they might choose to limit their own or their children’s RF exposure by limiting the length of calls, or using “hands-free” devices to keep routers away from the head and body.
- Page 20 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference (2) this device must accept any interference received, including interference that may cause undesired operation. Your router is equipped with a built-in antenna.
-
Page 21: Licenses
(1) the technical possibilities available, (2) the costs for implementing the measures, (3) the risks involved with the processing of the personal data, (4) the sensitivity of the personal data processed. You can access, review and edit your personal information at any time by logging into your user account, visiting your user profile or by contacting us directly. -
Page 22: 12 Month Limited Warranty
2) Call Alcatel US Customer Support at 1-855-368-0829. Battery Recycling (USA & Canada): Alcatel partners with Call2Recycle® to offer a safe and convenient battery recycling program. For more information on our Battery Recycling Program, please visit the USA and Canada website at https:/ /us.alcatelmobile.com/accessibility-... - Page 24 Alcatel is a trademark of Nokia used under license by TCL Communication Technology Holdings Limited. LINKZONE is a trademark of TCL Communication Technology Holdings Limited. © 2020 TCT Mobile Limited. All rights reserved. TCL Communication Technology Holdings Limited reserves the right to alter material or technical specification without prior notice.
