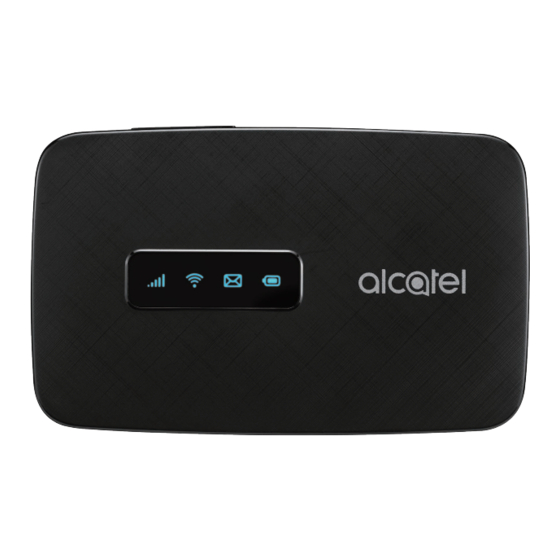

- Page 1 Alcatel LINKZONE Quick Start Guide GETTING TO KNOW YOUR MOBILE HOTSPOT...
- Page 2 LED description Part Description On/off button Press “Power” key for 3 seconds, to power on/off the terminal device. WPS key Press “WPS” key 3S to activate WPS function. Wi-Fi LED will blink every 2 seconds. If no Wi-Fi user access within 2 minutes, it will automatically exit from WPS mode.
- Page 3 Icon Description Description Blue Solid Registered and connected to network. Blue flashes Network disconnected. Signal Red Solid No network, no SIM card or SIM card error, limited or no service. Wi-Fi Blue Solid Wi-Fi is active. Blue Solid New message Blue flashes Message inbox is full.
- Page 4 2. Install SIM Card and SD Card. 3. Install battery 4. Close back cover. 5. Power on. Press power button for 3 seconds till all LED light blue. CHARGE YOUR MOBILE HOTSPOT You can charge your device in two ways: Charging with an USB adapter Connect a USB cable between the device and the head of the adapter and plug it into a power socket to start charging.
- Page 5 Connect your Wi-Fi device to your Mobile Hotspot 1. Power on your mobile hotspot. 2. On your computer or other Wi-Fi enabled device, search for available Wi-Fi networks and select the default Network name(SSID)for your mobile hotspot. Note: Wi-Fi name (SSID) and Wi-Fi Password is located on the sticker of the backside of back cover.
- Page 6 To access via USB cable, do the following: 1. Connect your hotspot device to the PC with USB cable. 2. Power on your device. 3. The OS detects and recognizes new hardware and finishes the installation automatically. After successful installation, the icon will appear on your desktop. Note: If the system does not launch installation automatically, you can run the installation program in path of My Computer >...
- Page 7 1. Log in the web UI. 2. Select Settings > Wi-Fi Settings > Allowed Devices. 3. The switch is off by default, all user input correct password can access. 4. After open the whitelist function, you need to know the user client’s MAC address and add to the list, the format is XX:XX:XX:XX:XX:XX.
- Page 8 account help is available 24 hours a day, 7 days a week. Warning: This device does not support V.O.I.P. function. It means that the functions of WLAN and Bluetooth do not have voice capability in the held to ear mode for phone service. The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue.
