- Page 1 User Manual Installation -Operation Omniksol-1.5k-TL Omniksol-2k-TL Omnik New Energy Co.,ltd...
- Page 2 User Manual 2 ...
-
Page 3: Table Of Contents
User Manual ATALOG Catalog ........................................ 3 1. Notes on this manual .................................. 5 1.1 Scope of Validation .......................... 5 1.2 Symbols Used ............................ 5 1.3 Target Group ............................. 6 2. Preparation ...................................... 7 2.1 Safety Instructions ............................ ... - Page 4 User Manual 6.6 Communication and Monitoring Device .................... 2 9 7. Display ...................................... 3 1 7.1 LCD Panel ............................... 3 1 7.2 LCD Display ............................. 3 2 7.3 Set Language ............................ 3 4 7.4 ...
-
Page 5: Notes On This Manual
Scope of Validation The main purpose of this User’s Manual is to provide instructions and detailed procedures for installing, operating, maintaining, and troubleshooting the following two types of Omnik New Energy-Solar Inverters: • Omniksol-1.5k-TL • Omniksol-2k-TL Please keep this user manual all time available in case of emergency. -
Page 6: Target Group
User Manual Target Group • Chapter 1, 2, 3, 4, 7, 8, 9, 10 and Chapter 11 are intended for anyone who is intended to use Omnik Grid Tie Solar Inverter. Before any further action, the operators must first read all safety regulations and be aware of the potential danger to operate high-voltage devices. -
Page 7: Preparation
User Manual REPARATION Safety Instructions DANGER DANGER due to electrical shock and high voltage DO NOT touch the operating component of the inverter, it might result in burning or death. TO prevent risk of electric shock during installation and maintenance, please make sure that all AC and DC terminals are plugged out. - Page 8 User Manual CAUTION The PV inverter will become hot during operation; please don’t touch the heat sink or peripheral surface during or shortly after operation。 Risk of damage due to improper modifications. Never modify or manipulate the inverter or other components of the system.
-
Page 9: Explanations Of Symbols On Inverter
User Manual Explanations of Symbols on Inverter Symbol Description Dangerous electrical voltage This device is directly connected to public grid, thus all work to the inverter shall only be carried out by qualified personnel. DANGER to life due to high electrical voltage! There might be residual currents in inverter because of large capacitors. - Page 10 User Manual No unauthorized perforations or modifications Any unauthorized perforations or modifications are strictly forbidden, if any defect or damage (device/person) is occurred, Omnik shall not take any responsibility for it. 10 ...
-
Page 11: Product Information
User Manual RODUCT NFORMATION Overview • Industrial Layout 、 • Excellent Heat Elimination 11 ... -
Page 12: Major Characteristics
User Manual • Effective Shield For DC/AC/Communication Connections Major Characteristics Omnik inverter has following characteristics which make Omnik inverter “High Efficiency, High Reliability, High Cost Effective Ratio” • Wide DC input voltage and current ranges, enables more PV panels connected. •... -
Page 13: Datasheet
User Manual Datasheet Type Omniksol-1.5k-TL Omniksol-2k-TL Input (DC) Max. PV-generator power 1750 2300 Max DC voltage max(DC) MPPT DC voltage range 120 - 450 mppt Turn off DC Voltage min(DC) Max. DC current max(DC) Nominal DC current 16.5 N(DC) - Page 14 User Manual Weight [kg] Environmental limits IP protection type IP 65 according to IEC 60529 Operating temperature range -20°C to +60°C Relative humidity 0% to 98%, no condensation Maximum altitude (above sea level) 2000 Noise level [dBA] < 40 General data Isolation type Transformerless...
-
Page 15: Packing Checklist
User Manual ACKING CHECKLIST Assembly parts After you receive the Omnik inverter, please check if there is any damage on the carton, and then check the inside completeness for any visible external damage on the inverter or any accessories. Contact your dealer if anything is damaged or missing. ... -
Page 16: Product Appearance

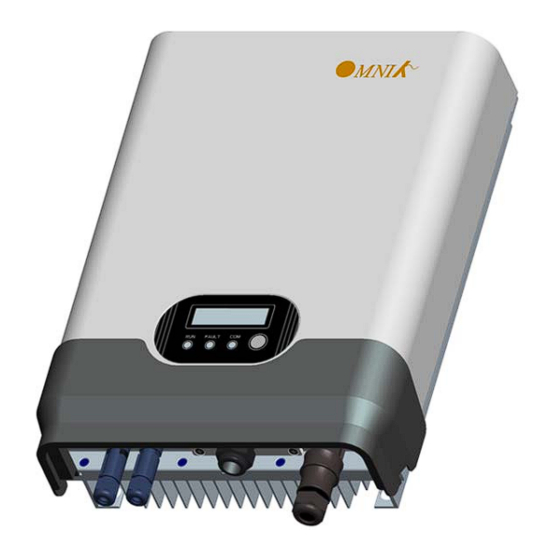

User Manual Product Appearance • Front Object Description Removable front shield LED light(Green) – RUN LED light(Red) – FAULT LED light(Yellow) – COM Function key for displays and choice of language Monitoring LCD with backlighting •... -
Page 17: Product Identification
(SN.), type of the inverter, as well as inverter specifications are specified on the side name plate. The name plate is on the middle part of the right side of the inverter housing. And the following figure is the side name plate example as on Omniksol-1.5k-TL. ... -
Page 18: Installation
User Manual NSTALLATION Safety DANGER DANGER to life due to potential fire or electricity shock. DO NOT install the inverter near any inflammable or explosive items. This inverter will be directly connected with HIGH VOLTAGE power generation device, the installation must be performed by qualified personnel only in compliance with national and local standards and regulations. -
Page 19: Safety Clearance
User Manual • Omnik inverter is designed for indoors and outdoors installation • Please mount the inverter in the direction as illustrated above • Install the inverter in the vertical direction is recommended, with a max.15 degrees backwards. • For the convenience of checking the LCD display and possible maintenance activities, please install the inverter at eye level. -
Page 20: Mounting Procedure
User Manual Direction Minimum clearance Above 30 cm Below 30 cm Sides 10 cm Mounting Procedure 1. Mark 4 positions of the drill holes on the wall according to the paper installation position scale packed in the carton box. ±...
