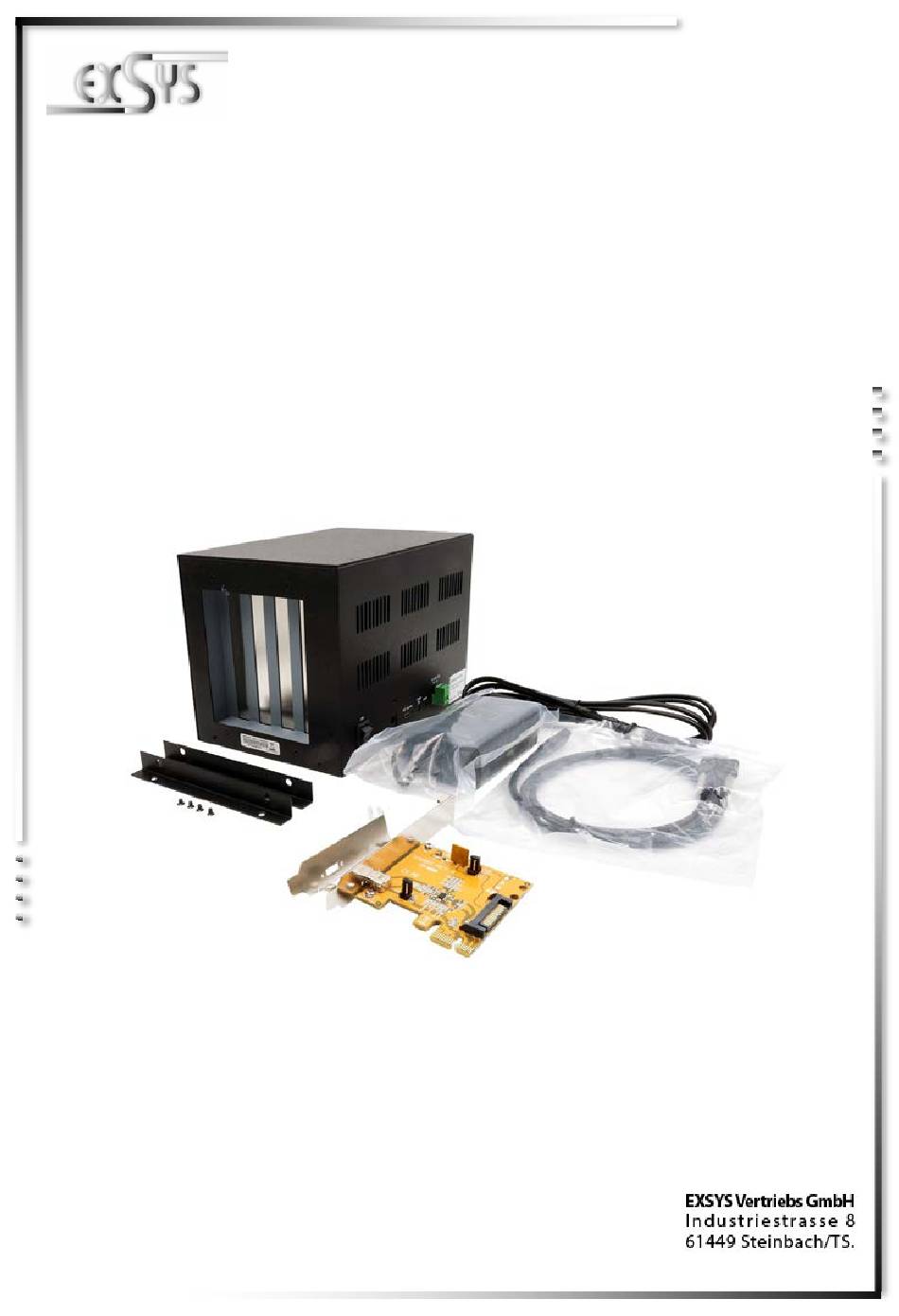

- Page 1 MANUALE EX-1012 Box d’espansione, slot PCIe a 4x PCI PCIe to 4x PCI-Slot Expansion Box Vers. 1.0 / 21.09.21 MANUAL...
-
Page 2: Table Of Contents
Extent of Delivery ······························································································· 9 Layout, LED’s & Jumper Setting ······································································ 10-11 Layout ······················································································································· 10 LED‘s ························································································································ 10 Jumper Setting ············································································································ 11 Hardware Installation ····················································································· 12-13 Cleaning ··········································································································13 Technical Information ·························································································14 Technical Drawing ·····························································································14 © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 3: Descrizione
Italiano 1 . Descrizione L'EX-1012 è un box di espansione esterno con quattro slot PCI per espandere o integrare le connessioni PCI tramite uno slot PCI Express. Non sono necessari ponticelli per le impostazioni degli indirizzi di I/O e degli interrupt, in quanto questi vengono assegnati automaticamente dalla scheda madre. -
Page 4: Costruzione, Led & Installazione Jumper
Cavo OK Verde stata stabilita correttamente Spento: nessuna connessione alla scheda dell'adattatore host PCIe Sempre attivo: L‘ EX-1012 è alimentato e pronto pe l‘uso Rosso Spento L‘EX-1012 non riceve l‘alimentazione © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 5: Installazione Jumper
Sulla scheda vi sono tre ponticelli. Si prega di lasciare JP1 e JP3, così come sono stati configurati dalla fabbrica. Mentre Jumper JP2 è possibile modificarlo come segue: Installazione JP2 ON/OFF Alimentazione del PC host Alimentatore del Box „ON“ Uguale (Impostato dalla Fabbrica) „HOST“ © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 6: Installazione Hardware
'installazione / il collegamento dell'EX-1012. In caso di domande, fare riferimento alle istruzioni per l'uso del proprio computer. Poiché sia il sistema PC che lo stesso EX-1012 sono alimentati, è necessario attenersi alla corretta sequenza ON/OFF come segue: Sequenza di spegnimento: Spegnere prima il PC e poi il Box EX-1012. -
Page 7: Pulizia
7. Rimuovere prima il supporto della scheda PCI "vuoto", che è stato fissato in fabbrica. Ora inserisci le tue schede di espansione PCI negli slot PCI dell'EX-1012 e collega le schede di espansione PCI all'EX-1012. Ora riattacca il coperchio superiore dell'EX-1012. -
Page 8: Dati Tecnici
-20° fino a 75° Celsius Umidità Relativa: 5% fino 95% Classe di Protezione: IP30 Alimentazione: +12 fino a +24 Volt Dimensione: 204,00 x 141,00 x 137,30 mm Peso: 2150g 7 . Disegno Tecnico © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 9: Description

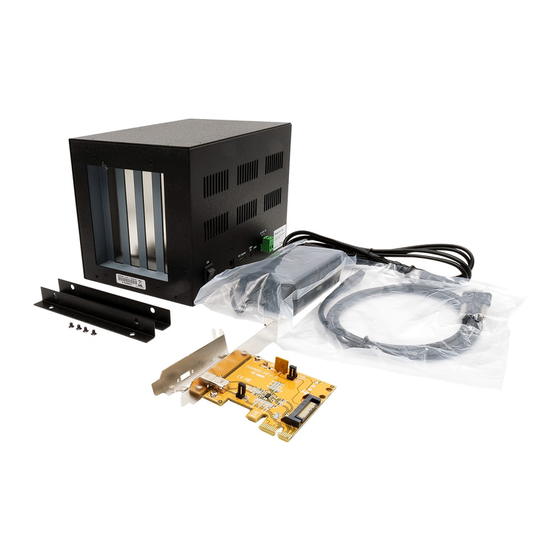

1 . Des c ription The EX-1012 is an external expansion box with four PCI slots for extending or adding PCI connec- tions via a PCI Express slot. For the settings of I/O addresses and interrupts no jumpers are ne- cessary, because they are assigned automatically by the mainboard. -
Page 10: Layout, Led's & Jumper Setting
Cable OK Green Off: No connection to the PCIe-Host-Adapter-Card Steady On: The EX-1012 is supplied with power and is ready for operation Off: The EX-1012 is not supplied with power © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 11: Jumper Setting
There are three jumpers on the board. Please leave JP1 and JP3 as they were delivered from the factory. You can change the jumper JP2 as follows: JP2 Setting On-/Off Switch Host PC Power Expansion Box Power „ON“ Don‘t care (Factory Setting) „HOST“ © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 12: Hardware Installation
EX-1012. If any- thing is unclear, please refer to the operating instructions of your computer system. Since both the PC system and the EX-1012 itself are supplied with power, you must follow the correct ON/OFF sequence as follows: Power Off Sequence: First switch off your PC system and then the EX-1012. -
Page 13: Cleaning
EX-1012. Now reattach the top cover of the EX-1012. 8. Now connect the external power supply to the EX-1012. 9. Now you can switch on the EX-1012 with the on/off switch. After that please switch on your PC system first. -
Page 14: Technical Information
Rel. Humidity: 5% to 95% Protection Class: IP30 Power: +12 to +24 Volt Size: 204,00 x 141,00 x 137,30 mm Weight: 2150g 7 . Tec hni c al Draw ing © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
