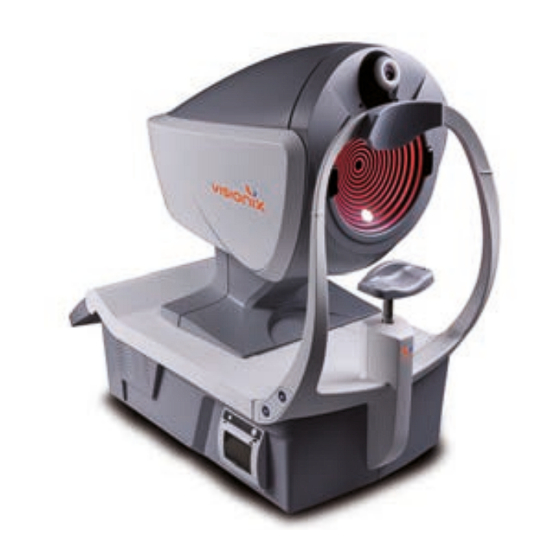

Visionix VX 120+ Dry eye Quick Start

Getting Started Getting Started
• Remove protective cover
• Press power button on screen (will turn blue)
• Swipe up when start screen appears
• Sign-in to Windows Protection:
• Username: Diagnostic
• Password: user
• Wait few seconds for next pop-up to appear
• Sign-in to device with your username/
password
• Create user if you have not already done so
• Tap «OK»
Center Eye and Start
Step 1: Move chinrest with
arrows
Step 2: Tap near pupil middle
to center
NOTE: Correct patient position & device alignment are
critical. Make sure these are correct before you proceed!
VX 120+ Dry eye
Quick start
Initiate Diagnostics
Step 3: Select «ALL» Scheme
Step 4: Tap here to start
Print/Export Results
For schemes with
topography:
• Remove stray lines
with finger
• Tap «Continue»
• Repeat for left eye
Chin firmly
on chinrest
Arms should rest on table to either side
of the device.
Diagnostic Screen Notes
Diagnostics automatically run for both eyes.
Monitor progress & wait for completion.
1
Patient Position
Forehead on headrest
Eyes
aligned
with
markers
arrows move chinrest
for alignment
Scheme
Monitor Progress
Skip current measurement
Stop all testing
• Review Summary
Screen
• Tap «Exit»
www.visionix.com
VER.2.00
