Wireless Gate Sensor
Description
The Wireless Gate Sensor (WGS) operates in conjunction with the FlexZone processor to provide
RF-based wireless security protection for gates. The WGS is comprised of two components. The
wireless gate sensor module (GSM) a high-sensitivity accelerometer, is attached to the protected
gate. The GSM analyzes signals picked up from the fence fabric on the gate and will transmit an
alarm when it detects vibration, motion, or positional changes. A wireless gate sensor receiver
(GSR) that is mounted on the FlexZone processor receives the transmission and passes on the
alarm signal to the FlexZone processor. Alarm data communications are via the FlexZone
processor over the Silver Network or by contact closures.
Note
Features
•
300 m (984 ft.) (nominal) transmission range with the supplied rubber whip antenna (requires
direct line of sight)
•
secure RF transmissions via 128-bit encryption
FlexZone Wireless Gate Sensor
Setup and operation of the WGS requires as a minimum, Network Manager
version 2.18, UCM version 1.35 and FlexZone version 3.0 software.
no connection to
auxiliary security device

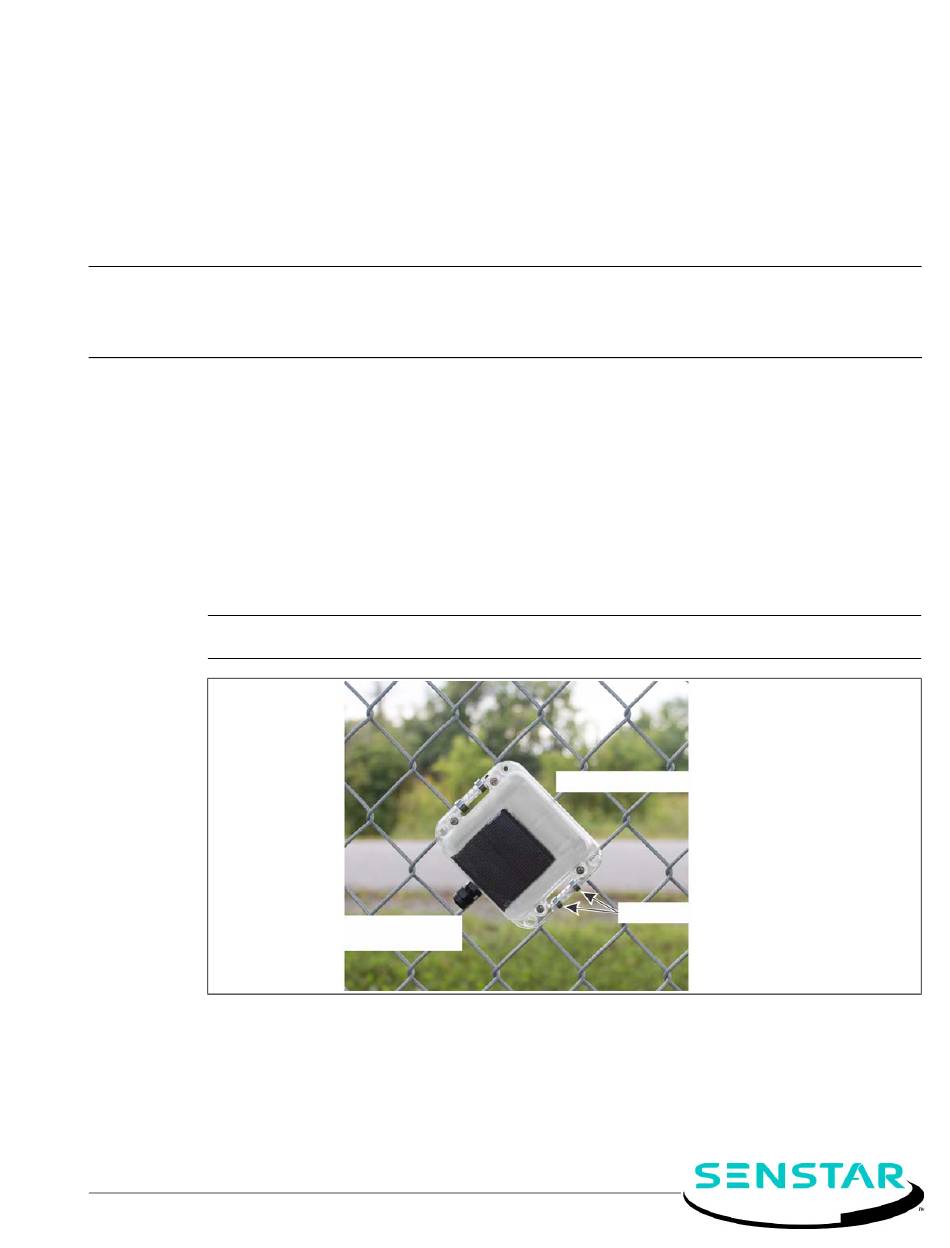

Figure 1 FlexZone Wireless Gate Sensor Module (solar powered)
FlexZone™
Instruction sheet #6
solar powered GSM mounted on sliding gate
stainless steel cable ties (2 per side)
00DA0603-001, Rev A
November 3, 2015
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SENSTAR FlexZone WGS
Summary of Contents for SENSTAR FlexZone WGS
- Page 1 FlexZone™ Instruction sheet #6 00DA0603-001, Rev A November 3, 2015 Wireless Gate Sensor Description The Wireless Gate Sensor (WGS) operates in conjunction with the FlexZone processor to provide RF-based wireless security protection for gates. The WGS is comprised of two components. The wireless gate sensor module (GSM) a high-sensitivity accelerometer, is attached to the protected gate.
-
Page 2: Specifications
Specifications Rev A • supervised comm-link (heartbeat monitor, 2 missed transmissions = supervision alarm) • three selectable GSM supervision modes which are based on the position and orientation of the gate sensor module • supervised input for auxiliary device alarm reporting (e.g., magnetic contact) •... -
Page 3: Installation
Rev A Installation • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Europe: This device complies with ETSI standard EN 300 440 for European operation. - Page 4 Installation Rev A CAUTION The FlexZone processor, network interface card and receiver all contain static sensitive components. Follow proper ESD handling procedures when working on the cards. Disconnect all sources of power to the FlexZone processor before installing the receiver. Installing the receiver on the FlexZone processor 1.
- Page 5 Rev A Installation Figure 5 Mounting the receiver on the NIC (steps 3 & 4) Antenna mounting The supplied whip antenna is sensitive in the 360º horizontal plane, but has low sensitivity above and below the antenna. The recommended installation location is centered on the FlexZone processor enclosure door.
- Page 6 FlexZone processor Rev A 2. For door mounting, open the enclosure door, lay the processor flat on the open side, and drill from the outside of the door. For top mounting, remove the processor circuit card from the enclosure and drill the mounting hole in the center of the top of the enclosure.
- Page 7 Rev A FlexZone processor battery + 13 cm (5 in.) leads 1 cm (0.4 in) proximity sensor (tamper) auxiliary input connector securely tighten the 16 mm route the wires from the auxiliary device (5/8 in.) compression nut (gate contact) along the inside edge of the enclosure beside the battery or solar capacitor keep the wires away from the proximity sensor Figure 8 Connecting the auxiliary device to the GSM...
- Page 8 GSM can usually continue to operate for over a month after the low battery notification. However, other factors such as temperature also affect the battery life. Senstar recommends that the battery be replaced within one week of the low battery notification (see...
- Page 9 Rev A WGS Configuration Figure 10 Supervision mode concept drawing WGS Configuration Note Consult the online help for detailed information on UCM operation. Refer to the FlexZone Product Guide for additional information on configuring the FlexZone processor. The Universal Configuration Module (UCM) is a Windows based software application, which serves as the calibration, setup and maintenance tool for the FlexZone sensor system and the Wireless Gate Sensor.
- Page 10 WGS Configuration Rev A in the Network Type: field select the network to which you TCP/IP connection via Network Manager are connecting (Silver for FlexZone) in the Device Type: field select the device (FlexZone -4 or -60) to connect via the Silver Network Manager, use the Browse button to locate the processor address OR use the Address field to specify the processor address (Browse requires a previously specified IP address and Network Manager ID)
- Page 11 Rev A WGS Configuration Alarm Hold The time period (1 - 10) after an alarm is signaled before a subsequent alarm 3 sec can begin to accumulate. Supervision Mode Sets the gate sensor module’s supervision mode (1 - 3) based on the type of gate being monitored (see Gate sensor module supervision on page Local Bypass...
- Page 12 WGS Configuration Rev A information about connected FlexZone GSM configuration tab Enable checkbox selectable RF channel selectable relay for GSR fail notification GSM selection tabs enter the GSM Serial Number high pass and low pass target filters GSM detection parameters selectable GSM supervision mode selectable auxiliary device local bypass selectable relays for GSM alarm,...
- Page 13 6. Select a GSM configuration tab. 7. Enter the GSM’s serial number. Note Senstar recommends leaving the target filters and the GSM’s detection parameters at the default settings for the calibration procedure. Adjust the Target Filters only if you are experiencing an unacceptable NAR.
- Page 14 WGS Configuration Rev A the fence at the same location for each test, waiting at least 2 seconds between impacts. The best method to simulate a climb intrusion is to actually climb on the fence fabric (you do not have to climb over the fence).
- Page 15 Senstar Corporation website: www.senstar.com email: info@senstar.com FlexZone, Senstar and the Senstar logo are registered trademarks of Senstar Corporation. Product names and Company names included in this document are used only for identification purposes, and are the property of, and may be trademarks of their respective owners. Copyright © 2015,...
