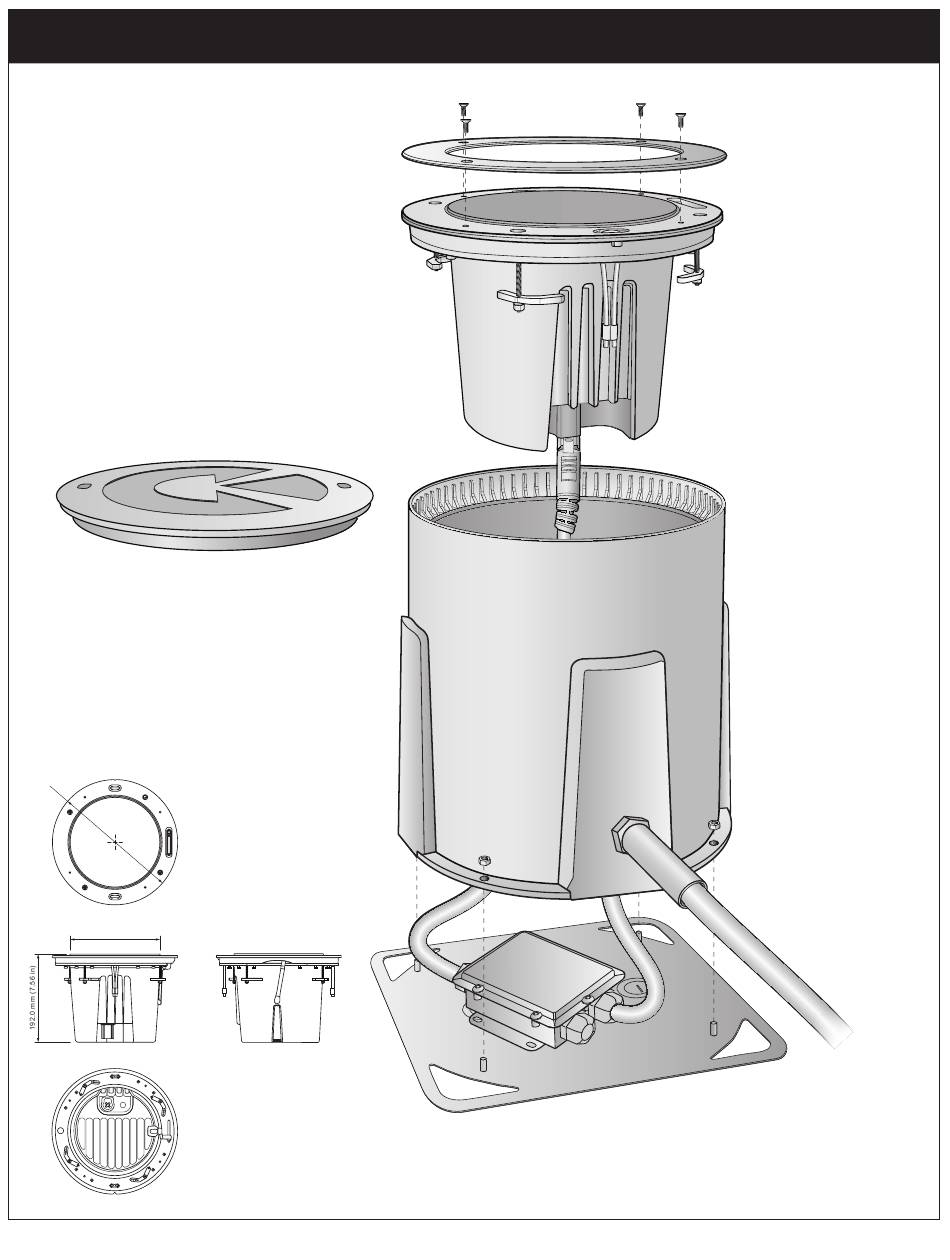

Installation - exploded view Installation – vue éclatée Instalación: vista ampliada Installazione - Vista esplosa
Installatie - explosietekening Installation – Explosionsdarstellung 装着外箱 安装外盒
Trim Ring with
tamper resistant screws
BurstScape luminaire
Temporary Cover
Leader cable
Pour Sleeve
Ø 272.9 mm
(10.74 in)
Conduit and fittings
(customer supplied)
195.8 mm (7.71 in)
Mounting Plate (Optional)
Junction Box (Optional)
2 Part 2: BurstScape Luminaire Installation Instructions
