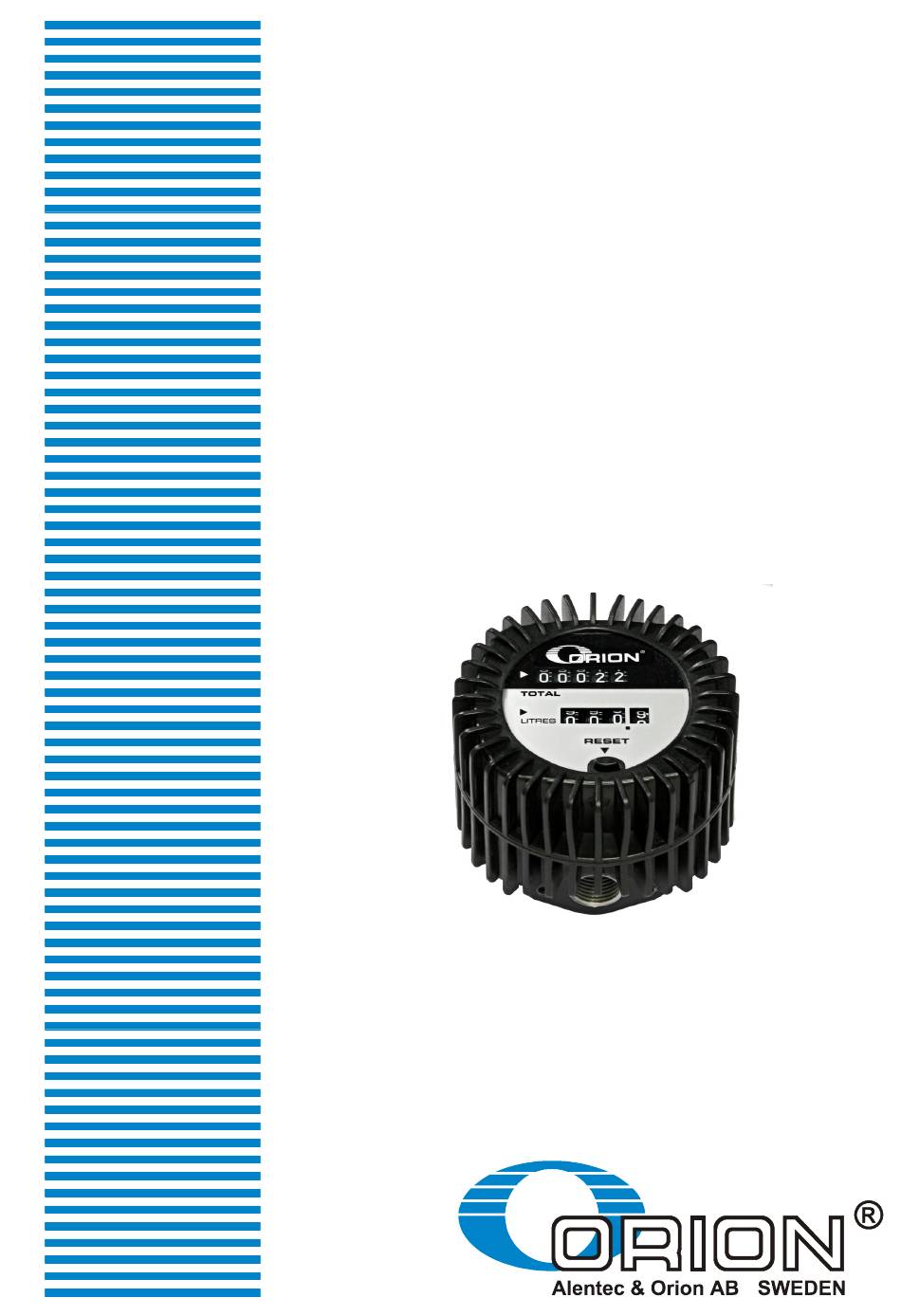

- Page 1 Mechanical Hose end meter Manual Manual 24768, Rev 1a, 11-06-28, 24768_EN_1a...
- Page 2 24768 24768 24768 24768 DESCRIPTION INSTALLATION OPERATION TECHNICAL INFORMATION PARTS LIST PARTS LIST EXPLODED VIEW CHAMBER CLEANING 2(8)
- Page 3 24768 24768 24768 24768 Description Mechanical oval gear volume meter for lubricants with current dispensed quantity "batch" display and accumulated lifetime quantity dispensed "totalizer" display. Litres version batch display shows up to 999,9 litres and the totalizer up to 999 999 litres.
- Page 4 24768 24768 24768 24768 Installation The meter can be installed in any orientation directly in a distribution pipeline/hose or can be connected to a control valve to be used as a hose end meter. Use sealant on the connection threads. The inlet / outlet of the meter have 1/2” female threads.
- Page 5 24768 24768 24768 24768 Operation Once installed, the meter is ready for use. Press the RESET button to reset the batch display to zero. Ensure that the operating pressure will never exceed the specified operating pressure as stated below under Technical Information.
- Page 6 24768 24768 24768 24768 Technical information Meter flow rate 1-25 L/min (0,25-7 Us gal/min) Maximum operating pressure 70 bar (1000 psi) Burst pressure 210 bar (3000 psi) Storage temperature -20°C- +80°C Storage humidity Maximum batch reading (litres) 999,9 Maximum totaliser reading (litres)
- Page 7 24768 24768 24768 24768 Parts list exploded view 7(8)
- Page 8 24768 24768 24768 24768 Chamber cleaning Please refer to Chamber cleaning exploded view. To access and clean the measuring chamber: • Remove the rubber protection • Unscrew the 6 bolts (A) located under the meter body • Remove the top half of the meter from the metering chamber (B) •...
