ChipEncoder Series
Installation Manual and Reference Guide

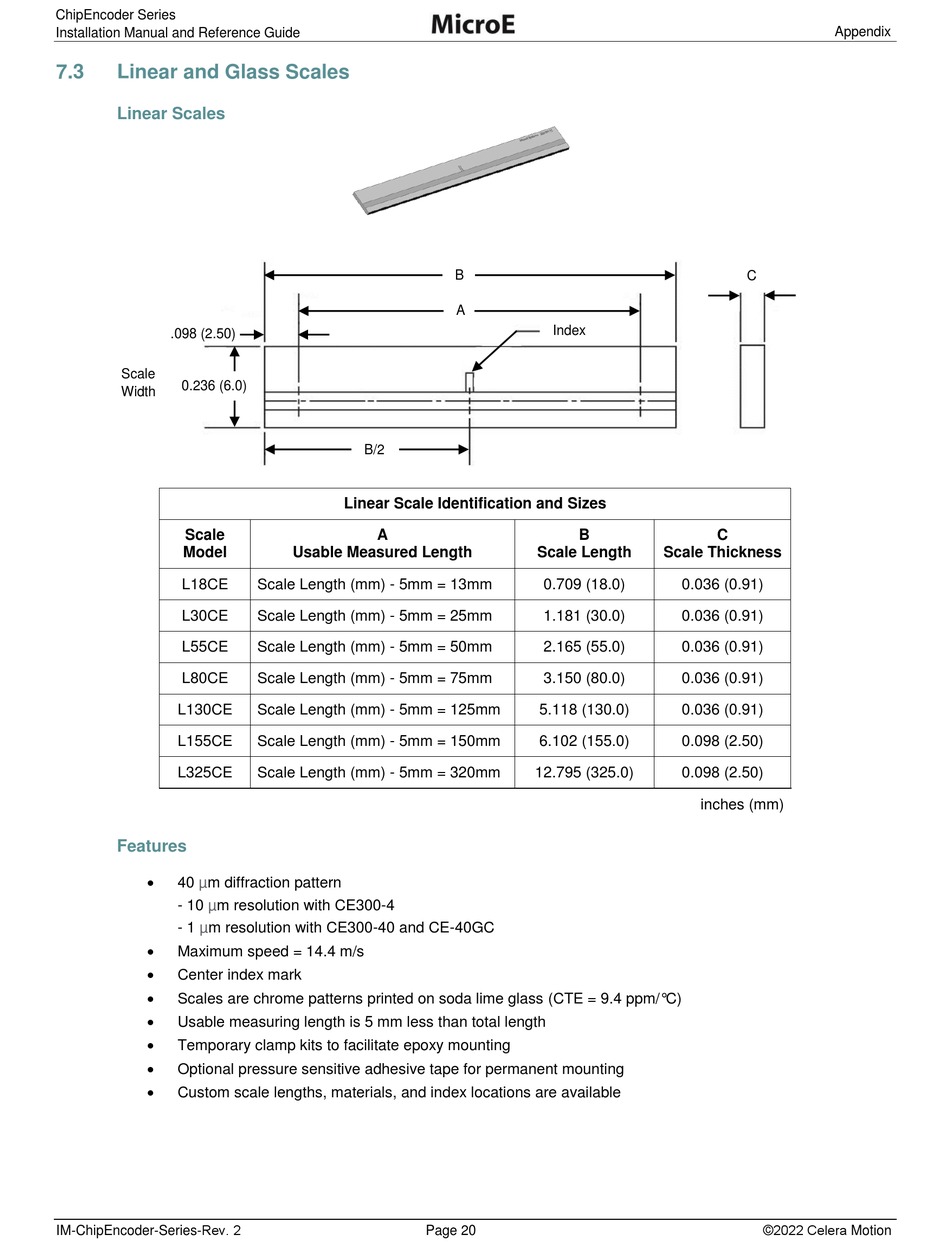

7.3

Linear and Glass Scales

Linear Scales
.098 (2.50)
(6.0)
Scale
0.236 (6.0)
Width
Scale
Model
L18CE
L30CE
L55CE
L80CE
L130CE
L155CE
L325CE
Features

40 µm diffraction pattern
- 10 µm resolution with CE300-4
- 1 µm resolution with CE300-40 and CE-40GC

Maximum speed = 14.4 m/s

Center index mark

Scales are chrome patterns printed on soda lime glass (CTE = 9.4 ppm/°C)

Usable measuring length is 5 mm less than total length

Temporary clamp kits to facilitate epoxy mounting

Optional pressure sensitive adhesive tape for permanent mounting

Custom scale lengths, materials, and index locations are available
IM-ChipEncoder-Series-Rev. 2
B/2
Linear Scale Identification and Sizes
A
Usable Measured Length
Scale Length (mm) - 5mm = 13mm
Scale Length (mm) - 5mm = 25mm
Scale Length (mm) - 5mm = 50mm
Scale Length (mm) - 5mm = 75mm
Scale Length (mm) - 5mm = 125mm
Scale Length (mm) - 5mm = 150mm
Scale Length (mm) - 5mm = 320mm
Page 20
B
A
Index
B
Scale Length
0.709 (18.0)
1.181 (30.0)
2.165 (55.0)
3.150 (80.0)
5.118 (130.0)
6.102 (155.0)
12.795 (325.0)
Appendix
C
C
Scale Thickness
0.036 (0.91)
0.036 (0.91)
0.036 (0.91)
0.036 (0.91)
0.036 (0.91)
0.098 (2.50)
0.098 (2.50)
inches (mm)
