ChipEncoder Series
Installation Manual and Reference Guide
3.2

Linear and Rotary Glass Scales

The scales available for the ChipEncoder:

Linear Glass Scales

Rotary Glass Scales

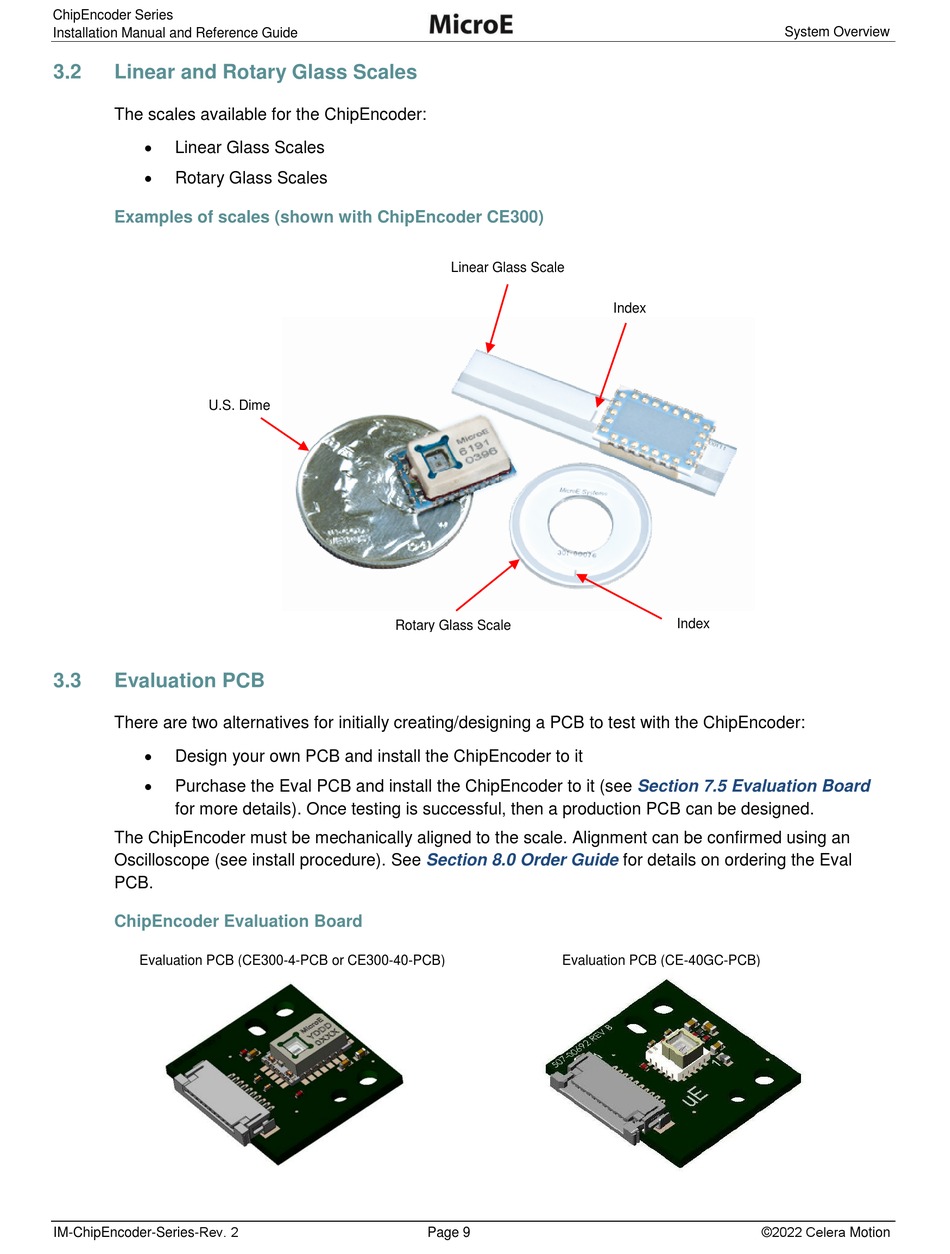

Examples of scales (shown with ChipEncoder CE300)
U.S. Dime
3.3

Evaluation PCB

There are two alternatives for initially creating/designing a PCB to test with the ChipEncoder:

Design your own PCB and install the ChipEncoder to it

Purchase the Eval PCB and install the ChipEncoder to it (see
for more details). Once testing is successful, then a production PCB can be designed.
The ChipEncoder must be mechanically aligned to the scale. Alignment can be confirmed using an
Oscilloscope (see install procedure). See
PCB.
ChipEncoder Evaluation Board
Evaluation PCB (CE300-4-PCB or CE300-40-PCB)
IM-ChipEncoder-Series-Rev. 2
Linear Glass Scale
Rotary Glass Scale
Section 8.0 Order Guide
Evaluation PCB (CE-40GC-PCB)
Page 9
System Overview
Index
Index
Section 7.5 Evaluation Board
for details on ordering the Eval
