ChipEncoder Series
Installation Manual and Reference Guide
7.2

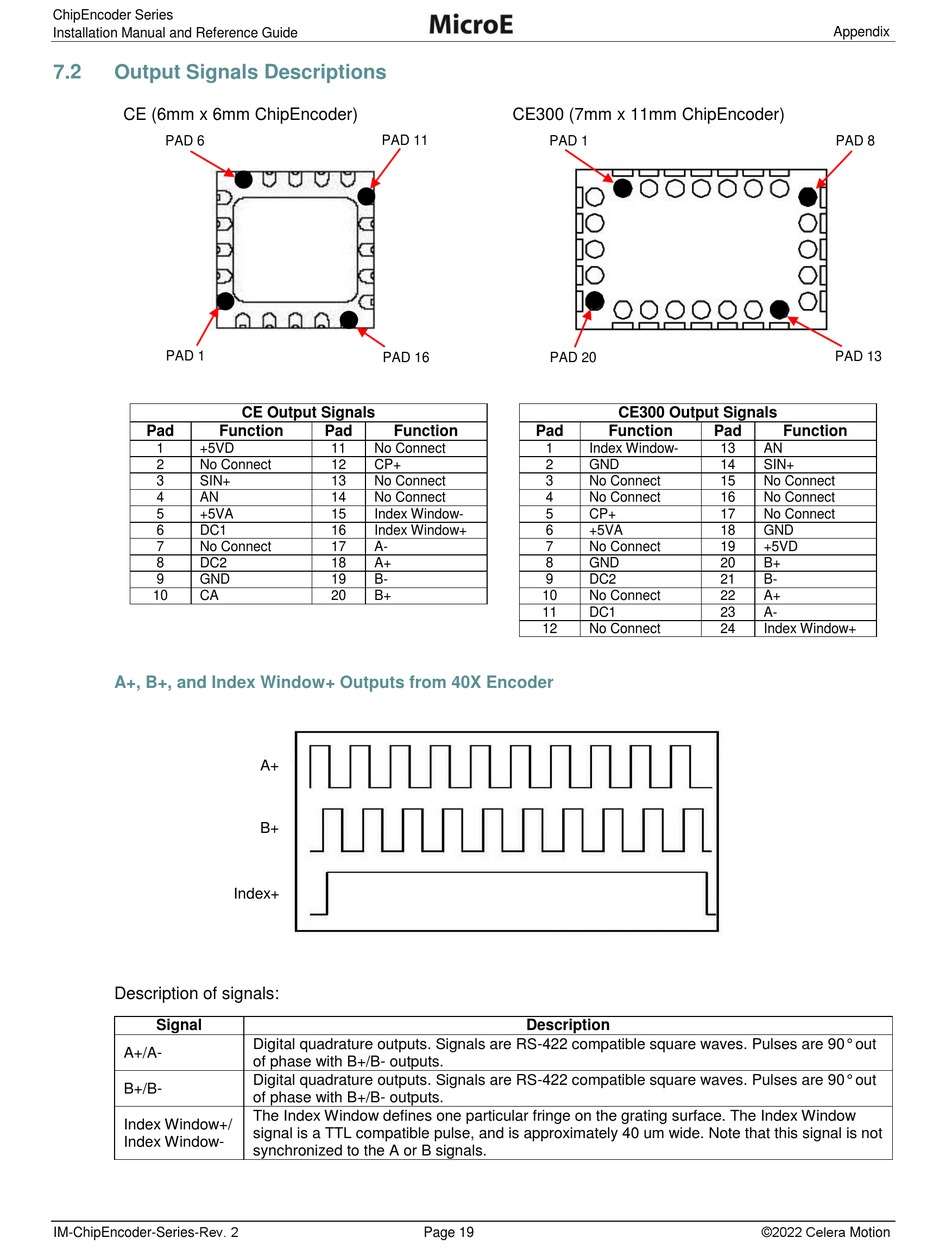

Output Signals Descriptions

CE (6mm x 6mm ChipEncoder)
PAD 6
PAD 1
Pad Function
1 +5VD
2 No Connect
3 SIN+
4 AN
5 +5VA
6 DC1
7 No Connect
8 DC2
9 GND
10 CA

A+, B+, and Index Window+ Outputs from 40X Encoder
Description of signals:
Signal
A+/A-
B+/B-
Index Window+/
Index Window-
IM-ChipEncoder-Series-Rev. 2
PAD 11
PAD 16
CE Output Signals
Pad Function
11 No Connect
12 CP+
13 No Connect
14 No Connect
15 Index Window-
16 Index Window+
17 A-
18 A+
19 B-
20 B+
A+
B+
Index+
Digital quadrature outputs. Signals are RS-422 compatible square waves. Pulses are 90° out
of phase with B+/B- outputs.
Digital quadrature outputs. Signals are RS-422 compatible square waves. Pulses are 90° out
of phase with B+/B- outputs.
The Index Window defines one particular fringe on the grating surface. The Index Window
signal is a TTL compatible pulse, and is approximately 40 um wide. Note that this signal is not
synchronized to the A or B signals.
CE300 (7mm x 11mm ChipEncoder)
PAD 1
PAD 20
Pad
1 Index Window-
2 GND
3 No Connect
4 No Connect
5 CP+
6 +5VA
7 No Connect
8 GND
9 DC2
10 No Connect
11 DC1
12 No Connect

Description
Page 19
CE300 Output Signals
Function Pad Function
13 AN
14 SIN+
15 No Connect
16 No Connect
17 No Connect
18 GND
19 +5VD
20 B+
21 B-
22 A+
23 A-
24 Index Window+
©2022 Celera Motion
Appendix
PAD 8
PAD 13
