ChipEncoder Series
Installation Manual and Reference Guide
5.0

Linear Glass Scale Installation

Use the steps in this section to mount and install linear scales.
5.1

Before Installation

Review the information in this section prior to installing scales.

5.1.1 Items Required for Linear Glass Scale Installation

You will need the following items available for glass scales installation.
Finger Cots or talc-free gloves
Acetone or isopropyl alcohol
Lint-free cotton cloths or wipes
Epoxy, non-conductive
Stick and disposable surface for stirring epoxy
Silicone adhesive
Double-sided tape
1
Note : Not needed for every installation.

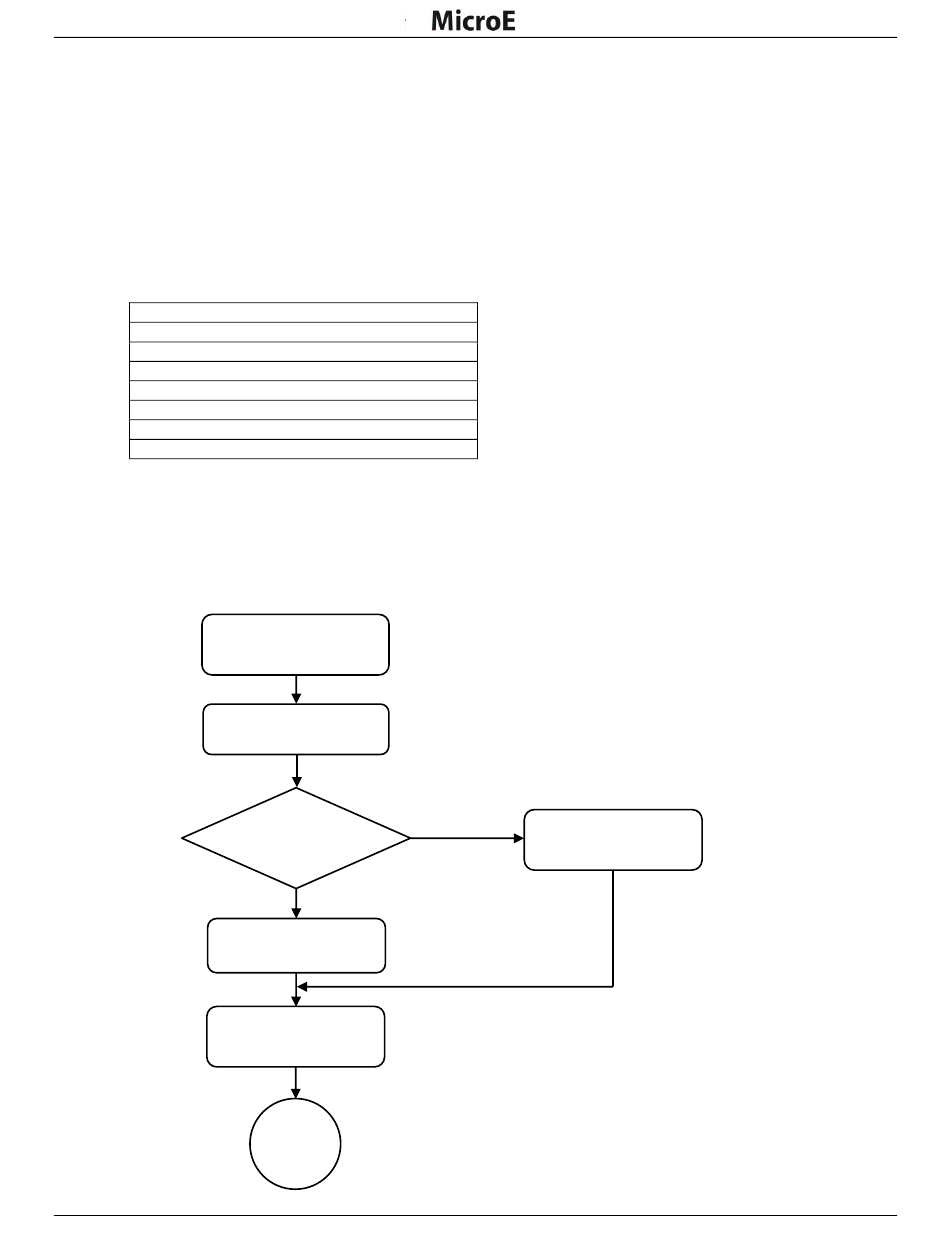

5.1.2 Flowchart for Linear Glass Scale Installation

The following flowchart lists the main steps in glass scale installation.
Mount Scale Using
Clean and Inspect
IM-ChipEncoder-Series-Rev. 2
Item
1
1
1
Prepare
Section 5.2
Mounting Surface
Section 5.3
Position the Scale
Epoxy?
Yes
Epoxy Mounted
Section 5.4.1
Scale
Section 6.0
Scale
Install
Complete
1
No
Adhesive Tape
Mounted Scale
Page 14
Linear Glass Scale Installation
Section 5.4.2
