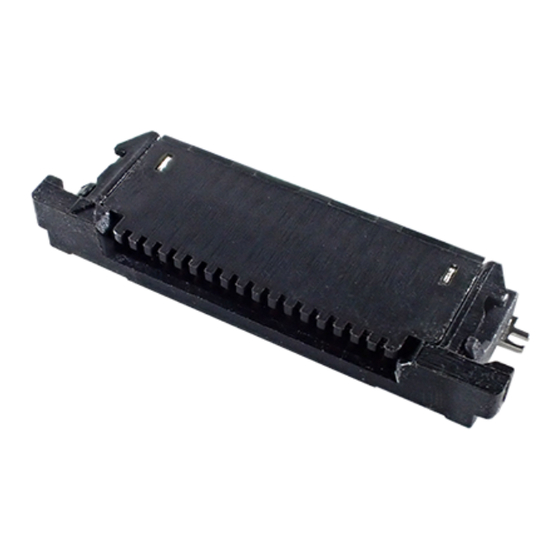

- Page 1 No. : 205-03-6262-001 取 扱 説 明 書 INSTRUCTION MANUAL 6262 Series 0.5mm PITCH FPC/FFC CONNECTOR EDN23055 2023/03/24 R. Nakajima S. Morita N. Nakajima EDN/DCN DATE PREPARED by CHECKED by APPROVED by 106-03-003 © 2023 KYOCERA Corporation...
- Page 2 3.4 コネクタに対する上方向への荷重について UPWARD LOAD APPLIED TO THE CONNECTOR ······ 6 3.5 FPC／FFC の屈曲について BENDING FPC／FFC ·········································· 6 4. その他の注意事項 OTHER CAUTIONS ······················································ 6 5. 製品の保管及び管理 STORAGE MANAGEMENT ············································ 6 6262 SERIES INSTRUCTION MANUAL No.205-03-6262-001 © 2023 KYOCERA Corporatio n 106-03-004...
- Page 3 Care should be taken when handling the connector. This manual describes cautions in handling Series 6262. 2. 各部の名称 PART NAMES スライダ Slider インシュレータ Insulator コンタクト Contact 金具 Anchor Plate 6262 SERIES INSTRUCTION MANUAL No.205-03-6262-001 © 2023 KYOCERA Corporatio n 106-03-004 PAGE 2/5...
- Page 4 (contacting side) faced to the direction as shown below and push the FPC／FFC to the point where it hits the deepest end of the slot of connector. × × ○ 正常挿入 斜め挿入 挿入量不足 Proper insertion Oblique insertion Insufficient insertion 導体面 Conductor Side FPC／FFC 6262 SERIES INSTRUCTION MANUAL No.205-03-6262-001 © 2023 KYOCERA Corporatio n 106-03-004 PAGE 3/5...
- Page 5 3.4 コネクタに対する上方向への荷重について UPWARD LOAD APPLIED TO THE CONNECTOR コネクタが剥離する恐れがある為、いかなる状態に於いても、下図の方向に力を加えないようご注意 ください。 Do not apply load in directions shown by arrows below to avoid the connector from peeling off. 6262 SERIES INSTRUCTION MANUAL No.205-03-6262-001 © 2023 KYOCERA Corporatio n 106-03-004 PAGE 4/5...
- Page 6 Store connectors under the normal temperature, normal humidity and no dust condition. When storing connectors out of the embossed tape, do not apply any pressure to contact tails and anchor plates. 6262 SERIES INSTRUCTION MANUAL No.205-03-6262-001 © 2023 KYOCERA Corporatio n...
