Summary of Contents for OSO Saga Coil SC 150

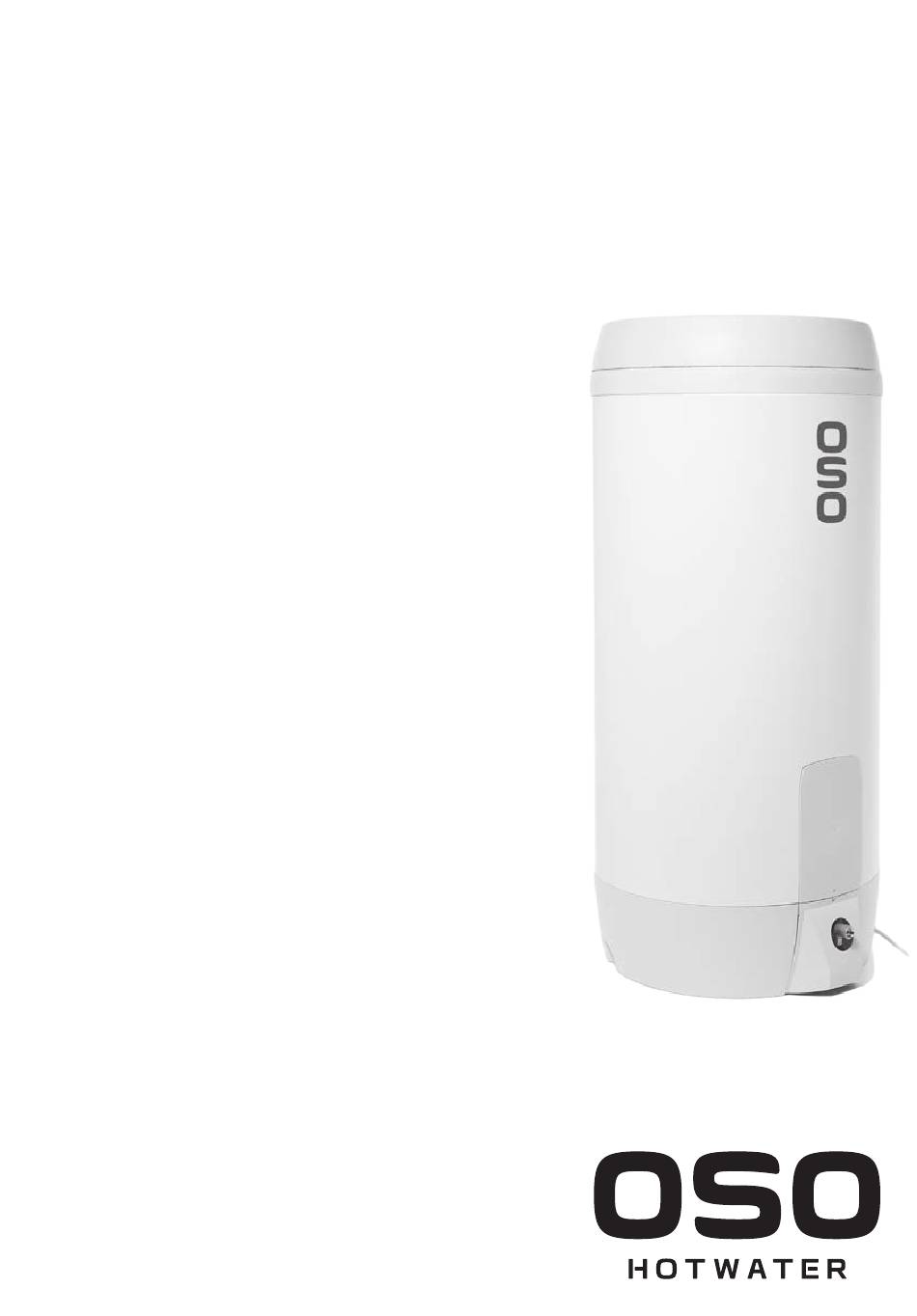

  • Page 1 Saga Coil - SC 150-200-300 l. SAFETY INFORMATION O&M INFORMATION INSTALLATION MANUAL TDS - TECHNICAL DATA SHEET Manufactured by OSO Hotwater AS Industriveien 1 - 3300 Hokksund - Norway Tel: + 47 32 25 00 00 / E-mail: oso@oso.no www.osohotwater.com 11002265-146015-07 - 02-2023...
  • Page 2: Table Of Contents

    CONTENTS 1. Safety instructions ............3 General information ........... 3 1.2 Safety instructions for users ......4 1.3 Safety instructions for installers ....4 2. Product description ............ 5 2.1. Product identification ........5 2.2. Intended use ............5 2.3 CE marking ............. 5 2.4 Technical data ............
  • Page 3: Safety Instructions

    1. SAFETY INSTRUCTIONS 1.1 General information • Read the following safety instructions carefully before installing, maintaining or adjusting the water heater. • Personal injury or material damage may result if the product is not installed or used in the intended manner. •...
  • Page 4: Safety Instructions For Users

    1.2 Safety instructions for users WARNING The overflow from the safety valve must NOT be sealed or plugged. The product must NOT be covered over the cover on the front. The product must NOT be modified or changed from its original state. Children must NOT play with the product or go near it without supervision.
  • Page 5: Product Description

    EN 12897:2016 and EN 60335-2-21, as well as other useful data. See Declaration of Conformity at 2.3 CE marking www.osohotwater.com for more information. OSO products are designed and manufactured in The CE mark shows that the product complies accordance with: with the relevant Directives. See Declaration of •...
  • Page 6: Installation Instructions

    3. INSTALLATION INSTRUCTIONS 3.1 Products covered by these instructions 800 0962 Saga Coil - SC 150 800 0963 Saga Coil - SC 200 800 0964 Saga Coil - SC 300 3.2 Included in delivery Ref no. Antall Beskrivelse Insulated top cover (factory-fitted) Mixer valve (factory-fitted) Elbow brass for coil (included) Tube for temperature sensor...
  • Page 7: Requirements For Installation Location

    3.3.1 Delivery The product should be transported carefully as shown, with packaging. Use the handles in the box. CAUTION Pipe stubs, valves etc. should not be used to lift the product as this could cause malfunctions. 3.4 Requirements for installation location and positioning CAUTION The product should be placed in a room with a gully/drain, in accordance with current local...
  • Page 8: Pipe Installation

    The product can be heated with water from The product is equipped with pipe elbow con- solar collectors. OSO can supply a kit to utilise nectors to the coil (4). The elbows has a 3/4” alternative energy sources, which prioritises ring clamp connection for flow/return pipes.
  • Page 9 3.5.6 Fitting instructions WARNING The product shall be filled with water before the power is switched on. Any overflow pipe from the safety valve shall be in a suitable dimension and must be uninterruptable, undamaged and frost-free with a fall to a suitable drain or gulley. CAUTION The product shall be placed in a room with a gully/drain, in accordance with current local regulations.
  • Page 10: Electrical Installation

    3.6 Electrical installation Fixed electric fittings should be used for installa- tion in new homes or when changing an existing electrical setup in accordance with regulations. A mains cable with plug for wall socket can be used when replacing the product without changing the electrical setup.
  • Page 11 3.6.4 Fitting instructions WARNING The product should be filled with water before the power is switched on. Fixed electric fittings should be used for installation in new homes or when changing an existing electrical setup in accordance with local regulations. A mains cable with plug for wall socket can be used when replacing the product without changing the electrical setup.
  • Page 12: Initial Commissioning

    4. INITIAL COMMISSIONING 4.1 Filling with water First check that all pipes are connected correctly. A) Disconnect the power supply. Then proceed as follows: B) Shut off incoming cold water supply. A) Open a hot tap – leave it open C) Open maximum B) Turn the adjustable knob on the mixer valve all...
  • Page 13: User Guide

    5. USER GUIDE 5.1 Settings 5.1.1 Thermostat setting The thermostat on the product is adjustable from WARNING 50-75°C. The thermostat should not be set lower Constant voltage present in the junction box. Be- than 65°C to prevent bacteria growth. To adjust fore any electrical work is done, the power supply the temperature: must be disconnected and secured against acti-...
  • Page 14: Troubleshooting

    If tact the installer (see type plate on the product) the problem is not shown in the troubleshoot- or OSO Hotwater AS - see section 7.2. TROUBLESHOOTING Problem Possible cause of fault...
  • Page 15: Warranty Conditions

    The immersion heater has not been exposed to hardness • for private use and that has been distributed by OSO or by a levels exceeding 10°dH (180 ppm CaCO3). A water distributor where the Products have been originally sold by OSO.
  • Page 16 OSO Hotwater AS Industriveien 1 3300 Hokksund - Norway Tel: + 47 32 25 00 00 oso@oso.no www.osohotwater.com © This installation manual and all its content is protected by copyright and may be reproduced or distributed only with written consent from the manufacturer.

This manual is also suitable for:

Saga coil sc 200Saga coil sc 300800096280009638000964
