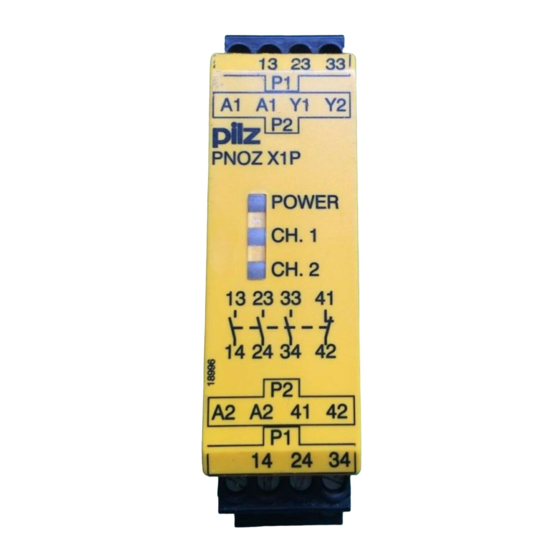

PNOZ X1P
}
Safety relays
Operating Manual-20945-EN-08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PNOZ X1P and is the answer not in the manual?

Questions and answers

Related Manuals for Pilz PNOZ X1P

Summary of Contents for Pilz PNOZ X1P

  • Page 1 PNOZ X1P Safety relays Operating Manual-20945-EN-08...
  • Page 2 We do assure you that all persons are regarded without discrim- ination and on an equal basis. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for the user's internal purposes. Suggestions and comments for improving this documenta- tion will be gratefully received.

  • Page 3: Table Of Contents

    Timing diagram .........................9 Installation ..........................10 Wiring ............................10 Preparing for operation ......................11 Operation ..........................12 Status indicators........................12 Faults – Interference ......................12 Dimensions in mm .........................13 Technical details ........................13 Safety characteristic data......................18 Supplementary data .......................19 Service life graph ........................19 Operating Manual PNOZ X1P 20945-EN-08...
  • Page 4 Contents Remove plug-in terminals .....................20 Order reference ........................20 EC declaration of conformity ....................20 UKCA-Declaration of Conformity ..................21 Operating Manual PNOZ X1P 20945-EN-08...

  • Page 5: Introduction

    PNOZ X1P Introduction Validity of documentation This documentation is valid for the product PNOZ X1P. It is valid until new documentation is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product.

  • Page 6: Safety

    This gives advice on applications and provides information on special fea- tures. Safety Intended use The safety relay PNOZ X1P provides a safety-related interruption of a safety circuit. The safety relay meets the requirements of EN 60947-5-1 and EN 60204-1 and may be used in applications with: E-STOP pushbuttons...

  • Page 7: Use Of Qualified Personnel

    Note for overvoltage category III: If voltages higher than low voltage (>50 VAC or >120 VDC) are present on the unit, connected control elements and sensors must have a rated insulation voltage of at least 250 V. Operating Manual PNOZ X1P 20945-EN-08...

  • Page 8: Unit Features

    The correct opening and closing of the safety device relays is tested automatically in each on-off cycle. Block diagram/terminal configuration *Insulation between the non-marked area and the relay contacts: Basic insulation (over- voltage category III), Protective separation (overvoltage category II) Operating Manual PNOZ X1P 20945-EN-08...

  • Page 9: Function Description

    PNOZ X1P Function Description The safety relay PNOZ X1P provides a safety-oriented interruption of a safety circuit. When the supply voltage is applied via the E-STOP pushbutton, the “POWER” LED is lit. The unit is ready for operation when the start circuit Y1-Y2 is closed.

  • Page 10: Installation

    Do not switch low currents using contacts that have been used previously with high cur- rents. The power supply must comply with the regulations for extra low voltages with protective electrical separation (SELV, PELV) in accordance with VDE 0100, Part 410. Operating Manual PNOZ X1P | 10 20945-EN-08...

  • Page 11: Preparing For Operation

    Feedback loop Automatic start Manual start Contacts from external contactors 13 (23, 33) 14 (24 ,34) Legend S1: E-STOP/safety gate switch S3: Start button : Gate open : Gate closed Operating Manual PNOZ X1P | 11 20945-EN-08...

  • Page 12: Operation

    1 minute, the unit is ready for operation again. Contact malfunctions: If the contacts have welded, reactivation will not be possible after the input circuit has opened. Operating Manual PNOZ X1P | 12 20945-EN-08...

  • Page 13: Dimensions In Mm

    Input circuit DC 45 mA 45 mA Start circuit DC 45 mA 45 mA Feedback loop DC 45 mA 45 mA Max. overall cable resistance Rl- Single-channel at UB DC 30 Ohm 30 Ohm Operating Manual PNOZ X1P | 13 20945-EN-08...
  • Page 14 DC13 (6 cycles/min) at 24 V 24 V Max. current Utilisation category of auxiliary con- tacts AC15 at 230 V 230 V Max. current DC13 (6 cycles/min) at 24 V 24 V Max. current Operating Manual PNOZ X1P | 14 20945-EN-08...
  • Page 15 120 ms Delay-on de-energisation With E-STOP typ. 55 ms 55 ms With E-STOP max. 90 ms 90 ms With power failure typ. 55 ms 55 ms With power failure max. 90 ms 90 ms Operating Manual PNOZ X1P | 15 20945-EN-08...
  • Page 16 PPO UL 94 V1 PPO UL 94 V1 Front ABS UL 94 V0 ABS UL 94 V0 PPO UL 94 V1 PPO UL 94 V1 Connection type Screw terminal Spring-loaded terminal Mounting type plug-in plug-in Operating Manual PNOZ X1P | 16 20945-EN-08...
  • Page 17 8 mm Dimensions Height 94 mm 101 mm Width 22,5 mm 22,5 mm Depth 121 mm 121 mm Weight 205 g 205 g Where standards are undated, the 2022-09 latest editions shall apply. Operating Manual PNOZ X1P | 17 20945-EN-08...

  • Page 18: Safety Characteristic Data

    A safety function's SIL/PL values are not identical to the SIL/PL values of the units that are used and may be different. We recommend that you use the PAScal software tool to calculate the safety function's SIL/PL values. Operating Manual PNOZ X1P | 18 20945-EN-08...

  • Page 19: Supplementary Data

    To increase the service life, sufficient spark suppression must be provided on all output contacts. With capacitive loads, any power surges that occur must be noted. With DC con- tactors, use flywheel diodes for spark suppression. Operating Manual PNOZ X1P | 19 20945-EN-08...
  • Page 20 European Parliament and of the Council. The complete EC Declaration of Conformity is available on the Internet at www.pilz.com/downloads. Authorised representative: Norbert Fröhlich, Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ostfildern, Germany Operating Manual PNOZ X1P...
  • Page 21 This product(s) complies with following UK legislation: Supply of Machinery (Safety) Regu- lation 2008. The complete UKCA Declaration of Conformity is available on the Internet at www.pilz.com/ downloads. Representative: Pilz Automation Technology, Pilz House, Little Colliers Field, Corby, Northamptonshire, NN18 8TJ United Kingdom, eMail: mail@pilz.co.uk Operating Manual PNOZ X1P | 21...
  • Page 22 We are represented internationally. Please refer to our homepage www.pilz.com for further details or contact our headquarters. Headquarters: Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: info@pilz.com, Internet: www.pilz.com...
