Vemer memo RF User Manual

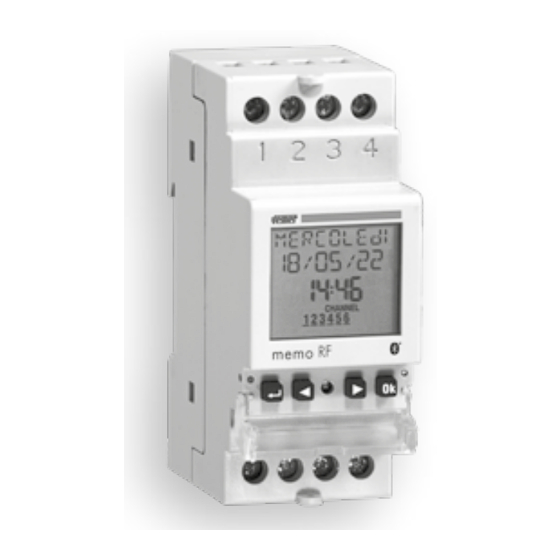

Digital time/astronomical switch with rf bus
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Manuale d'Uso
INTERRUTTORE ORARIO/ASTRONOMICO
DIGITALE CON BUS RF
memo RF
Digital time/astronomical switch
with RF BUS: User Manual
PDF

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the memo RF and is the answer not in the manual?

Questions and answers

Related Manuals for Vemer memo RF

Summary of Contents for Vemer memo RF

  • Page 1 Manuale d’Uso INTERRUTTORE ORARIO/ASTRONOMICO DIGITALE CON BUS RF memo RF Digital time/astronomical switch with RF BUS: User Manual...

  • Page 3: Table Of Contents

    ■ Program menu page Program menu: new page Program menu: new daily timed page Program menu: new weekly timed page Program menu: new holiday timed page Program menu: new astro night page - 1 - User manual memo RF...
  • Page 4 RF is a digital electronic clock for managing electrical users over time. Allows hourly programming (periodicity: daily or weekly) or astronomical. memo RF does not have on-board relays but is able to drive up to 8 different channels (relays) made by radio frequency remote actuators (available as accessories), connected through the RF BUS.

  • Page 5: Technical Features

    • Insulation: reinforced between accessible parts (front) • Display LCD with backlight (active with AC power supply) and all the other terminals • RF communication interface with Vemer protocol: - Operating frequency band: 433.92MHz - Maximum transmitted power: 10 dBm...

  • Page 6: Safety Warnings

    III and pollution degree 2, In case of replacement, dispose of the batteries in the according to the Standard IEC 60730-1 appropriate places separate waste collection containers. - 4 - User manual memo RF...

  • Page 7: Dimensions

    DIMENSIONS WIRING DIAGRAMS - 5 - User manual memo RF...

  • Page 8: Display And Keyboard Description

    Confirm selection active pulse program Hardware reset active manual program Channels status indication (CHANNEL) / days of the week (DAY) configured channel (in off status) configured channel (in on status) - 6 - User manual memo RF...

  • Page 9: Initial Operation

    INITIAL OPERATION • Once out of the package, memo RF is off: press the key Daylight Saving time (DST) - start of daylight saving time (DST): wait a moment before activating the display change: active last Sunday of March at 02:00 •...

  • Page 10: Start Page (Or Main)

    START PAGE (or main) information messages NOTE: Bluetooth interface is active only when memo RF displays data date the start page (main) and only if it’s mains power supplied. Therefore, to transfer programs from and to the time witch it hour is necessary to respect these conditions.
  • Page 11 Access the store of your device, install and start the free app memo – Vemer. Memo Connect to a new memo Memo BT RF NEARBY DEVICES VE790200–18E97132 LAST UPDATE 18-05-2022 09:48:09 DEVICE BT RF Bluetooth pairing request Enter PIN to pair with VE790200–18E97132 (Try 0000 or 1234).
  • Page 12 These informations can be viewed from the main page of the memo RF. Warning: make sure that the memo RF is mains powered and that the display shows the main page (initial). Otherwise the Bluetooth interface is not active and the device is not visible.

  • Page 13: Menu Description

    (relay on) of the loads connected to each channel (relay). “Reset” menu allows you to reset settings, programmed settings, operating hour counter. “Ver FW” menu allows you to check the firmware version installed on the device. - 11 - User manual memo RF...

  • Page 14: Settings Menu

    SETTINGS MENU “Settings” menu allows you to view and eventually to modify the general operation settings of memo RF, such as: language date time automatic daylight saving time (DST) change position (astronomical coordinates) interval duration between two random switchings keys protection by PIN...

  • Page 15: Language Setting Menu

    Language setting menu Available languages: Italian, English, Spanish, French, German. Quick access: from the main page it’s possible to access the language setting by pressing the key for at least 3 seconds. - 13 - User manual memo RF...

  • Page 16: Date Setting Menu

    ( Choose, by convention, the first day of the week. In Italy, for example, the first day of the week is Monday, in the UK it’s Sunday. Enter the date: day, month, year. - 14 - User manual memo RF...

  • Page 17: Time Setting Menu

    Time setting menu Parameters modification Parameters modification Set the time: hours, minutes. Set the time zone. Range: -14:00 ÷ +14:00 at 15 minutes steps. For Italy set +1:00. - 15 - User manual memo RF...

  • Page 18: Daylight Saving Time (Dst)/Winter Time (Cet) Change Setting Menu

    Daylight saving time (DST)/winter time (CET) change setting menu Daylight saving time (DST) / winter time (CET) change and vice versa can occur in an automatic way. In this case, memo RF: - increases by an hour in the passage from winter time (CET) to daylight saving time (DST) - decreases by an hour in the passage from daylight saving time (DST) to winter time (CET) For every change it’s necessary to specify:...
  • Page 19 ) or to disable ( ) the automatic time change. Set date and time of the winter time (CET)-daylight saving time (DST) change. Set date and time of the daylight saving time (DST)-winter time (CET) change. - 17 - User manual memo RF...

  • Page 20: Astronomical Coordinates Setting Menu

    The setting of the geographical coordinates of the installation place allows memo RF to calculate, for each day of the year, sunrise and sunset times. To simplify the procedure, in the memo RF are stored the coordinates of the locations listed below; if your location is among them you can select it from the menu , otherwise it’s necessary to enter the coordinates of latitude and longitude (menu...
  • Page 21 Set a possible correction of the calculated sunset time. Positive values to delay, negative values to anticipate. Choose as switching times the civil twilight ( ) in place of sunrise and sunset ) times. - 19 - User manual memo RF...

  • Page 22: Random Switchings Setting Menu

    Set the minimum duration. It’s possible to set values between 1 minute and the maximum duration. Set the maximum duration. It’s possible to set values between the minimum duration and 23:59. Note: setting the minimum duration equal to the maximum, the switchings will occur at fixed time intervals. - 20 - User manual memo RF...

  • Page 23: Protection Pin Setting Menu

    To disable PIN protection: - set “---” (located before 000 or after 999) Note: If you have forgotten your PIN code to unlock memo RF it’s necessary to carry out a hardware reset (see page 56). - 21 - User manual memo RF...

  • Page 24: Manual Operation Menu

    MANUAL OPERATION MENU “Manual” menu allows you to manually take action on the channels of memo RF and to check their status (on, off, or “------” if the channel is not configured). Possible operations: program: the selected channel follows the set programming...
  • Page 25 - on (off) + : on (off) channel after manual setting - on (off) + : on (off) channel with blocked switching - on (off) + : on (off) channel after random event - 23 - User manual memo RF...

  • Page 26: Program Menu

    The menu “program” allows you to: create a new program check created programs change or delete a created program copy all created programs on a channel in another channel delete all programs of a channel - 24 - User manual memo RF...
  • Page 27 1 to 7: - by pressing the key to move to the next day without selecting the current day - by pressing the key to select/deselect the current day and move to the next - 25 - User manual memo RF...
  • Page 28 (except for some night programs that can have switching on or switching off during the day. See on page 36). * times of sunrise and sunset are automatically calculated by memo RF according to geographic coordinates set during installation. In place of sunrise and sunset times it’s possible to use the times of civil twilight (see page 18).
  • Page 29 * Date: select day, month, year (program carried “only once in the life of the product”). If the month is not specified, the program is carried out all days xx of all months of the specified year. - 27 - User manual memo RF...
  • Page 30 From this example it’s possible to see that the daily event on Monday is not carried out because in the same day it is provided the beginning of the week program (even if the daily program - 28 - User manual memo RF...

  • Page 31: Program Menu: New

    Program menu: new Choose the channel Choose the channels to program* * See “Channels selection” on page 25 - 29 - User manual memo RF...

  • Page 32: Program Menu: New Daily Timed

    Program menu: new daily timed Enter program parameters Program parameters - on/off: on time and off time - on pulse: time and pulse duration (max 59 seconds) - off pulse: time and pulse duration (max 59 seconds) - 30 - User manual memo RF...

  • Page 33: Program Menu: New Weekly Timed

    - on pulse: day (or days)* and pulse time, pulse duration (max 59 seconds) - off pulse: day (or days)* and pulse time, pulse duration (max 59 seconds) * See “Days selection” on page 25 - 31 - User manual memo RF...

  • Page 34: Program Menu: New Holiday Timed

    Holiday program HOLIDAY ON: the relay is ON from the beginning to the end of Holiday program Program parameters - beginning of the program - end of the program - 32 - User manual memo RF...
  • Page 35 VV month of all years of all months of the specified ZZ year of the specified VV month of the specified ZZ year - 33 - User manual memo RF...

  • Page 36: Program Menu: New Astro Night

    Program menu: new astro night Choose Nights nights programs - 34 - User manual memo RF...
  • Page 37 Selected nights: between day 1 and 2, between day 2 and 3, between day 4 and 5 Selected nights: between day 1 and 2, between day 3 and 4, between day 7 and 1 - 35 - User manual memo RF...
  • Page 38 ** Switching on continues for the entire set time interval (also duration (pulse, max 59 seconds). if off time is after sunrise). *** Switching on occurs before sunrise of the entire set time interval (also if on time is before sunset). - 36 - User manual memo RF...
  • Page 39 (***) settable time interval. (**) Turning on at sunrise for a settable short Turning on at sunset for a settable short duration (pulse, max 59 seconds). duration (pulse, max 59 seconds). - 37 - User manual memo RF...

  • Page 40: Program Menu: New Astro Daily

    Program menu: new astro daily Enter program parameters Program parameters - on/off: on time and off time - on pulse: time and pulse duration (maximum 59 seconds) - off pulse: time and pulse duration (maximum 59 seconds) - 38 - User manual memo RF...

  • Page 41: Program Menu: New Astro Weekly

    - on pulse: day (or days)* and pulse time, pulse duration (max 59 seconds) - off pulse: day (or days)* and pulse time, pulse duration (max 59 seconds) * See “Days selection” on page 25 - 39 - User manual memo RF...

  • Page 42: Program Menu: New Astro Holiday

    HOLIDAY ON: the relay is ON from the beginning to the end of holiday program. Program parameters - beginning of the program - end of the program - 40 - User manual memo RF...
  • Page 43 Otherwise is signaled. of the specified VV month of all years of all months of the specified ZZ year of the specified VV month of the specified ZZ year - 41 - User manual memo RF...

  • Page 44: Program Menu: Check

    Note: a program requires more screens to be displayed: - press the key to move from the first to the second part of the same program - press the keys to switch from one program to another - 42 - User manual memo RF...
  • Page 45 Choose the Choose the Choose channel period the type Check programs - 43 - User manual memo RF...

  • Page 46: Program Menu: Modify

    - press the keys key to switch from one program to another To modify: press for a long time (at least 3 seconds) the key To delete: press for a long time and simultaneously the keys - 44 - User manual memo RF...
  • Page 47 Choose the Choose the Choose channel period the type Modify/ Delete programs - 45 - User manual memo RF...

  • Page 48: Program Menu: Copy

    “Copy” menu allows copying the programs of a channel (origin channel) on one or more channels (channels destination). Note: the programs previously stored on the destination channels will be deleted. * See “Channels selection” on page 25 - 46 - User manual memo RF...

  • Page 49: Program Menu: Delete

    “Delete” menu is used to delete all stored programs on one or more channels. Note: to delete one single program to see “modify” mode (see page 44). * See “Channels selection” on page 25 - 47 - User manual memo RF...

  • Page 50: Bluetooth Menu

    Bluetooth OFF In this way no communication can take place between your device and memo RF. memo RF works with the settings and programs already set; any changes or creation of new programs must be made by acting directly on the keyboard of memo RF.
  • Page 51 Password change Changing the password The password is the 6-digit code required by the app for the first association between memo RF and smartphone The pre-set password is 123456 but can be changed. Press the key for at least 3 seconds until the first digit of the password starts to flash.

  • Page 52: Bus Rf Menu

    BUS VEMER MENU BUS RF MENU memo RF allows to control 8 independent channels that can be associated with the relays on remote radio frequency actuator modules (see page 2). The set of remote actuators and RF memos is called “network”.
  • Page 53 - 51 - User manual memo RF...
  • Page 54 Network configuration with one or more remote actuators 1. On the remote actuator: activate “Channel configuration” mode (see the documentation supplied with the actuator) 2. On the memo RF: 2.1 Select and confirm with 2.2 Choose with the keys the channel to configure 2.3 Press the key...

  • Page 55: Connection Test

    Connection test The test is used to verify proper communication between memo RF and the remote actuator. It’s possible to test multiple channels simultaneously*. During the test a series of on-off commands are sent every 5 seconds to the relay in test. It’s possible to exit the test:...

  • Page 56: Hour Couter Menu

    3 seconds until the display shows “ ” 3. confirm by pressing (press to exit without zeroing) Note: it’s possible to reset all counters contemporary from the “Reset” menu (see page 56). - 54 - User manual memo RF...
  • Page 57 - 55 - User manual memo RF...

  • Page 58: Reset Menu

    1. press the key “R” with a sharp object The hardware reset is also useful when you forget PIN protection. Reset, in fact, unlocks the keyboard for 3 minutes, the necessary time to access the appropriate menu and check/disable PIN. - 56 - User manual memo RF...
  • Page 59 - 57 - User manual memo RF...

  • Page 60: Firmware Menu

    FIRMWARE MENU This menu shows the firmware installed in the device, where: 022 is the revision index 05 is the month 20 is the day - 58 - User manual memo RF...

  • Page 61: Error Signals

    / Two or more consecutive off events of the same program * In this case, carry out a hardware reset (see page 56). Invalid date If the error persists, contact Vemer technical support Insufficient memory (assistenza.tecnica@vemer.it). Attempt to set an on pulse on a channel where is...

  • Page 62: Reference Standards

    REFERENCE STANDARDS EU CONFORMITY DECLARATION Vemer declares that the device complies with the EU directive 2014/53/UE (RED) with reference to the following standards: EN 60730-2-7, ETSI EN 301 489-1, ETSI EN 301 489-3, ETSI EN 301 489-17, ETSI EN 300 220-1, ETSI EN 300 220-2,...
  • Page 64 Vemer S.p.A. I - 32032 Feltre (BL) • Via Camp Lonc, 16 10-2022 e-mail: info@vemer.it - web site: www.vemer.it...
