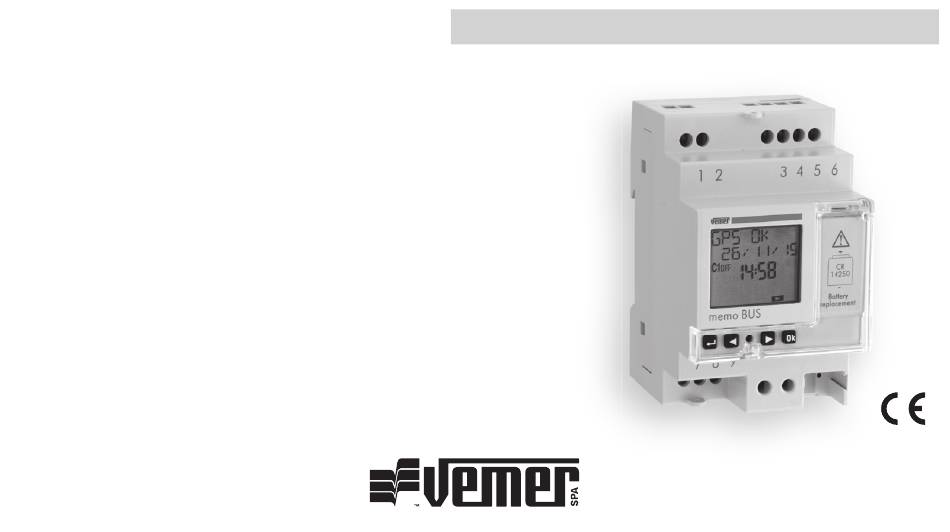

- Page 1 Manuale d’Uso INTERRUTTORE ORARIO/ASTRONOMICO DIGITALE memo BUS Digital time/astronomical switch: User Manual...
-
Page 3: Table Of Contents
Time setting menu page Complex network configuration (several Daylight saving time (DST)/winter time (CET) memo BUS, one or more remote actuators) page change setting menu page Connection test page Astronomical coordinates setting menu... - Page 4 (periodicity: daily, weekly or annual) or astronomical programming. Memo BUS has an on-board relay but it’s able to control up to nine different channels (relay); the other eight channels are realized by two remote actuators RX4-8A (available as an accessory), connected to the memo BUS via BUS. Each channel can be associated with a different programming (time or astronomical).
-
Page 5: Technical Features
* The 9 channels are realized physically by as many relays. The • Terminals for: channel 1 is realized by the relay mounted on the memo BUS; - device power supply (terminals 1-2) the other 8 channels are realized through the connection via bus - auxiliary power supply output of 12V dc ±10%, 80mA, 1W... -
Page 6: Safety Warnings
7) I n the electrical system upstream of the instrument must be installed a protection device against the overcurrents 8) The product can be used in environments with Measurement Category III and Pollution degree 2, according to the Standard IEC 60730-1 - 4 - User manual memo BUS... -
Page 7: Wiring Diagrams
Connection of devices on the bus BUS 485 12V (1W) GEO-1 power supply GEO-1 must be powered by a DC voltage at 12V. This power supply can be obtained from terminals 3-4 of memo BUS (see figure). RELE’ 1 memo BUS GEO-1 Note: for details of the connections of GEO-1 and RX4-8A see the instructions supplied with the products. -
Page 8: Display And Keyboard Description
Data transmission from GEO-1 in progress indication Channels status indication (CHANNEL) / days of the week (DAY) configured channel (in off status) configured channel (in on status) failed configured channel (no communication) - 6 - User manual memo BUS... -
Page 9: Initial Operation
INITIAL OPERATION • Once out of the package, memo BUS is off: press the key Daylight Saving time (DST) - start of daylight saving time (DST): and wait a moment before activating the display change: active last Sunday of March at 02:00 •... -
Page 10: Start Page (Or Main)
** Only if memo BUS is not powered by mains. time is after the sunset time if the display show In this condition the backlight is not active and the relay is in means that the calculated sunrise time is before 00:00 or that off status. -
Page 11: Menu Description
“Programming” menu allows you to set a new program or to check, to copy, to modify or to delete a set program. “Bus Vemer” menu allows you to configure additional relay modules and to transfer programs among memo BUS. “GPS” menu allows the configuration of GPS module (GEO-1). -
Page 12: Settings Menu
SETTINGS MENU “Settings” menu allows you to view and eventually to modify the the general operation settings of memo BUS, such as: language date time automatic daylight saving time (DST) change position (astronomical coordinates) interval duration between two random switchings... -
Page 13: Language Setting Menu
Language setting menu Available languages: Italian, English, Spanish, French, German. Quick access: from the main page it’s possible to access the language setting by pressing the key for at least 3 seconds. - 11 - User manual memo BUS... -
Page 14: Date Setting Menu
Enter the date: day, month, year. If GEO-1 is connected and active, memo BUS synchronizes date, time and coordinates (longitude, latitude) thanks to the received GPS signal. Synchronization occurs automatically every 30 minutes and is indicated by the flashing symbol (2 times). -
Page 15: Time Setting Menu
* The time zone must be set manuallly also with connected GEO-1 module. If GEO-1 is connected and active, memo BUS synchronizes date, time and coordinates (longitude, latitude) thanks to the received GPS signal. Synchronization occurs automatically every 30 minutes and is indicated by the flashing symbol (2 times). -
Page 16: Daylight Saving Time (Dst)/Winter Time (Cet) Change Setting Menu
Daylight saving time (DST)/winter time (CET) change setting menu Daylight saving time (DST)/winter time(CET) change and vice versa can occur in an automatic way. In this case, memo BUS: - increases by an hour in the passage from winter time (CET) to daylight saving time (DST) - decreases by an hour in the passage from daylight saving time (DST) to winter time (CET) For every change it’s necessary to specify:... - Page 17 ) or to disable ( ) the automatic time change. Set date and time of the winter time (CET)-daylight saving time (DST) change. Set date and time of the daylight saving time (DST)-winter time (CET) change. - 15 - User manual memo BUS...
-
Page 18: Astronomical Coordinates Setting Menu
Therefore, in some applications it is more interesting to take as times of switching on and off the twilight (civil) in place of sunrise and sunset. With memo BUS it’s possible to choose to turn on/off the loads depending on the times of sunrise and sunset or the civil twilight. - Page 19 ) in place of sunrise and sunset ) times. If GEO-1 is connected and active, memo BUS synchronizes date, time and coordinates (longitude, latitude) thanks to the received GPS signal. Synchronization occurs automatically every 30 minutes and is indicated by the flashing symbol (2 times).
-
Page 20: Random Switchings Setting Menu
Set the minimum duration. It’s possible to set values between 1 minute and the maximum duration. Set the maximum duration. It’s possible to set values between the minimum duration and 23:59. Note: setting the minimum duration equal to the maximum, the switchings will occur at fixed time intervals. - 18 - User manual memo BUS... -
Page 21: Protection Pin Setting Menu
To disable PIN protection: - set “---” (located before 000 or after 999) Note: If you have forgotten your PIN code to unlock memo BUS it’s necessary to carry out a hardware reset (see page 60). - 19 - User manual memo BUS... -
Page 22: Manual Operation Menu
MANUAL OPERATION MENU “Manual” menu allows you to manually take action on the channels of memo BUS and to check their status (on, off, or “------” if the channel is not configured). Possible operations: program: the selected channel follows the set programming... - Page 23 - on (off) + : on (off) channel after manual setting - on (off) + : on (off) channel with blocked switching - on (off) + : on (off) channel after random event - 21 - User manual memo BUS...
-
Page 24: Program Menu
The menu “program” allows you to: create a new program check created programs change or delete a created program copy all created programs on a channel in another channel delete all programs of a channel - 22 - User manual memo BUS... - Page 25 1 to 7: - by pressing the key to move to the next day without selecting the current day - by pressing the key to select/deselect the current day and move to the next - 23 - User manual memo BUS...
- Page 26 (except for some night programs that can have switching on or switching off during the day. See on page 36). ** times of sunrise and sunset are automatically calculated by memo BUS according to geographic coordinates set during installation. In place of sunrise and sunset times it’s possible to use the times of civil twilight (see page 16).
- Page 27 In this case to proceed it’s necessary to delete the saved programs on that channel (see page 49). Programs priority The priority programs defines how memo BUS manages the case in which programs with different period are running at the same time (1 indicates higher priority).
- Page 28 From this example it’s possible to see that the daily event on Monday is not carried out because in the same day it is provided the beginning of the week program (even if the daily program - 26 - User manual memo BUS...
-
Page 29: Program Menu: New
Program menu: new Choose the channel Choose the channels to program* * See “Channels selection” on page 23 - 27 - User manual memo BUS... -
Page 30: Program Menu: New Daily Timed
Program menu: new daily timed Enter program parameters Program parameters - on/off: on time and off time - on pulse: time and pulse duration (max 59 seconds) - off pulse: time and pulse duration (max 59 seconds) - 28 - User manual memo BUS... -
Page 31: Program Menu: New Weekly Timed
- on pulse: day (or days)* and pulse time, pulse duration (max 59 seconds) - off pulse: day (or days)* and pulse time, pulse duration (max 59 seconds) * See “Days selection” on page 23 - 29 - User manual memo BUS... -
Page 32: Program Menu: New Yearly Timed (Or Monthly)
- on/off: day (or days) and on time, day (or days) and off time - on pulse: day (or days) and pulse time, pulse duration (max 59 seconds) - off pulse: day (or days) and pulse time, pulse duration (max 59 seconds) - 30 - User manual memo BUS... - Page 33 Wednesday, then there will be two off events on Monday of all months of the specified ZZ year and on Wednesday. Otherwise is signaled. of the specified VV month of the specified ZZ year - 31 - User manual memo BUS...
-
Page 34: Program Menu: New Holiday Timed
Holiday program HOLIDAY ON: the relay is ON from the beginning to the end of Holiday program Program parameters - beginning of the program - end of the program - 32 - User manual memo BUS... - Page 35 Otherwise is signaled. of the specified VV month of all years of all months of the specified ZZ year of the specified VV month of the specified ZZ year - 33 - User manual memo BUS...
-
Page 36: Program Menu: New Astro Night
Program menu: new astro night Choose Nights nights programs - 34 - User manual memo BUS... - Page 37 Selected nights: between day 1 and 2, between day 2 and 3, between day 4 and 5 Selected nights: between day 1 and 2, between day 3 and 4, between day 7 and 1 - 35 - User manual memo BUS...
-
Page 38: User Manual Memo Bus
** Switching on continues for the entire set time interval (also duration (pulse, max 59 seconds). if off time is after sunrise). *** Switching on occurs before sunrise of the entire set time interval (also if on time is before sunset). - 36 - User manual memo BUS... -
Page 39: User Manual Memo Bus
(***) settable time interval. (**) Turning on at sunrise for a settable short Turning on at sunset for a settable short duration (pulse, max 59 seconds). duration (pulse, max 59 seconds). - 37 - User manual memo BUS... -
Page 40: Program Menu: New Astro Daily
Program menu: new astro daily Enter program parameters Program parameters - on/off: on time and off time - on pulse: time and pulse duration (maximum 59 seconds) - off pulse: time and pulse duration (maximum 59 seconds) - 38 - User manual memo BUS... -
Page 41: Program Menu: New Astro Weekly
- on pulse: day (or days)* and pulse time, pulse duration (max 59 seconds) - off pulse: day (or days)* and pulse time, pulse duration (max 59 seconds) * See “Days selection” on page 23 - 39 - User manual memo BUS... -
Page 42: Program Menu: New Astro Yearly (Or Monthly)
Program menu: new astro yearly (or monthly) Enter program parameters Program parameters - on/off: on time and off time - on pulse: time and pulse duration (max 59 seconds) - off pulse: time and pulse duration (max 59 seconds) - 40 - User manual memo BUS... - Page 43 Wednesday, then there will be two off events on Monday of all months of the specified ZZ year and on Wednesday. Otherwise is signaled. of the specified VV month of the specified ZZ year - 41 - User manual memo BUS...
-
Page 44: Program Menu: New Astro Holiday
HOLIDAY ON: the relay is ON from the beginning to the end of holiday program. Program parameters - beginning of the program - end of the program - 42 - User manual memo BUS... - Page 45 Otherwise is signaled. of the specified VV month of all years of all months of the specified ZZ year of the specified VV month of the specified ZZ year - 43 - User manual memo BUS...
-
Page 46: Program Menu: Check
Note: a program requires more screens to be displayed: - press the key to move from the first to the second part of the same program - press the keys to switch from one program to another - 44 - User manual memo BUS... - Page 47 Choose the Choose the Choose the channel period type Check programs - 45 - User manual memo BUS...
-
Page 48: Program Menu: Modify
- press the keys key to switch from one program to another To modify: press for a long time (at least 3 seconds) the key To delete: press for a long time and simultaneously the keys - 46 - User manual memo BUS... - Page 49 Choose the Choose the Choose the channel period type Modify/ Delete programs - 47 - User manual memo BUS...
-
Page 50: Program Menu: Copy
“Copy” menu allows copying the programs of a channel (origin channel) on one or more channels (channels destination). Note: the programs previously stored on the destination channels will be deleted. * See “Channels selection” on page 23 - 48 - User manual memo BUS... -
Page 51: Program Menu: Delete
“Delete” menu is used to delete all stored programs on one or more channels. Note: to delete one single program to see “modify” mode (see page 46). * See “Channels selection” on page 23 - 49 - User manual memo BUS... -
Page 52: Bus Vemer Menu
BUS VEMER MENU BUS VEMER MENU Memo BUS enables you to control 9 independent channels but It has one relay (for channel 1). With additional RX4-8A modules It’s possible to add some relays and associate these relays to the channels of memo BUS. - Page 53 - 51 - User manual memo BUS...
-
Page 54: Simple Network Configuration (One Memo Bus, One Or More Remote Actuators)
To delete the configuration of a channel, select the channel (steps 2.1 and 2.2) and press simultaneously for 3 seconds the keys Complex network configuration (several memo BUS, one or more remote actuators) About the configuration of the network in the case of several connected memo BUS, contact Vemer Technical Support (tel. +39.0439.879885). - 52 -... -
Page 55: Connection Test
Connection test The test is used to verify proper communication between memo BUS and the remote actuator. It’s possible to test multiple channels simultaneously*. During the test a series of on-off commands are sent every 5 seconds to the relay in test. It’s possible to exit the test:... -
Page 56: Programs Copy On The Bus
- to transfer programs only to memos BUS on which the reception mode* has been activated ( only for It’s not possible to select the programs to copy, the entire memory area is copied. The programs previously stored on memo BUS destination will be deleted. -
Page 57: Reception Programs On The Bus
In the case where the reception is not successful the message is displayed. Reception programs can take place at any time (even if the reception mode is not activated). This happens if another memo BUS connected to the network transmits by using the function... -
Page 58: Gps Menu
(2 times). In this way the time of memo BUS is always synchronized and are canceled the drifts due to the tolerance of the oscillator which marks the time base. To enable the presence of GEO-1: It’s also possible to display the status of the connection to GEO-1 (ok, waiting, error). - Page 59 Displays the number of hooked satellites (10 in this case). GEO-1 module is not properly connected to memo BUS. Check the wiring diagrams in this manual. GEO-1 module has not hooked a sufficient number of satellites for a correct synchronization.
-
Page 60: Hour Couter Menu
3 seconds until the display shows “ ” 3. confirm by pressing (press to exit without zeroing) Note: it’s possible to reset all counters contemporary from the “Reset” menu (see page 60). - 58 - User manual memo BUS... - Page 61 - 59 - User manual memo BUS...
-
Page 62: Reset Menu
1. press the key “R” with a sharp object The hardware reset is also useful when you forget PIN protection. Reset, in fact, unlocks the keyboard for 3 minutes, the necessary time to access the appropriate menu and check/disable PIN. - 60 - User manual memo BUS... - Page 63 - 61 - User manual memo BUS...
-
Page 64: Firmware Menu
FIRMWARE MENU This menu shows the firmware installed in the device, where: 022 is the revision index 05 is the month 20 is the day - 62 - User manual memo BUS... -
Page 65: Error Signals
* In this case, carry out a hardware reset (see page 60). Invalid date If the error persists, contact Vemer technical support Insufficient memory (tel.+ 39.0439.879885). Attempt to set an on pulse on a channel where is... -
Page 66: Battery Management
60 seconds (in absence of power by means). Dispose of the used batteries observing the laws in force in relation to the disposal of hazardous waste. - 64 - User manual memo BUS... - Page 67 Energy Conservation Solutions Pty Ltd Exclusive Distributor for VEMER in Australia Locations: VIC/TAS, NSW, QLD, ACT, SA/NT & WA Phone: 1300 306 136 For contact details visit: www.ecs.net.au...
- Page 68 Vemer S.p.A. I - 32032 Feltre (BL) • Via Camp Lonc, 16 Tel +39 0439 80638 • Fax +39 0439 80619 e-mail: info@vemer.it - web site: www.vemer.it 1-2016...
