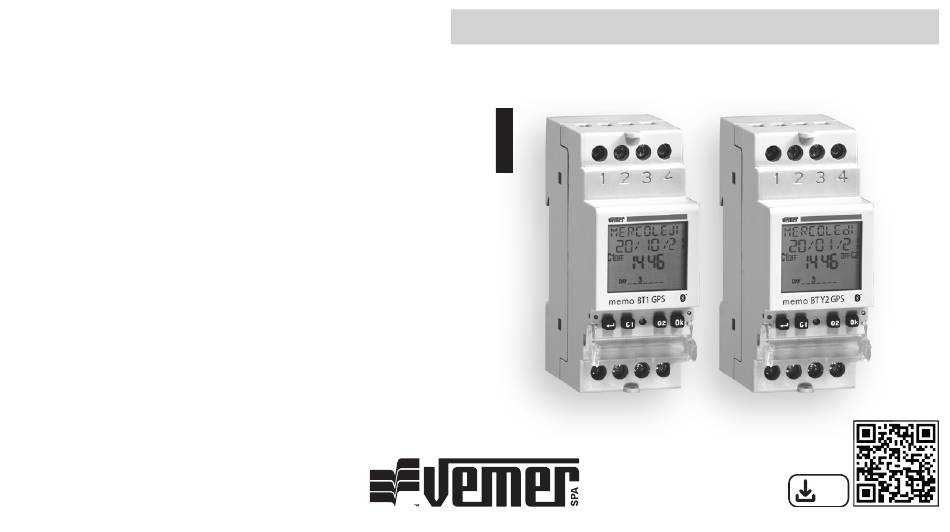

- Page 1 Manuale d’Uso INTERRUTTORE ORARIO/ASTRONOMICO DIGITALE CON GPS memo BT GPS memo BT GPS Digital time/astronomical switch with GPS: User Manual...
- Page 3 Index Program menu: new astro weekly page ■ Technical features page ■ Safety warnings Program menu: new astro yearly page page ■ Dimensions Program menu: new astro holiday page page ■ Wiring diagrams Program menu: check page page ■ Display and keyboard description Program menu: modify page page...
- Page 4 They have one (memo BT1 GPS and memo BT Y1 GPS) or two (memo BT2 GPS and memo BT Y2 GPS) independent relays (channels). In the 2-channel models, the relays can also be configured independently with an hourly (one) and star (the other) programming.
-
Page 5: Technical Features
• Maximum transmitted radiofrequency power: 4 dBm - type relay NO 16A / 250V • Container: 2 DIN modules - number of relays: 1 (memo BT1 GPS and memo BT Y1 GPS), • Protection degree: IP20 EN60259 2 (memo BT2 GPS and memo BT Y2 GPS) •... -
Page 6: Safety Warnings
SAFETY WARNINGS WARNING !!! No isolation between GPS module and power supply n During product installation and operation it is necessary 6) Do not use the product for anything other than the to observe the following instructions: indicated purpose. 7) I n the electrical system upstream of the product must be 1) The product must be installed by a qualified person, installed a protection device against the overcurrents strictly in observance of the connection diagrams shown... -
Page 7: Wiring Diagrams
DIMENSIONS WIRING DIAGRAMS Memo BT1 GPS and Memo BT2 GPS and Memo BT Y1 GPS Memo BT Y2 GPS (-) (+) (-) (+) GEO-2* GEO-2* Optional GPS module input (not isolated). For connections to the GEO-2 refer to the specific instructions of the module. -
Page 8: Display And Keyboard Description
DISPLAY AND KEYBOARD DESCRIPTION Menu activation/output (1 level back) Key “C1”: decreases datum/previous menu/ switching channel General indications 1/lock channel 1 Key “C2”: increases datum/next menu/ switching channel 2/ Time indication Channel 1/channel 2 status indication lock channel 2 Confirm selection channel status blocked switchings Hardware reset... -
Page 9: Initial Operation
INITIAL OPERATION • Once out of the package, memo BT GPS is off: press the key Daylight Saving time (DST) - start of daylight saving time (DST): and wait a moment before activating the display change: active last Sunday of March at 02:00 •... -
Page 10: Start Page (Or Main)
Manual relay 1 switchings START PAGE (or main) • Key “ ” : ON/OFF manual relay switching. When manual switchings are active, on the display information messages the symbol is on date This condition persists until the achievement of the subsequent relay 2 status programmed switching. - Page 11 Access the store of your device, install and start the free app Memo – Vemer. Memo Connect to a new memo Memo BTY2 GPS NEARBY DEVICES VE790500-4416B113 bty2 LAST UPDATE 18-05-2022 09:48:09 DEVICE BTY2 GPS Bluetooth pairing request Enter PIN to pair with VE790500-4416B113 (Try 0000 or 1234).
- Page 12 Create new programs that will then be copied to the memo BT GPS b. Change the settings of the memo BT GPS c. View the parameters and associate an alias (name that identifies the time switch, such as “memo BT1 GPS Belluno”) to the memo BT GPS d.
-
Page 13: Menu Description
MENU DESCRIPTION “Settings” menu allows you to change: language, date, time, daylight saving time (DST), astronomical coordinates, minimum and maximum duration of the interval between two switchings with random program, PIN for keyboard lock. “Programming” menu allows you to set a new program or to check, to copy, to modify or to delete a set program. -
Page 14: Settings Menu
SETTINGS MENU “Settings” menu allows you to view and eventually to modify the general operation settings of memo BT GPS, such as: language date time automatic daylight saving time (DST) change position (astronomical coordinates) interval duration between two random switchings keys protection by PIN - 12 - User manual memo BT GPS... - Page 15 Language setting menu Available languages: Italian, English, Spanish, French, German. Quick access: from the main page it’s possible to access the language setting by pressing the key for at least 3 seconds. - 13 - User manual memo BT GPS...
- Page 16 Date setting menu Parameters modification Parameters modification Possible date formats: day-month-year ( ), year-month-day ( month-day-year ( Choose, by convention, the first day of the week. In Italy, for example, the first day of the week is Monday, in the UK it’s Sunday. Enter the date: day, month, year.
- Page 17 Time setting menu Parameters modification Parameters modification Set the time: hours, minutes. Set the time zone. Range: -14:00 ÷ +14:00 at 15 minutes steps. For Italy set +1:00. - 15 - User manual memo BT GPS...
- Page 18 Daylight saving time (DST)/winter time (CET) change setting menu Daylight saving time (DST) / winter time (CET) change and vice versa can occur in an automatic way. In this case, memo BT GPS: - increases by an hour in the passage from winter time (CET) to daylight saving time (DST) - decreases by an hour in the passage from daylight saving time (DST) to winter time (CET) For every change it’s necessary to specify: the week of the month during...
- Page 19 Parameters modification Parameters modification Choose to activate ( ) or to disable ( ) the automatic time change. Set date and time of the winter time (CET)-daylight saving time (DST) change. Set date and time of the daylight saving time (DST)-winter time (CET) change. - 17 - User manual memo BT GPS...
- Page 20 Astronomical coordinates setting menu The setting of the geographical coordinates of the installation place allows memo BT GPS to calculate, for each day of the year, sunrise and sunset times. To simplify the procedure, in the memo BT GPS are stored the coordinates of the locations listed below; if your location is among them you can select it from the menu , otherwise it’s necessary to enter the coordinates of latitude and longitude (menu Note: if the display at point...
- Page 21 Parameters modification Parameters modification Choose the installation location. If it’s not present, proceed with steps Set the latitude of installation place. Set the longitude of installation location. Set a possible correction of the calculated sunrise time. Positive values to delay, negative values to anticipate.
- Page 22 Random switchings setting menu Parameters modification The “random switching ” function (activated with the combination described on page 6) allows the channel on which it’s active to automa- tically switch and at random time intervals. In this menu it’s possible to define the minimum and maximum duration of the time interval between two random switchings. Default mini- mum duration is 1 minute, maximum duration is 5 minutes.
- Page 23 Protection PIN setting menu The protection code (PIN) is used to lock the keyboard and prevent changes by unauthorized persons. With active PIN protection, pressing any key, it’s necessary to enter the PIN: if PIN is correct the keyboard unlocks; after 3 minutes without pressing a key, the keyboard will lock automatically.
-
Page 24: Program Menu
PROGRAM MENU The menu “program” allows you to: create a new program check created programs change or delete a created program copy all created programs of channel 1 on channel 2 and vice versa (only for memo BT2 GPS and memo BT Y2 GPS) delete all programs of a channel - 22 - User manual memo BT GPS... - Page 25 Select days scroll through the days of the week from 1 to 7: - by pressing the key to move to the next day without selecting the current day - by pressing the key to select/deselect the current day and move to the next - 23 - User manual memo BT GPS...
- Page 26 Programs types • Program ON/OFF: is composed of a switching of the ON relay and of a subsequent switching of the OFF relay. It can have a daily period (everyday with the same modes), weekly (every week with the same modes) or yearly (every year with the same modes). •...
- Page 27 Important: on the same channel can’t coexist ON pulses and OFF pulses (if an ON pulse is already present, it’s not possible to save a holiday OFF program and vice versa). Important: on the same channel can’t coexist holiday ON programs and holiday OFF programs (if a holiday ON program is already present, it’s not possible to save a holiday OFF program and vice versa).
- Page 28 Priority list on/off In case in which, on the same channel, on/off programs are of Monday begins and ends before the beginning of the weekly provided with different period (daily or weekly) to carry out in the program). Instead, the daily program of Sunday is carried out same day, only the program with the highest priority is executed.
- Page 29 Program menu: new Choose the channel Choose the channel to program (only for memo BT2 GPS and memo BT Y2 GPS) - 27 - User manual memo BT GPS...
- Page 30 Program menu: new daily timed Enter program parameters Program parameters - on/off: on time and off time - on pulse: time and pulse duration (max 59 seconds) - off pulse: time and pulse duration (max 59 seconds) - 28 - User manual memo BT GPS...
- Page 31 Program menu: new weekly timed Enter program parameters Program parameters - on/off: day (or days)* and on time, day (or days) and off time - on pulse: day (or days)* and pulse time, pulse duration (max 59 seconds) - off pulse: day (or days)* and pulse time, pulse duration (max 59 seconds) * See “Select days”...
- Page 32 Program menu: new yearly timed Enter program parameters Program parameters - on / off: day (or days) * and on time, day (or days) and off time - on pulse: day (or days) * and pulse time, pulse duration (max 59 seconds) - off pulse: day (or days) * and pulse time, pulse duration (max 59 seconds) * see “How to choose the day (or days) in a yearly program”...
- Page 33 How to choose the day (or days) in a yearly program to set the program: to set the program on the last day: in the first, second, third, fourth or last week of the month of all months of all years in / the day/s (Monday, ...) of the week just specified of the specified VV month of all years the specified month (...
- Page 34 Program menu: new holiday time Enter program parameters HOLIDAY OFF: the relay is OFF from the beginning to the end of holiday program. HOLIDAY ON: the relay is ON from the beginning to the end of holiday program. Program parameters - beginning of the program - end of the program - 32 -...
- Page 35 How to choose the day (or days) in a holiday program to set the program: to set the program on the last day: in the first, second, third, fourth or last week of the month of all months of all years in / the day/s (Monday, ...) of the week just specified of the specified VV month of all years the specified month (...
- Page 36 Program menu: new astro night Choose Night nights programs - 34 - User manual memo BT GPS...
- Page 37 How to select nights scroll through the nights of the week from the first (1-2) to the last (7-1): - by pressing the key key to move to the next night without selecting the current night - by pressing the key to select/deselect the current night and move to the next How to interpret the selection If the night between the days of A and B is selected, the day A is on and underlined while B is on (not underlined).
- Page 38 Night programs Turning on at sunset, turning off during the night. Turning on during the night, turning Turning on at sunset, turning off at sunrise. off at sunrise. No parameter required. Choose one of the three following cases: Turning on at sunset, turning off at a settable time.
- Page 39 Turning on at sunset, turning off during Turning on during the night, turning off at the night. sunrise. Choose one of the 3 following cases: Choose one of the 3 following cases: Turning on at sunset, turning off at a Turning on at a settable time, turning off settable time.
- Page 40 Program menu: new astro daily Enter program parameters Program parameters - on/off: on time and off time - on pulse: time and pulse duration (maximum 59 seconds) - off pulse: time and pulse duration (maximum 59 seconds) - 38 - User manual memo BT GPS...
- Page 41 Program menu: new astro weekly Enter program parameters Program parameters - on/off: day (or days)* and on time, day (or days) and off time - on pulse: day (or days)* and pulse time, pulse duration (max 59 seconds) - off pulse: day (or days)* and pulse time, pulse duration (max 59 seconds) * See “Days selection”...
- Page 42 Program menu: new astro yearly Enter program parameters Program parameters - on / off: day (or days) * and on time, day (or days) and off time - on pulse: day (or days) * and pulse time, pulse duration (max 59 seconds) - off pulse: day (or days) * and pulse time, pulse duration (max 59 seconds) * see “How to choose the day (or days) in a yearly astro program”...
- Page 43 How to choose the day (or days) in a new astro yearly to set the program: to set the program on the last day: in the first, second, third, fourth or last week of the month of all months of all years in / the day/s (Monday, ...) of the week just specified of the specified VV month of all years the specified month (...
- Page 44 Program menu: new astro holiday Enter program parameters HOLIDAY OFF: the relay is OFF from the beginning to the end of holiday program. HOLIDAY ON: the relay is ON from the beginning to the end of holiday program. Program parameters - beginning of the program - end of the program - 42 -...
- Page 45 How to choose the day (or days) in a holiday astro program to set the program: to set the program on the last day: in the first, second, third, fourth or last week of the month of all months of all years in / the day/s (Monday, ...) of the week just specified of the specified VV month of all years the specified month (...
- Page 46 Program menu: check Indication of the memory space (76 of 120) How to check a program choose the channel (only for memo BT2 GPS and memo BT Y2 GPS) choose the period: daily, weekly, yearly, annual, holiday or night (when it is a channel of astronomical type) choose the type: on/off, on pulse, off pulse or a night program (only if it is a channel of astronomical type) Note: a program requires more screens to be displayed: - press the key...
- Page 47 Choose the Choose the Choose the channel period type Check programs - 45 - User manual memo BT GPS...
- Page 48 Program menu: modify Indication of the memory space (76 of 120) How to modify or to delete a program choose the channel (only for memo BT2 and memo BT Y2). choose the period: daily, weekly, yearly, holiday or night (only if it’s an astronomical channel) choose the type: on/off, on pulse, off pulse or a night program (only if it’s an astronomical channel) Note: a program requires more screens to be displayed: - press the key...
- Page 49 Choose the Choose the Choose the channel period type Modify/ Delete programs - 47 - User manual memo BT GPS...
- Page 50 Program menu: copy (only for memo BT2 GPS and memo BT Y2 GPS) Select the origin channel Copy programs “Copy” menu allows copying the programs of a channel (channel origin) on the other channel (channel destination). Note: the programs previously stored on the channel destination will be deleted. - 48 - User manual memo BT GPS...
- Page 51 Program menu: delete Delete programs “Delete” menu is used to delete all stored programs on the specified channel. Note: to delete one single program to see “modify” mode (see page 46). - 49 - User manual memo BT GPS...
- Page 52 BUS VEMER MENU BLUETOOTH MENU The Bluetooth menu allows you to enable or disable the Bluetooth interface and change the password used to associate your device (smartphone or tablet) to memo BT GPS. To enable the Bluetooth interface: set Bluetooth ON Warning: to make the Bluetooth interface active, the memo BT GPS must be mains powered and connected to the main page (see page 8).
- Page 53 Password change Changing the password The password is the 6-digit code required by the app for the first association between memo BT GPS and smartphone The pre-set password is 123456 but can be changed. Press the key for at least 3 seconds until the first digit of the password starts to flash.
- Page 54 GPS MENU GPS menu allows you to enable or disable the presence of the additional GEO-2 module. GEO-2 is a GPS module that allows you to capture the information of date, time and location from satellites and then to transfer them to memo BT GPS.
- Page 55 GPS status GPS status GEO-2 module has hooked a sufficient number of satellites for a correct synchronization. Memo BT GPS displayes the number of hooked satellites (10 in this case) and hour of the last synchronization. The GEO-2 has not communicated with the memo BT GPS for more than an hour: check the connection diagrams in this manual or check the integrity of the GEO-2 module.
- Page 56 HOUR COUNTER MENU “Hour counter” menu allows you to display the hours of use (relay on) of connected loads. The maximum value of the counter is 99999 hours (about 11 years); reached the maximum limit, the counter resets automatically. To reset a counter: 1.
- Page 57 Confirm delete - 55 - User manual memo BT GPS...
-
Page 58: Reset Menu
RESET MENU “Reset” menu allows you to restore the initial state of the device. Available resets: Settings reset: deletes all the carried out settings (except the language and the PIN) Time programs reset: deletes all saved time programs Holiday programs reset: deletes all saved holiday programs Astro programs reset: deletes all saved astronomical programs Counter reset: resets the counters of all channels Reset all: carries out all the above described resets and deletes the language and PIN protection... - Page 59 - 57 - User manual memo BT GPS...
-
Page 60: Firmware Menu
FIRMWARE MENU This menu shows the firmware installed in the device, where: 010 is the revision index 01 is the month 26 is the day - 58 - User manual memo BT GPS... -
Page 61: Error Signals
* In this case, carry out a hardware reset (see page 56). ERRORE006 already stored an off pulse (see page 25) If the error persists, contact Vemer technical support Attempt to set an off pulse on a channel where is (tel.+ 39.0439.879885). -
Page 62: Battery Management
EU CONFORMITY DECLARATION appears . In this case, the battery must be replaced as Vemer declares that the device complies with the EU directive soon as possible. Use only batteries of CR2032. 2014/53/EU (RED) with reference to the following standards:... - Page 64 Vemer S.p.A. I - 32032 Feltre (BL) • Via Camp Lonc, 16 08-2022 e-mail: info@vemer.it - web site: www.vemer.it...
