- Page 1 Portable Electric Winch Hoist 1000 lbs. Rechargeable Battery Powered Wireless User’s Manual / Manual de usuario Safety Warnings / Advertencias de Seguridad...
- Page 2 This page intentionally left blank...
-
Page 3: Table Of Contents
General Enviromental Precautions...................12 Falling or Crushing......................... 13 SPECIFICATIONS......................14 Operation Instruction........................14 T1000 Display Screen........................15 Battery Mount, Status & Charging................... 16 Operation ............................19 Product Maintenance........................22 Battery Mount, Status & Charging................... 16 PROWINCH® WARANTY.....................23 TECHNICAL SPECS......................24 PWPT1000............................24 MAPS PROWINCH® ....................26... - Page 4 This page intentionally left blank...
-
Page 5: Prowinch® Disclaimer
For purposes of enforcing the warranty of the product purchased, Prowinch® LLC, will only be liable for any damage when proven the user has followed each one of the warnings contained in the User Manual and Safety. -
Page 6: Pwpt

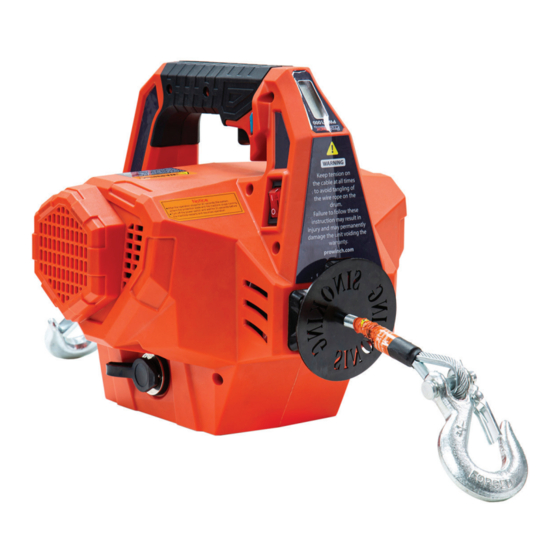

Charger PWPT1000 The Wireless Control System, Prowinch 1000 lbs Portable Electric Winch / Hoist with Wireless Remote Control Battery Powered comes standard with one Li-ion Rechargeable battery and a Wireless / Pendant control. The total wire rope length is 13’. - Page 7 PWPT Variable Speed Switch Direction Switch Power Switch Swiveling Anchor Hook T 1.0 Display Screen Stopping Plate Charging Dock Wire rope Battery V.04.23 [LM]...
-
Page 8: Safety Precautions
Read this User Manual before installing, operating, or maintaining product. 2. SAFETY PRECAUTIONS Prowinch® Electric Winch Hoist is designed for safe and reliable service if operated according to User Manual. Respect all warnings for personnel and third party safety. Inadequate operation may cause injuries or damage equipment. - Page 9 SAFETY PRECAUTIONS WARNING: DANGER: This symbol indicates unsafe practices This symbol indicates a potentially or situations which may cause damage dangerous situation which if not to the property and even injuries to the avoided may cause severe injuries personnel. or death All operators and other users who are near the steel chain or its load must wear required safety equipment: gloves, safety helmet / hard hat, safety shoes and eye protection.
-
Page 10: During Operation
SAFETY PRECAUTIONS Before using equipment: • Read and understand the instructions in this User Manual and labels associated with hoist before operating equipment. • Wear appropriate clothing: Do not wear jewelry or loose clothes as they may attach to chain or hook. •... - Page 11 SAFETY PRECAUTIONS Do not exceed winch or Keep the battery fully charged Always inspect winch rope, winch rope rated capacity. Check always. hook, and slings before operating the quality of the electrical winch. Frayed, kinked or damaged winch rope must be replaced\ immediately.
-
Page 12: General Enviromental Precautions
SAFETY PRECAUTIONS ELECTRICAL HAZARD • Never charge battery in damp or wet environment • Always disconnect charger when battery is fully charged • Never probe with conductive object • Always fully charge battery before use • Never completely discharge battery •... -
Page 13: Falling Or Crushing
SAFETY PRECAUTIONS FALLING OR CRUSHING Never attach the recovery strap to the pulling tool hook to increase the length of a pull • Always use a hook with a latch • Always ensure the hook latch is closed and not supporting a load •... -
Page 14: Specifications
Speci cations Operation Instructions Battery Indicator light Green light one: Winding the rope out Green light two: Winding the rope out Red light: Winding the rope out 1. Press the power switch (“ON”) of pulling tool, the display light is on. Press the direction switch “... -
Page 15: T1000 Display Screen
Speci cations T1000 Display Screen Battery Power Display Unwinding Winding Malfunction or protection 1. Display of battery power: ve grids are green. When the battery displays only one grid, you must charge battery. 2. Pulling out cable and winding back cable status indicators are displayed in green. 3. -
Page 16: Battery Mount, Status & Charging
Speci cations Battery mount, status & charging 1. Battery installation and unloading Please con rm that the power switch is in the “OFF / O” position during the installation. The battery release button must be at the top. Align the contact point of the battery against the corresponding contact point on the battery slot, slide the battery in, and gently press until the battery is locked in place. - Page 17 Speci cations 3. Charge You need to use the original charger to charge the battery, after the battery loaded into pulling tool, insert the power cord of the charger into power outlet, and the insert the plug of the charger into the charging port of pulling tool: 1.
- Page 18 Speci cations 4. Charging note • Make sure the machine is turned OFF when charging. This will prevent damage to the machine and battery. • Never use a pulling tool while charging. • When the battery temperature is higher than 158° F or below - (-4° F), the battery will stop the discharge. To protect the battery, you need to wait for the battery to cool down to room temperature before using the product again.
-
Page 19: Operation
Speci cations Operation Before using this machine to lift or pull a load, you should familiarize yourself with your machine. It is essential to know how it works. This tool is a portable machine for lifting and pulling. This powerful tool has a power switch, a directional switch, and a speed controller. - Page 20 Speci cations Operation Take the time and practice running your machine before pulling or lifting any load to ensure all operations are familiar. The following steps describe how to use the tool with a single cable. A snatch block can improve the pulling capacity. 1.
- Page 21 Speci cations 11. Disconnect the hook from the load and anchor point. Be sure to secure the load entirely. Press the directional switch to “ “, then press and hold the speed controller to release tension in the cable. Disconnect the hook from the load and anchor point. 12.
-
Page 22: Product Maintenance
Speci cations Product Maintenance When there are some problems with the machine, please follow the table to solve them. Number Problem Solution to Malfunction The product failure light It’s normal phenomenon indicates the load (red light) light up and reaches more than 80% of the rated load, which needs attention. -
Page 23: Prowinch® Waranty
PROWINCH authorized personnel. Return of the product with a copy of proof of purchase to PROWINCH, freight prepaid and insured, are required for this warranty to be e ective. If more than one year has elapsed from purchase date, proof of periodic and regular mainte- nance by an authorized service must also be provided for this warranty to be e ective. -
Page 24: Technical Specs
Technical Specs PWPT1000 Portable Electric Winch Hoist 1000 lbs. Rechargeable Battery Powered Wireless Dimensions in mm PARAMETERS SPECIFICATIONS Rated Line Pulls 1000 Lbs. ( 454 Kg) Power Supply 25.2V DC Cable Ø6mm x 14.8 Ft Battery Lithium Battery Battery Capacity 2.5 AH... - Page 25 Technical Specs Pulling tool and accessories Item Description Quantity Pulling Tool Battery Charger Hook V.04.23 [LM]...
