Summary of Contents for Prowinch PWPT1000

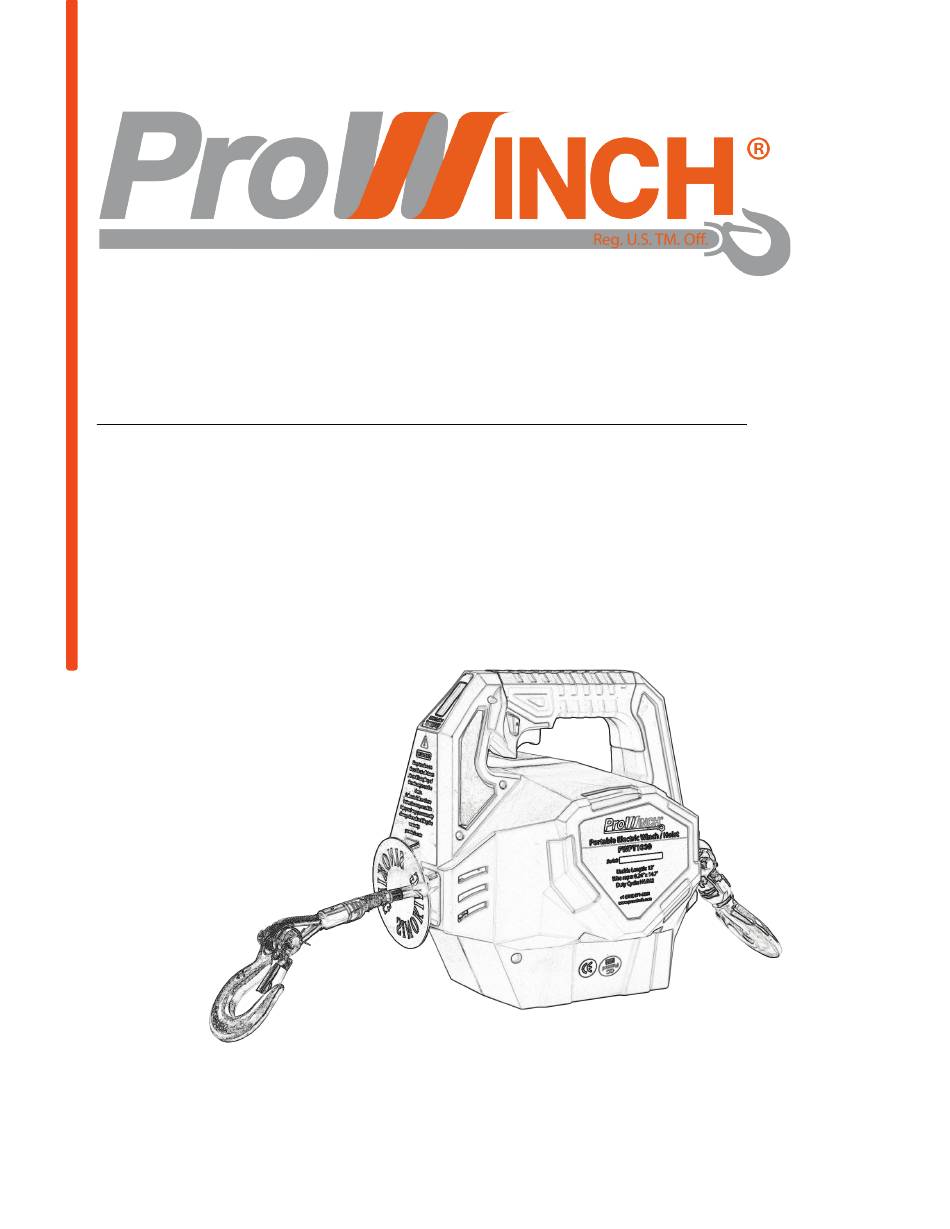

- Page 1 Portable Electric Winch Hoist 1000 lbs. Rechargeable Battery Powered Wireless User’s Manual / Manual de usuario Safety Warnings / Advertencias de Seguridad...
- Page 2 User Manual and Security Warnings corresponding to the unit purchased. In this sense, Prowinch® LLC will not be liable for accidents and / or damages to persons and / or property resulting from the negligent use of the product. In no case does Prowinch® LLC assume any liability arising from the use of these voluntary rec- ommendations, and does not offer any guarantee in relation to them.

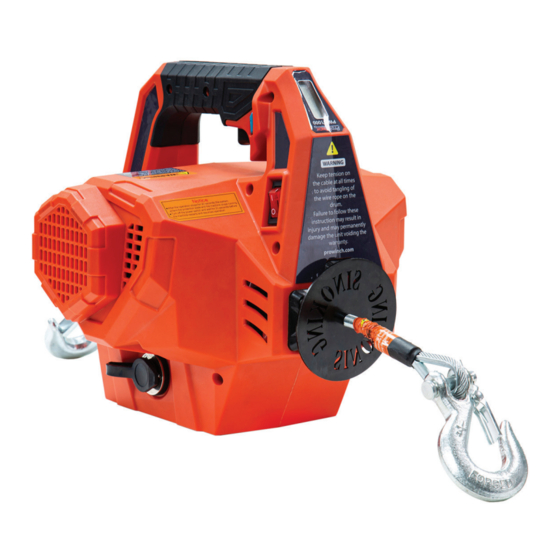

- Page 3 Direction Switch Power Switch Swiveling Anchor Hook Wireless Control System Prowinch 1000 lbs Portable Electric Winch / Hoist with Wireless Re- mote Control Battery Powered comes standard with one Li-ion Rechargeable battery and a T 1.0 Display Screen Wireless / Pendant control. Total wire rope length 13’ . Cooling System The cooling fan of this...
-
Page 4: Safety Precautions
Safety Precautions Safety Precautions Safety Precautions Thank you for purchasing our Prowinch® Electric Winch/Hoist. This User Manual provides WARNING: DANGER: important information for personnel involved with installation, operation, and mainte- This symbol indicates unsafe prac- This symbol indicates a potentially nance of this product. -
Page 5: During Operation
Safety Precautions Safety Precautions Before using equipment: • Read and understand instructions in this User Manual and labels associated with winch hoist before oper- ating equipment. • Wear appropriate clothing: Do not wear jewelry or loose clothes as they might get attached to winch or hook. - Page 6 Safety Precautions Safety Precautions ELECTRICAL HAZARD FALLING OR CRUSHING • Never attach recovery strap to the pulling tool hook to increase the length of a pull • • Never charge battery in damp or wet environment Always use a hook with a latch •...
-
Page 7: Specifications
Specifications Specifications Operation Instructions T1000 Display Screen Battery Indicator light Battery Power Display Green light one: Unwinding Winding the rope out Green light two: Winding Winding the rope out Red light: Malfunction or protection Winding the rope out Press the power switch (“ON”) of pulling tool, the display light is on. Press the direction Display of battery power: five greeds are green. - Page 8 Specifications Specifications Battery mount, status & charging Charge You need to use the original charger to charge the battery, after the battery loaded into pulling tool, Battery installation and unloading insert the power cord of the charger into power outlet, and the insert the plug of the charger into the During the installation, please confirm that the power switch is at “OFF / O”...
-
Page 9: Operation
Specifications Specifications Operation Charging note Before using this machine to lift or pull a load, you should familiarize with your machine and it is im- • Make sure the machine is turned OFF when charging, this could avoid damaging the machine and portant to know how it works. - Page 10 Specifications Specifications Operation Operation Take some time and practice using it before pull or lift a load, that way you will be familiar with all the opera- Disconnect the hook from load and anchor point. Be sure to secure the load completely. Press tions.
-
Page 11: Product Maintenance
(red light) light up and reaches more than 80% of the rated load, which intended use. Within this period, PROWINCH will only repair or replace free of charge any part on a product, af- flashes. needs attention. -
Page 12: Technical Specs
Technical Specs Technical Specs Pulling tool and accessories PWPT1000 Portable Electric Winch Hoist 1000 lbs. Rechargeable Battery Powered Wireless Dimensions in mm PARAMETERS SPECIFICATIONS Rated Line Pulls 1000 Lbs. ( 454 Kg) Power Supply 25.2V DC Cable Ø6mm x 14.8 Ft... - Page 13 2264-1100 ® ® Lima, Peru ® www.prowinch.pe ® +51 935402797 ® ® ® EQUIPOS DE IZAJE PROWINCH CHILE SPA PROWINCH COLOMBIA SAS www.prowinch.cl www.prowinch.co Parque Riesco 3407, Recoleta, Cl. 163a #20-28, Región Metropolitana, Chile Bogotá Colombia (+57) 1 7034035 +56-2-26218989...
