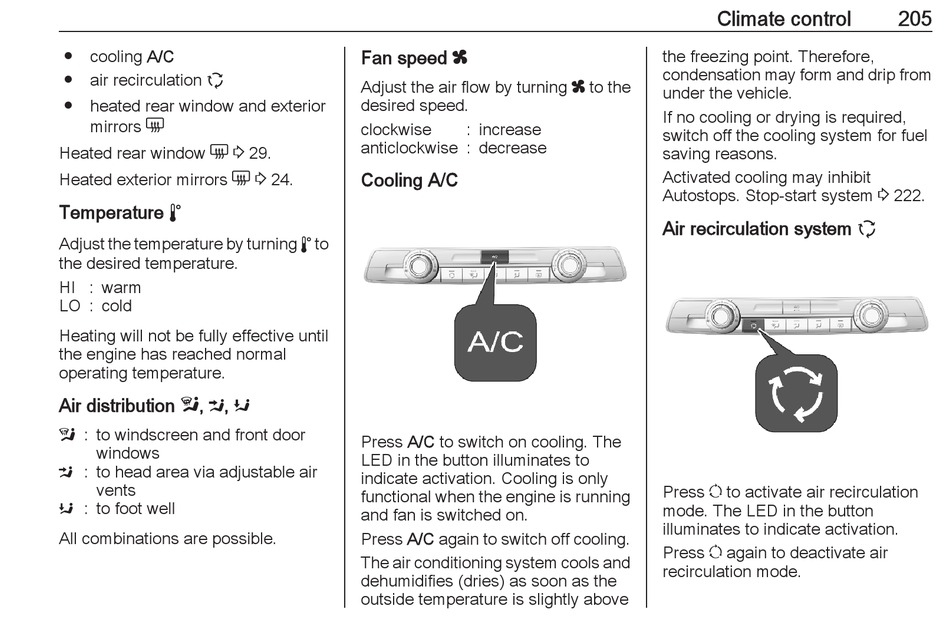

Hi : Warm Lo : Cold; Heating Will Not Be Fully Effective Until; The Engine Has Reached Normal; Operating Temperature - Vauxhall COMBO Owner's Manual

● cooling A/C
● air recirculation q
● heated rear window and exterior
mirrors e
Heated rear window e 3 29.
Heated exterior mirrors e 3 24.
Temperature n
Adjust the temperature by turning n to
the desired temperature.
HI : warm
LO : cold

Heating will not be fully effective until

the engine has reached normal

operating temperature.

Air distribution l, M, K

l : to windscreen and front door

windows

M : to head area via adjustable air

vents
K : to foot well

All combinations are possible.

Fan speed x

Adjust the air flow by turning x to the
desired speed.
clockwise : increase
anticlockwise : decrease
Cooling A/C
Press A/C to switch on cooling. The
LED in the button illuminates to
indicate activation. Cooling is only
functional when the engine is running
and fan is switched on.
Press A/C again to switch off cooling.
The air conditioning system cools and
dehumidifies (dries) as soon as the
outside temperature is slightly above
Climate control
the freezing point. Therefore,
condensation may form and drip from
under the vehicle.
If no cooling or drying is required,
switch off the cooling system for fuel
saving reasons.
Activated cooling may inhibit
Autostops. Stop-start system 3 222.
Air recirculation system q
Press u to activate air recirculation
mode. The LED in the button
illuminates to indicate activation.
Press u again to deactivate air
recirculation mode.
205
