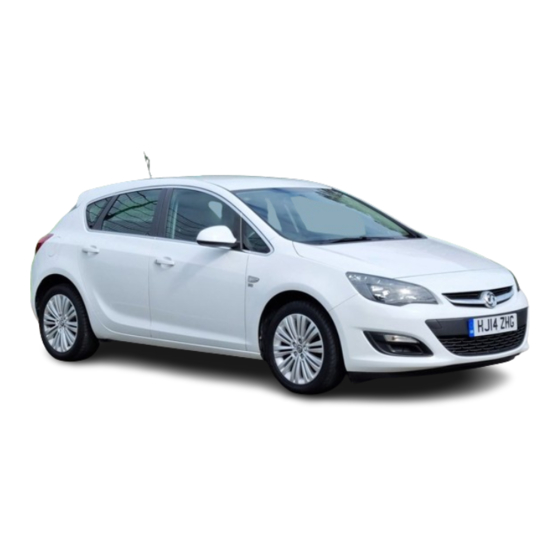

Vauxhall Astra 2014 Infotainment Manual
  1. Manuals
  2. Brands
  3. Vauxhall Manuals
  4. Automobile
  5. Astra 2014
  6. Infotainment manual

Vauxhall Astra 2014 Infotainment Manual

Kta-2733/2-vx-en
Hide thumbs Also See for Astra 2014:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
Infotainment Manual Model Year 2014 Edition: July 2013 KTA-2733/2-VX-en
0 - 1
VAUXHALL Astra
Infotainment Manual
Model Year 2014
Edition: July 2013
KTA-2733/2-VX-en

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Astra 2014 and is the answer not in the manual?

Questions and answers

Related Manuals for Vauxhall Astra 2014

Summary of Contents for Vauxhall Astra 2014

  • Page 1 Infotainment Manual Model Year 2014 Edition: July 2013 KTA-2733/2-VX-en 0 - 1 VAUXHALL Astra Infotainment Manual Model Year 2014 Edition: July 2013 KTA-2733/2-VX-en...
  • Page 2 Contents CD 30 / CD 30 MP3 ....... 3 Mobile phone portal ..... 31...
  • Page 4 CD 30 / CD 30 MP3 Introduction ........4 Radio ........... 15 CD Player ........22 AUX input ........26 Index ..........28...

  • Page 5: Table Of Contents

    Introduction Introduction General information In addition the Infotainment system can be equipped with a Mobile phone The Infotainment system provides portal. you with state-of-the-art in-car Optionally, the Infotainment system infotainment. General information ....... 4 can be operated using controls on the The radio has nine automatic station steering wheel.

  • Page 6: Theft-Deterrent Feature

    Introduction Important information on The Infotainment system therefore functions only in your vehicle and is operation and traffic safety worthless for a thief. 9 Warning The Infotainment system has to be used so that the vehicle can be driven safely at all times. If in doubt stop your vehicle and operate the Infotainment system while the vehicle is stationary.

  • Page 7: Overview

    Introduction Overview Control elements...
  • Page 8 Introduction RDS ........17 m ......... 11 10 OK ........... 9 Display programme name Confirm selection or page Radio: Page back in or transmission frequency forward in settings menu ..9 station memory, manual of the station ......17 and automatic station 11 n .........

  • Page 9: Press: Gid: Call Up/Reset

    Introduction Steering wheel audio controls Press: TID: no function ... 9 c button ......... 15 Press: GID: call up/reset Radio: search down, scroll trip computer, select a trip back through station computer entry ......9 memory ......... 15 q button ....... 15 CD: Short press: Skip one track backwards ....

  • Page 10: Operation

    Introduction The steering wheel remote control Switching on and off with the ignition Enable/Disable Ignition Logic has other functions in conjunction key (automatic switch-on) TID only: with the Mobile phone portal, see If the automatic switch-on is enabled, 1. Press SETTINGS button to chapter for Mobile phone portal.

  • Page 11: Aux Input

    We recommend having appliances Press n button and then OK button other audio sources (e.g. radio) installed by a Vauxhall Authorised to leave the Settings menu. 3 12. Repairer. ■ If the respective source is enabled,...

  • Page 12: Tone Settings

    Introduction To avoid overriding the AUX input, the Audio Information effective output voltage of the Display of the following audio external audio source must be lower information: than 1.5 V. ■ Current waveband or AUX/CD. ■ Current station name or station Main display frequency or CD track number or The main menu is the display that...

  • Page 13: Volume Settings

    Introduction ■ Treble Press one of the function buttons After a few seconds the most TUNER, MEDIA or BC to display the recent display reappears. ■ Sound relevant function. Setting the volume distribution Press one of the function buttons Setting Bass and Treble between front - rear TUNER, MEDIA or BC to display the Make sure that any sound...
  • Page 14 Introduction The following menu items are 4. Adjust the value with m or n. The volume is only set to a minimum available: for announcements if the current After a few seconds the most volume setting is lower than the ■...
  • Page 15 Introduction On Volume 1. Press the SETTINGS button. 2. Press the OK button repeatedly 1. Press the SETTINGS button. until the relevant function is 2. Press the OK button repeatedly displayed. until the relevant function is 3. Adjust the value with m or n. displayed.

  • Page 16: Usage

    Radio Radio Usage Station search Radio mode Station selection, automatic search Switch from CD or AUX mode to radio Usage .......... 15 mode as shown below: FM waveband is selected and RDS Station search ......15 3 17 switched on. Press TUNER button.

  • Page 17: Autostore Lists

    Radio If the radio cannot find a station, it If RDS 3 17 is deactivated in the FM The station tuned-in is audible again switches automatically to a more and is displayed. waveband or the AM waveband is sensitive search level (not DAB). If it active, tapping m or n moves the The station is stored in the desired still cannot find a station, the last...

  • Page 18: Radio Data System (Rds)

    Radio The AS level can also be activated After the stations have been stored, Press the AS button to activate the AS and deactivated using the FM/AM the desired station can be selected by level. button 3 15. pressing the appropriate station Select the storage location with the button.
  • Page 19 Radio RDS is only possible on the FM band. To deactivate RDS, press the RDS Programme type (PTY) button again. Many RDS stations transmit a PTY Switching RDS on/off code describing the type of If the RDS function is not switched on, If RDS is switched on, the RDS programme broadcast (e.g.
  • Page 20 Radio Switching on/off regionalisation If the reception quality of the regional Switching traffic programme on/off programme is no longer sufficient for The RDS function must be switched ■ If radio traffic announcement is interference-free reception, the radio enabled, [TP] or [ ] is displayed. switches to another regional Press the REG button briefly to switch ■...

  • Page 21: Digital Audio Broadcasting

    Radio ■ If on standby for traffic Traffic announcements are played at DAB stations are indicated by the announcement is switched on, then the preset volume for traffic programme name instead of the CD playback or DAB reception are announcement 3 12. broadcasting frequency.
  • Page 22 Radio ■ If the DAB signal is reflected by Scrolling through ensembles Press the OK button to display DAB natural obstacles or buildings, the AF On or Off, indicating the current You can scroll through ensembles reception quality of DAB is state of that setting.
  • Page 23 CD Player CD Player General information ■ Self-recorded CD-Rs and CD-RWs are more vulnerable to mishandling With the CD player you can play than prerecorded CDs. Correct standard commercial CDs with a handling, especially in the case of diameter of 12 cm. self-recorded CD-Rs and CD-RWs, General information .....

  • Page 24: Track Selection

    CD Player Applicable playlist extensions: Read CD and CD in appears on the Track selection "m3u" or "pls". display, then the number of CD tracks To select a track while a CD is is displayed. playing, tap on m or n repeatedly When generating (coding) the MP3 files from audio data, a bitrate of up until the desired track is displayed.
  • Page 25 CD Player The first track on the album is MP3 CD: Audio CD with CD text: displayed and played. ■ Random album: Random playback ■ Track name All albums which do not contain MP3 of the tracks of an album ■...
  • Page 26 CD Player Eject CD appears on the display. If a CD is ejected, the last radio station used will automatically be played. A CD can be ejected even if the appliance is turned off. The appliance switches off after the CD has been removed.

  • Page 27: Aux Input

    AUX input AUX input General information Enable the external audio source and set it to maximum volume. The connector is located in the area If required: adjust the AUX input level of the centre console. in relation to the connected external Note General information .....
  • Page 28 AUX input...
  • Page 29 Index Activating CD player..... 23 Fader..........11 AM..........15 FM..........15 AS..........16 Automatic search......15 General information.... 4, 22, 26 Automatic switch off......9 Autostore level......16 Autostore lists....... 16 Ignition logic........9 AUX input......... 9, 26 socket........26 AUX volume........
  • Page 30 SDVC..........12 Volume........... 9 Setting the volume......9 Volume settings......12 Sound settings......11 Speed dependent volume control (SDVC)......12 Starting CD replay......23 Station list........15 Station memory......15 Station search....... 15 Store..........15 Switching the Infotainment system on or off......9 TA volume........
  • Page 32 Mobile phone portal Introduction ........32 Voice recognition ......45 Index ..........50...
  • Page 33 Information on telephone-specific radio. The menu-driven operations adapters for the mobile telephone is and status are shown via the info available from your Vauxhall display. Authorised Repairer. The fact that the most important Not all Mobile phone portal functions content on the telephone display is are supported by every phone.
  • Page 34 Introduction Declaration of conformity Do not forget to follow the special 9 Warning We hereby declare that the Mobile regulations that apply in specific phone portal is compliant with the areas and always switch off the The Infotainment system has to be basic requirements and other mobile phone if the use of mobile used so that the vehicle can be...

  • Page 35: Turn: Adjust Volume

    Introduction Charging the telephone Selection of the functional ranges in 1 Thumbwheel the headline and additional batteries Turn: select menu items and operations are described below: As soon as the Mobile phone portal commands has been switched on and the Steering wheel remote control system Press: confirm a selection (OK) telephone has been slotted into the...
  • Page 36 A connection can be created between for your mobile telephone from your instructions. a mobile telephone and the Vauxhall Authorised Repairer. Fasten the adapter to the base plate Infotainment system via: For information on the Bluetooth™ Ensure that the contacts are ■...

  • Page 37: Bluetooth Connection

    Introduction Insert the mobile telephone into the If Bluetooth™ has been deactivated, adapter proceed as follows: Ensure that the contacts are 1. Select the Bluetooth menu item. connected properly. You must hear a If Bluetooth™ has been activated, click sound when the mobile the remaining menu items will telephone is being inserted appear on the display.
  • Page 38 Introduction 5. Select the Start searching menu the display of the mobile The Paired devices menu item. telephone. appears on the display. During the search process for 7. Using the keypad on the mobile Bluetooth™ devices, the word telephone, enter the same Searching...

  • Page 39: Emergency Call

    Introduction Emergency call 3. Deactivate Connect. instructions for the mobile telephone). The message Disconnected! appears followed once again by The message "Device found: 9 Warning the Bluetooth™ menu. UHP" appears on the display of the mobile telephone. Connection setup cannot be 4.

  • Page 40: Settings

    Introduction After a connection has been created functions are active. You can 9 Warning between the mobile telephone and enquire about this with the local the Infotainment system, data is network operators. Do not end the call until you are transferred from the mobile telephone requested to do so by the The emergency call number can...

  • Page 41: Thumbwheel

    Introduction In addition to operating using the ■ When the correct PIN code has steering wheel remote control been entered and confirmed, the system, some functions can also be previously selected menu appears operated using a speech recognition on the display. system 3 45.
  • Page 42 Introduction Dial different, the phone book is loaded Under Phone book, select the desired afresh. This process may take a few entry. Dialling the telephone number minutes, depending on telephone manually A list of all numbers stored under this model. The new entries are only entry appears on the display.
  • Page 43 Introduction Select the desired entry and start the Move the thumbwheel. dialling process. A context menu is opened. Incoming calls When a call is incoming, a selection menu appears for accepting or refusing a call. Accepting calls Select the Accept menu item. Select menu item Filtering.
  • Page 44 Introduction Mobile phones and CB The DTMF menu is displayed. Seek advice on predetermined installation points for the external radio equipment antenna or equipment holder and ways of using devices with a Installation instructions and transmission power exceeding 10 operating guidelines watts.
  • Page 45 Introduction Caution Mobile telephones and radio equipment may lead to malfunctions in the vehicle electronics when operated inside the vehicle with no exterior antenna, unless the above mentioned regulations are observed.

  • Page 46: Voice Recognition

    Voice recognition Voice recognition Voice recognition Before you dial a telephone number, the following preconditions must exist: The speech recognition system ■ The mobile telephone must be enables you to operate some of the Voice recognition ......45 ready for operation and slotted into mobile telephone’s functions by voice the telephone-specific adapter, or a input.
  • Page 47 Voice recognition Ending the dialogue The Infotainment system ■ "Delete": The PIN code is deleted. simultaneously reacts to commands There are various ways to deactivate ■ "Additional digits": Additional with voice messages and displays. the speech recognition system and numbers can be entered. end the dialogue: Example of a dialogue whereby a PIN SIM card...
  • Page 48 Voice recognition ■ "Delete" ■ "Call" or "Accept": The inputs are In order to make a foreign call, you accepted. can say the word "Plus" (+) in front of ■ "Phonebook" the number. The plus allows you to ■ "Change": The last block of ■...
  • Page 49 Voice recognition User: "One One Nine Nine" "Redial" It can happen that the two names input are too different for the speech Using the "Redial" command, the Voice output repeats: "One One Nine recognition system, which then number most recently dialled can be Nine"...
  • Page 50 ■ "Help": The dialogue is ended and pre-set languages to be shown on the Voice output: "One One Nine One" all commands available in this display. Contact your Vauxhall context are listed. User: "Save" Authorised Repairer to activate a Example of how to dial a telephone Instead of "Save"...
  • Page 51 Index Accepting calls......39 Hang-up........39 Activating speech recognition..45 Lists..........39 Bluetooth connection....36 Making telephone calls....39 Call lists........39 Micro off........39 Changing the language....45 Mobile phones and CB radio Connection........35 equipment ........ 43 Cradle........... 35 Name..........
  • Page 52 Telephone numbers..... 39 Telephone-specific adapter..35 Voice recognition ......45...
