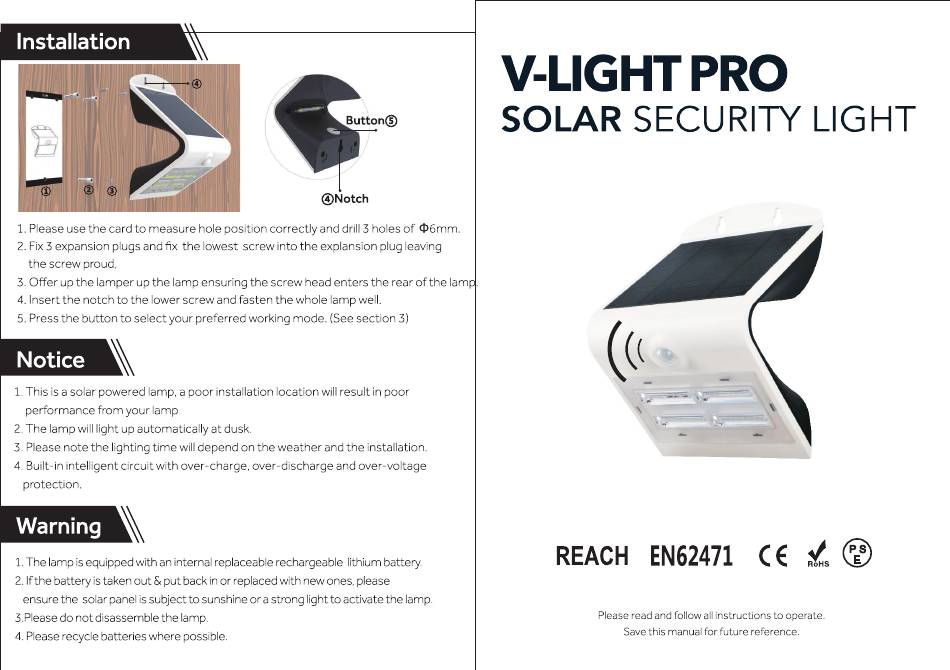

solarcentre V-Light Pro Instructions

Installation

④
②
③
①
1. Please use the card to measure hole position correctly and drill 3 holes of Φ6mm.
2. Fix 3 expansion plugs and fix the lowest screw into the explansion plug leaving
the screw proud,
3. Offer up the lamper up the lamp ensuring the screw head enters the rear of the lamp.
4. Insert the notch to the lower screw and fasten the whole lamp well.
5. Press the button to select your preferred working mode. (See section 3)

Notice

1. This is a solar powered lamp, a poor installation location will result in poor
performance from your lamp
2. The lamp will light up automatically at dusk.
3. Please note the lighting time will depend on the weather and the installation.
4. Built-in intelligent circuit with over-charge, over-discharge and over-voltage
protection.

Warning

1. The lamp is equipped with an internal replaceable rechargeable lithium battery.
2. If the battery is taken out & put back in or replaced with new ones, please
ensure the solar panel is subject to sunshine or a strong light to activate the lamp.
3.Please do not disassemble the lamp.
4. Please recycle batteries where possible.
Button⑤
④Notch
Please read and follow all instructions to operate.
Save this manual for future reference.
