[211 Hd] Flywheel Housing; [211 Ja] Main Bearing Cap - Mack E7 Service Manual

5-101.bk Page 28 Friday, March 17, 2006 11:05 AM

[211 HD] FLYWHEEL HOUSING

Refer to Figure 4-35.
1. Remove eight mounting capscrews (3) from
flywheel housing (2).
2. Remove flywheel housing. It may be
necessary to tap lightly on the housing with
a soft mallet to separate housing from
engine block.
1
1
3

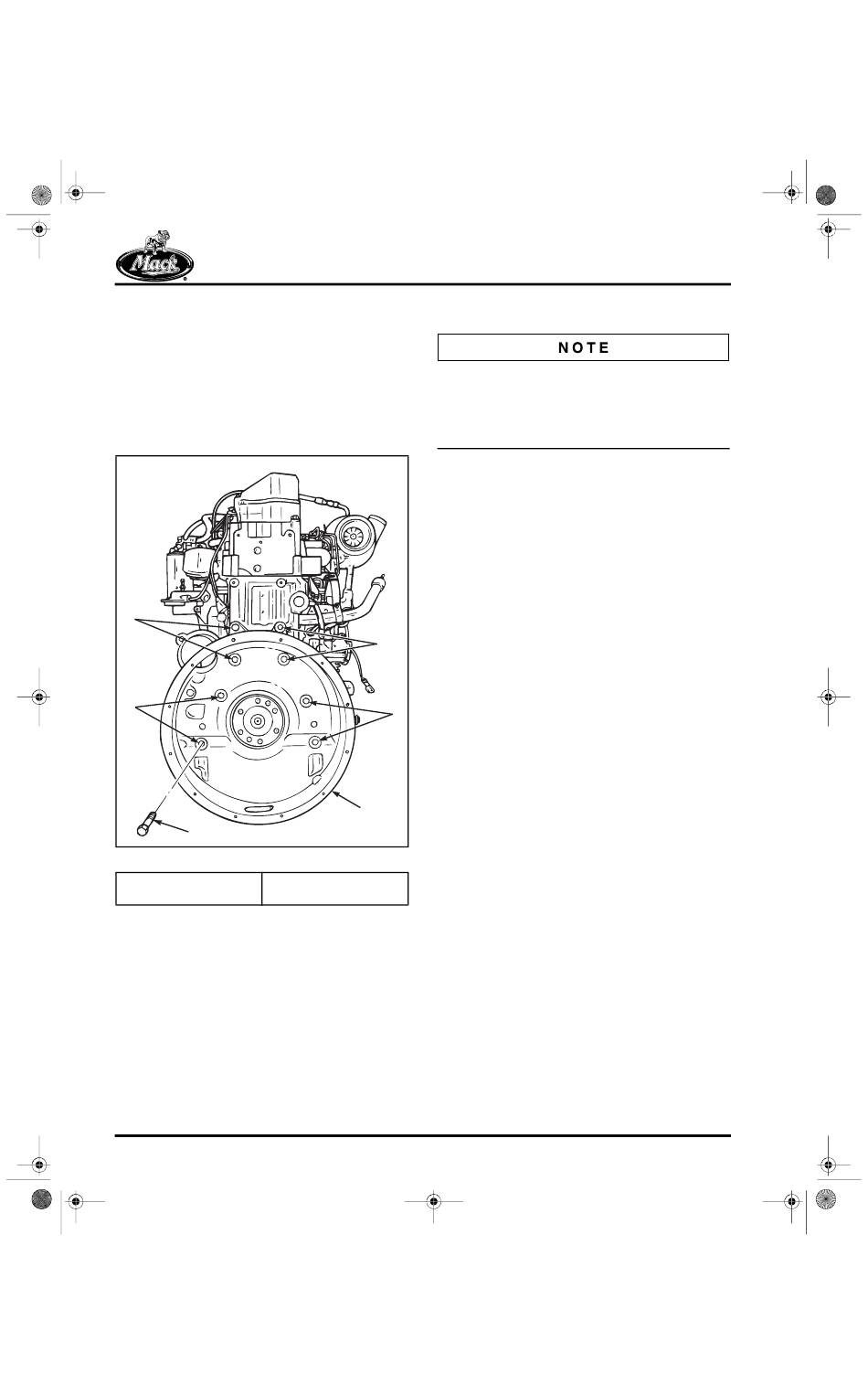

Figure 4-35 — Flywheel Housing Removal
1. Capscrew locations
2. Flywheel housing
Page 4-28
200 ENGINE DISASSEMBLY
1
1
2
200366a
3. Capscrew

[211 JA] MAIN BEARING CAP

Before removing main bearing caps, ensure they
are marked so they can be reinstalled on the
same journals. Keep the bearings with the same
cap and tag or mark them to identify the cam side
of the bearings.
Refer to Figure 4-36.
1. Remove eight buttress capscrews (2 and 3).
2. Remove main bearing capscrews (1) from
each of the seven bearing caps (4 and 5).
The center main bearing cap (5) houses the
thrust washers.
3. Position a lady-foot pry bar under the tabs
provided on bearing caps and pry bearing
caps upward. To work them loose, it may be
necessary to tap the bearing caps
alternately from side to side with a soft
mallet.
