200 ENGINE ASSEMBLY
[212 VC] FLYWHEEL (E7
ENGINE WITHOUT POINTER
ON TIMING COVER)

Description

The flywheel has a stamped timing scale of TDC
to 45 degrees of engine travel for setting and
checking injection pump to engine timing. It also
has three stamped locations, 120 degrees apart,
for valve settings.

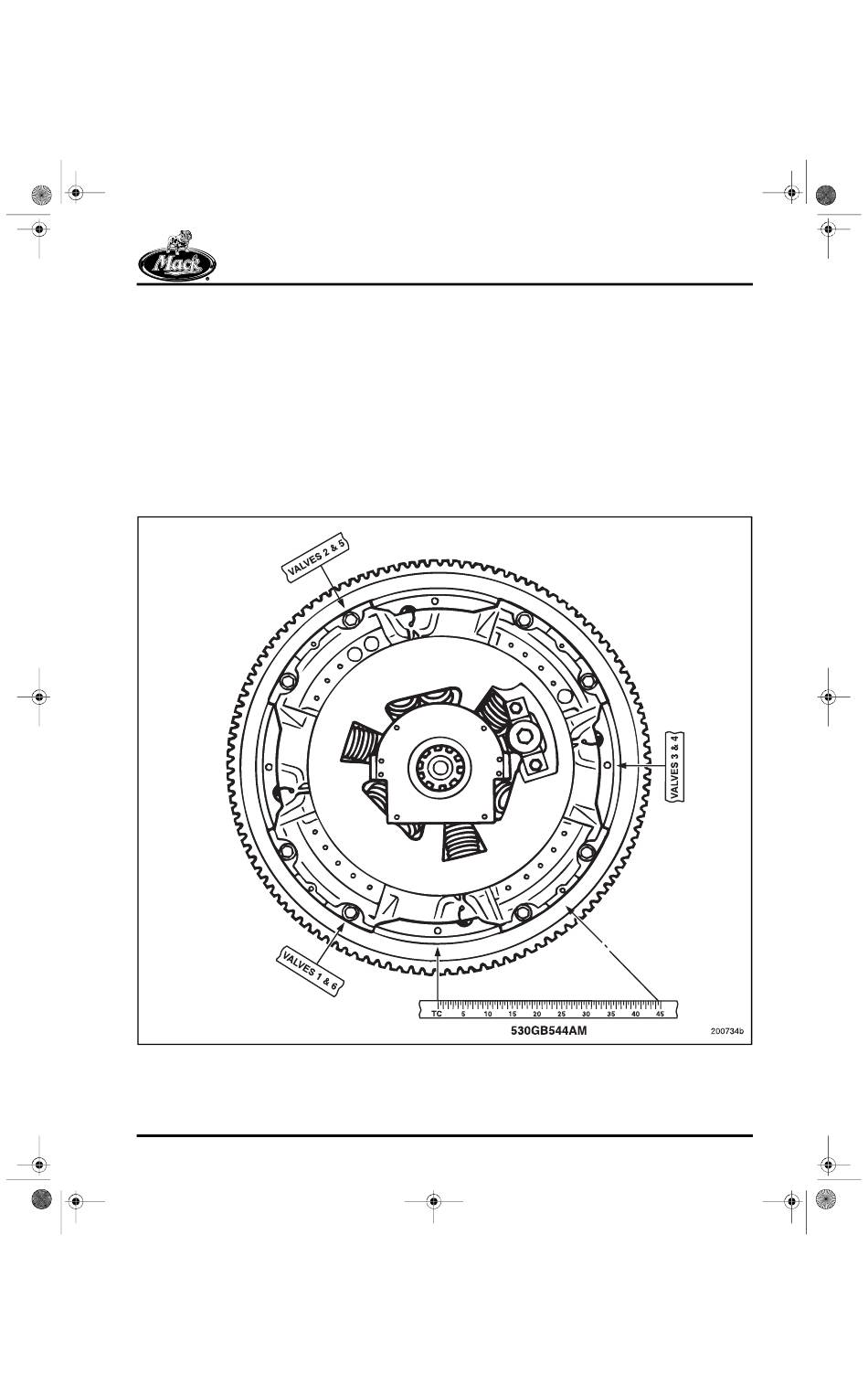

Figure 6-40 — Flywheel Markings
Page 6-35
