5. With the fuel injection pump positioned over
the alignment dowels, in one motion, lift the
rear of the pump and slightly rotate the
Econovance hub. Slide the pump forward
into position.

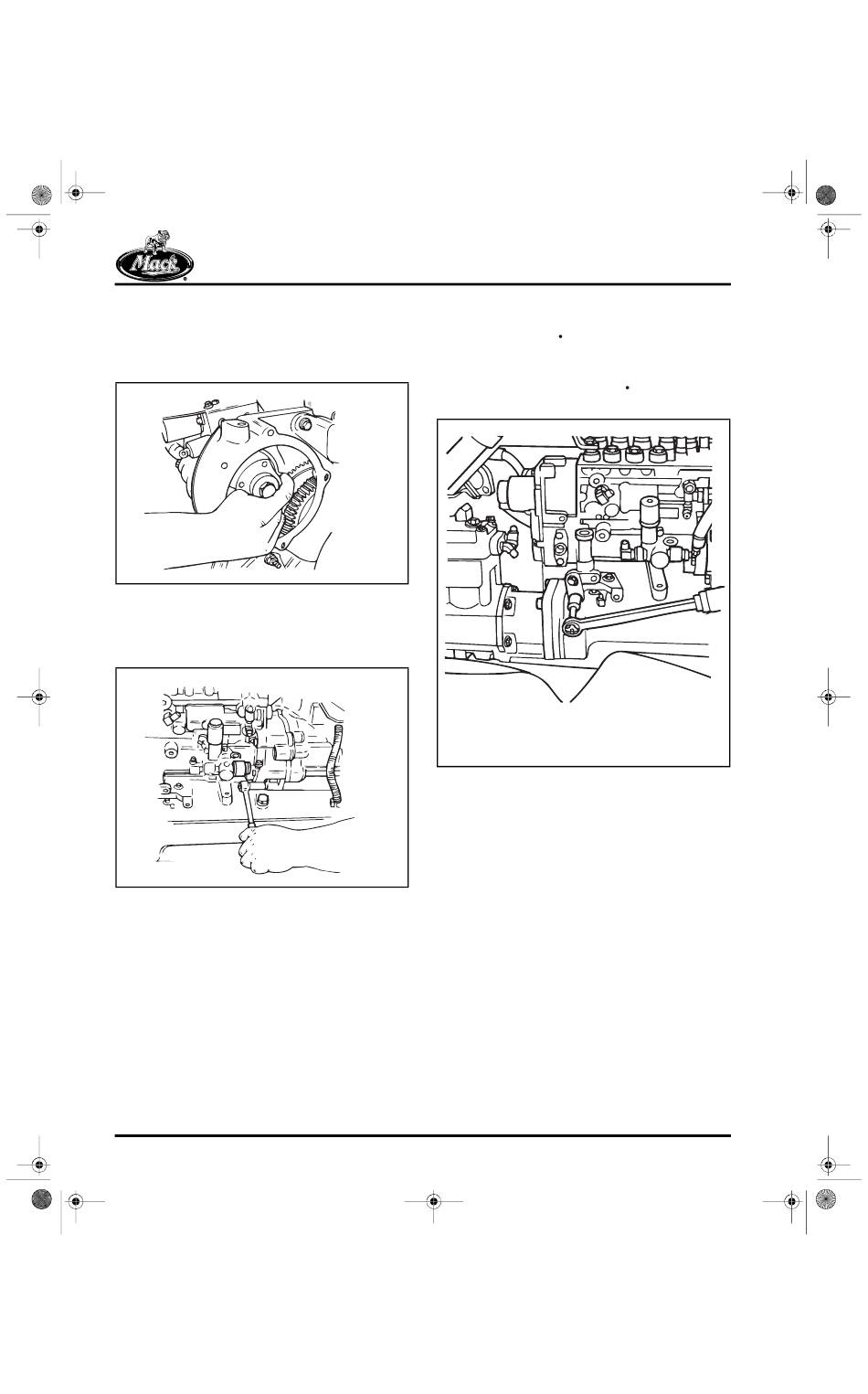

Figure 6-83 — Rotating Hub
6. To secure fuel injection pump, install the
lower pump adapter mounting capscrew and
then remove the alignment dowels.
Figure 6-84 — Securing Fuel Injection Pump
Page 6-68
200 ENGINE ASSEMBLY
7. Install and torque the remaining fuel
8. Install and torque the two link-to-support
200446a
200447a
injection pump adapter mounting capscrews
to 40 lb-ft (54 N m) using torque wrench
J 24407 or equivalent.
capscrews to 40 lb-ft (54 N m) using torque
wrench J 24407 or equivalent.
Figure 6-85 — Torquing Link Capscrews
200449a
