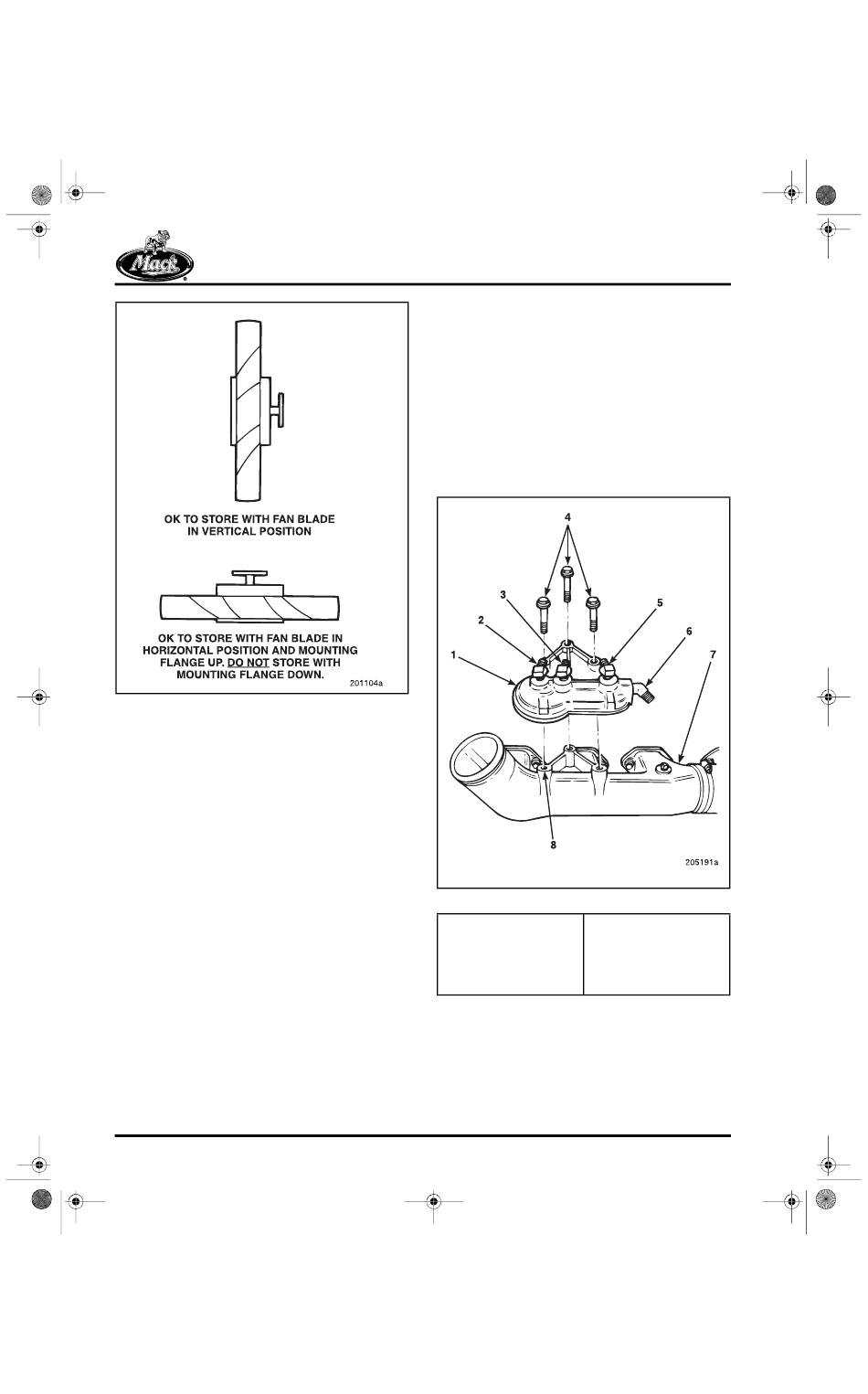

Figure 4-5 — Viscous Fan Drive Assembly Storage
Page 4-6
200 ENGINE DISASSEMBLY
[231 PB] FUEL FILTER
ADAPTER ASSEMBLY
Refer to Figure 4-6
1. Disconnect three fuel lines from fittings (2, 3
and 5) on fuel filter adapter assembly (1).
Tag and cap all lines.
2. Remove three capscrews (4) from the top of
the fuel filter adapter assembly.
3. Remove fuel filter adapter assembly from
the air inlet manifold (7).
Figure 4-6 — Fuel Filter Adapter Assembly Removal
1. Fuel filter adapter 4. Capscrews
assembly 5. Primary filter fitting (out)
2. Secondary filter fitting 6. Primary filter fitting (in)
(out) 7. Air inlet manifold
3. Secondary filter fitting 8. Mounting flange
(in)
