GW Instek LCR-05A Quick Start Manual

Test Fixture
LCR-05A
QUICK START GUIDE
GW INSTEK PART NO. 82CR-05A00M01
ISO-9001 CERTIFIED MANUFACTURER
O
VERVIEW
The LCR-05A Test Fixture for axial & radial leaded components.
Specifications
Model
DUT Connector
Measurement Frequency
Maximum Voltage
Application size
Dimensions:
Weight
Operating Environment
Additional error (with open & short correction)
Proportional error f≦20MHz
Proportional error f＞20MHz
Open repeatability
Short repeatability
LCR-05A
4-Terminal
DC to 30MHz
±45V Peak max.(AC+DC)
See figure below with electrode size
98W x 25H x 65D mm
246g
0~50˚C, <70%RH
f:[MHz]
2
0.275 × (f/10) [%]
5.5 × (f/100) [%]
0.002 + 10 × (f/100) [μS]
2 + 600 × (f/100) [mΩ]
①
This manual contains proprietary information, which is protected by
copyright. All rights are reserved. No part of this manual may be
photocopied, reproduced or translated to another language without
prior written consent of Good Will Corporation.
The information in this manual was correct at the time of printing.
However, Good Will continues to improve its products and therefore
reserves the right to change the specifications, equipment, and
maintenance procedures at any time without notice.
Good Will Instrument Co., Ltd. No. 7-1, Jhongsing Rd., Tucheng Dist., New Taipei City
236, Taiwan.

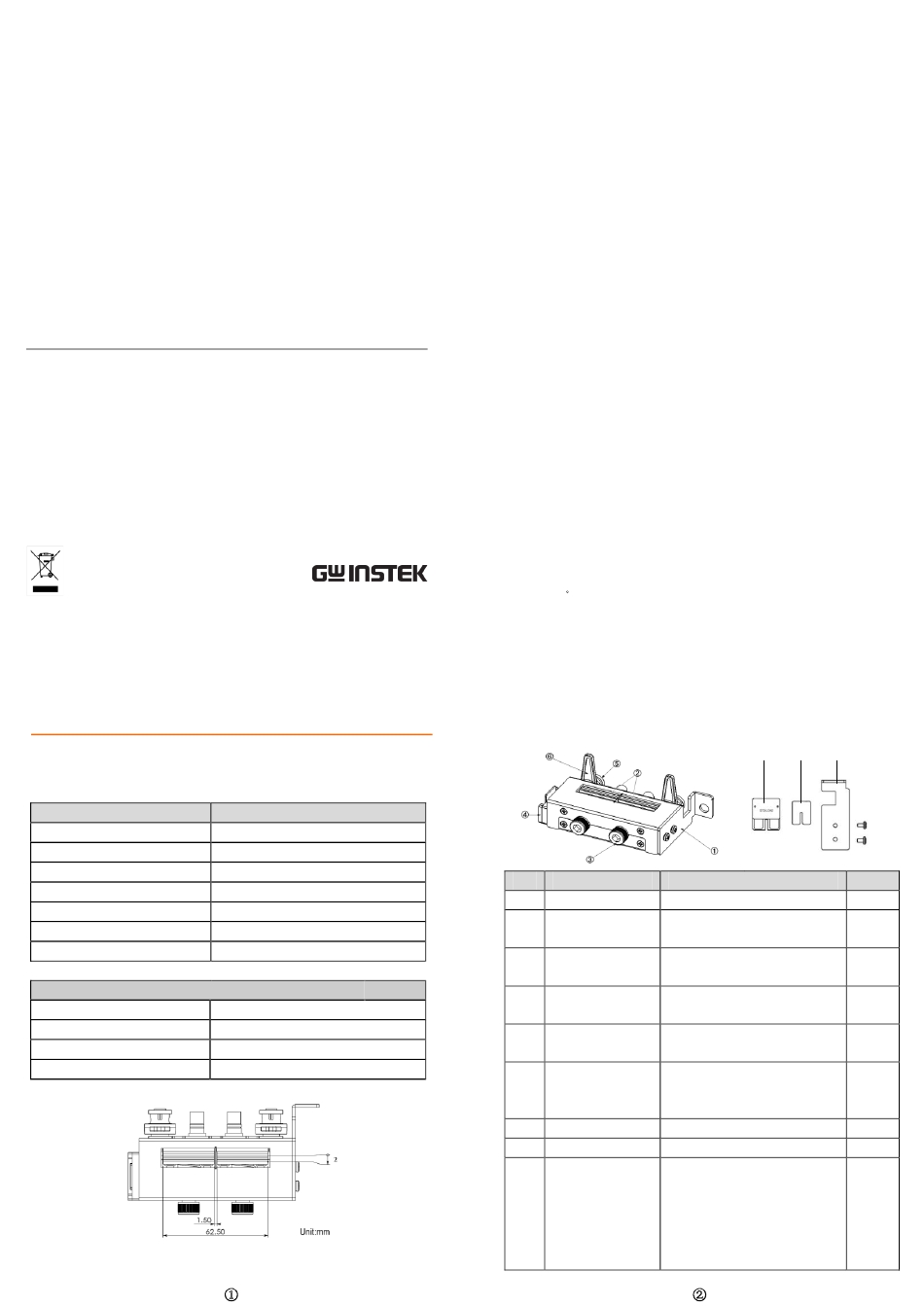

F
ixture Overview
Index Item
1 Test Fixture Main Body The main body of test fixture
Test terminals that connect with
2 Electrode
DUT (Device Under Test)
To adjust the scale of Electrode
3 Adjusting Screw
openings at both sides
Short-Circuit Jumper
4 To place the short-circuit jumper
Box
Measuring terminals that connect
5 BNC
with instruments
It fastens or loosens terminals
6 Fixing Handles between BNC and instrument. Turn
right to fix, whilst turn left to loosen
7 STD LOAD Standard resistor (100Ω)
8 Short-Circuit Jumper The short-circuit Jumper
It can be fixed to test fixture main
body to raise stability when test
fixture is under test, further
9 L-Shape Bracket
reducing BNC improper force (The
screws are fixed on the test fixture
main body by default)
  
Description Quantity
②
1
4
2
1
4
2
1
1
1
