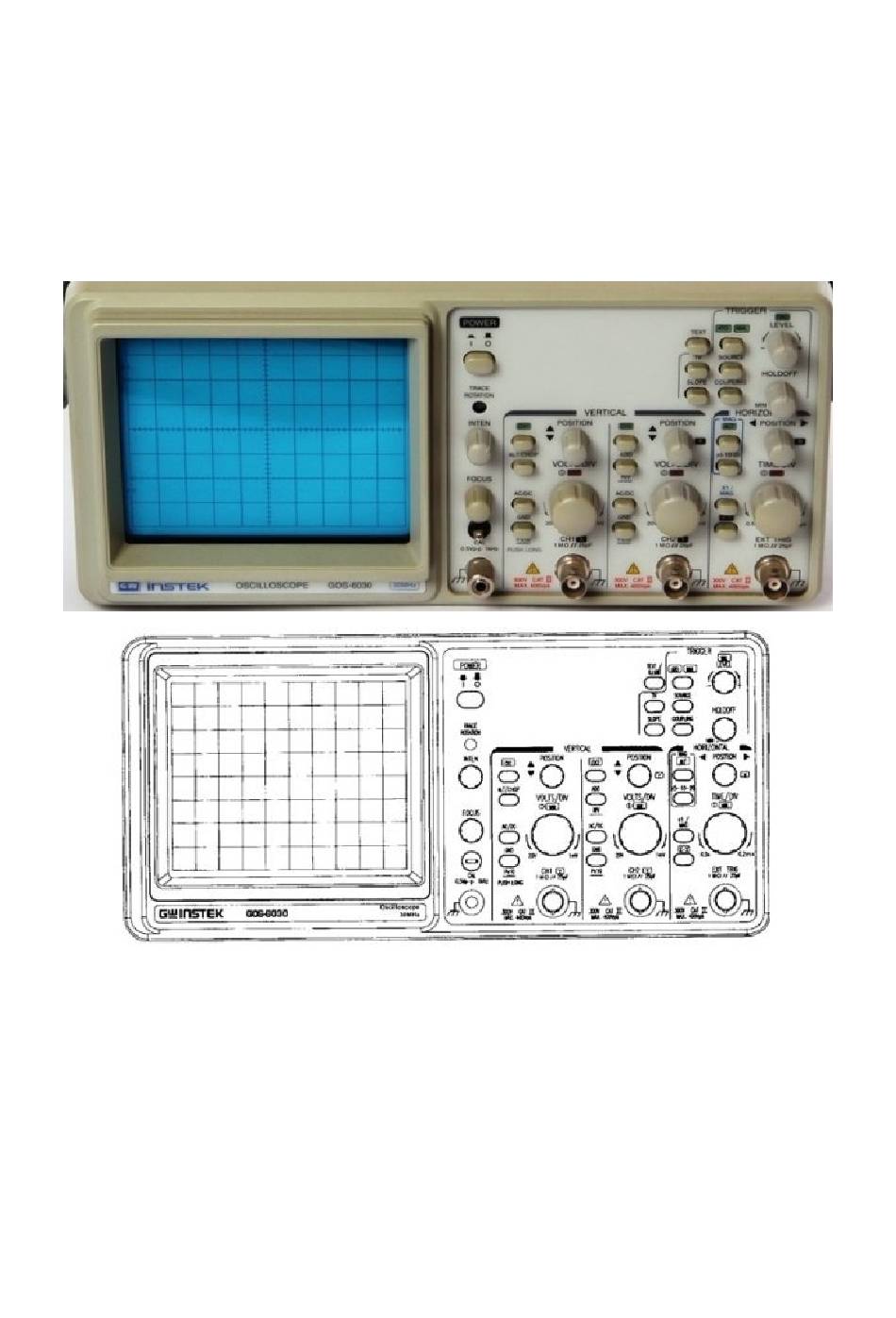

- Page 1 GW Instek GOS-6030 Oscilloscope Schematics Only Reverse Engineered from the PCB's THIS IS NOT AN OFFICIAL DOCUMENT PLEASE USE WITH CAUTION Bob Ford 2017 Rev 5...
- Page 2 GW Instek GOS-6030 Reverse Engineered Service Manual Introduction A few years ago the opportunity came along to purchase a number of GW-Instek GOS-6000 series oscilloscopes, all with faults/damage. A deal was then agreed, and for better or worse I became the owner of 16 6XXX oscilloscopes of varying specifications.
- Page 3 Block Diagram...
- Page 4 Applicable GOS-6030 PCB Assemblies OS-10P04C-2 CPU Board OS-10P01C Input Amp Board OS-01P03G-4 CRT Board OS-10P03G-1 HV PSU Board OS-10P03F-1 HV PSU Board (Build 2) OS-10P03G-5 LV PSU Board OS-10P02D X Drive Board OS-10P03G-6 Y Drive Board Front Panel Board OS10P03G-03...
- Page 5 Description The GOS-6030 oscilloscope is the base model from a small range with varying bandwidths, capabilities and features (6031, 6051 etc.), the third digit indicates the bandwidth in MHz, and the last digit the specification level. My guess is that most, if not all of the internal circuit boards are common across the range (which I will confirm as I investigate the scopes in more depth), with a few extra boards installed, or varying build levels on the common modules to extend the specifications.
- Page 6 Fault/Servicing Notes • Be careful of sharp edges on the chassis. It will bite! • With any brightness issues or dim/weak traces, first check the CRT board for dry joints • Access to the X input circuits can be tricky. Desoldering the screening plate at the two rear corners, and then sliding the plate to the rear will give access to the components.
- Page 7 LV Power Supply Board Image...
- Page 8 LV Power Supply Board Schematic...
- Page 9 HV Power Supply Board Image...
- Page 10 HV Power Supply Board Image (Type 2)
- Page 11 HV Power Supply Board Schematic...
- Page 12 CRT Board Schematic...
- Page 13 Potentiometer Board Schematic...
- Page 14 X Board Image...
- Page 15 X Board Schematics...
- Page 16 X Board Schematics...
- Page 17 X Board Schematics...
- Page 18 Y Board Image...
- Page 19 Y Board Schematic...
- Page 20 X Pre Amp Board...
- Page 21 CPU Board...
