- Page 1 DC Bias Test Fixture LCR-16, LCR-17 QUICK START GUIDE GW INSTEK PART NO. 82CR-17000M01 ISO-9001 CERTIFIED MANUFACTURER...
- Page 2 This manual contains proprietary information, which is protected by copyright. All rights are reserved. No part of this manual may be photocopied, reproduced or translated to another language without prior written consent of Good Will Corporation. The information in this manual was correct at the time of printing. However, Good Will continues to improve its products and therefore reserves the right to change the specifications, equipment, and maintenance procedures at any time without notice.

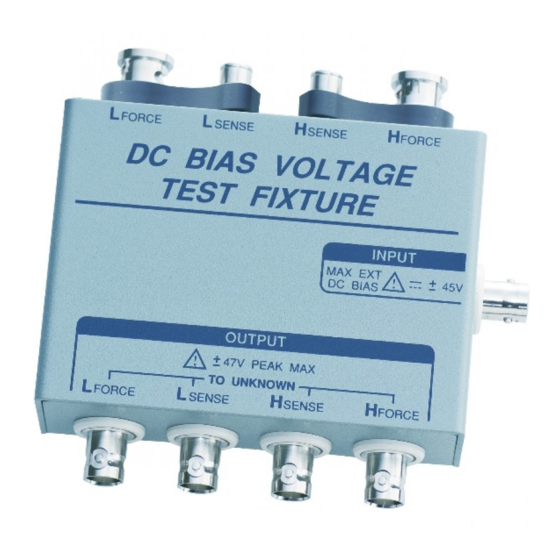

- Page 3 VERVIEW The LCR-16 DC Bias Voltage Test Fixture/LCR-17 DC Bias Current Test Fixture should be installed between the LCR meter and the test fixture. The DC Bias Fixtures are used to pass additional DC bias voltage or current to test components.
- Page 4 Fixture Overview LCR-16 Overview LCR-17 Overview...
- Page 5 LCR-16/LCR-17 DC Bias Input NSTALLATION LCR-16/LCR-17 Connect the DC Bias Test Fixture to the LCR meter’s BNC terminals. Next, connect the test fixture to the DC Bias Test Fixture. Confirm that the output is turned off from the power supply used for the DC bias.
- Page 6 LCR-16 Installation LCR-17 Installation...
- Page 7 EASUREMENT Before measurement, be sure to read the operating instructions to avoid danger. WARNING LCR-16 Place the component in the test fixture. Increase the voltage from the power supply gradually from 0V to the desired voltage value. Perform measurement on the component.
- Page 8 Do not remove the BNC cable from the DC Bias input before turning off power to the test component. NOTE Please note that when using the DC bias fixture, the test component may cause electric shock. Do not perform zeroing or short calibration when the DC Bias input is used.
