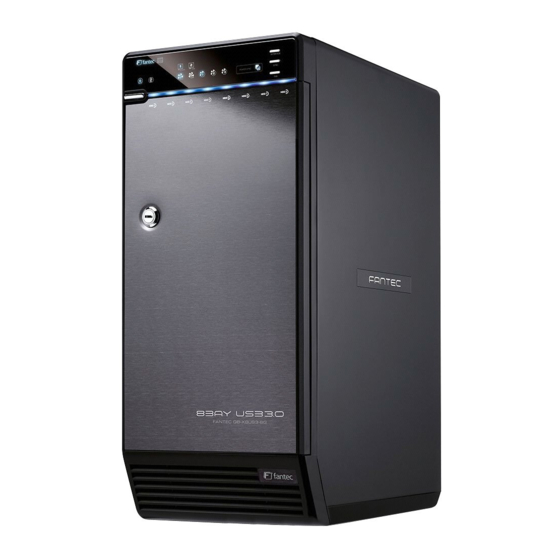

Fantec QB-X8US3-6G Quick Installation Manual

FANTEC QB-X8US3-6G
8x3,5" SATA HDD USB3.0 eSATA
Quick Installation Guide
1
Note
STEP
Operation System
Windows Vista / 7 / 8 / 8.1 (32/64bit),
Macintosh OS X 10.5 or later, Linux
Operation Environment
Temperature 0 ~ 50 °C Humidity 90
References
1.
Smart fan controlled by the built-in thermal sensor
and it comes with 2 modes (auto/ manual) and 3 levels of speed:
Level 1: higher than 55 °C
Level 2: 45 °C ~ 54 °C
Level 3: below 45 °C
2.
eSATA transfer data up to 6.0 Gbps
USB 3.0 transfer data up to 5.0 Gbps
USB 1.1 / 2.0 / 3.0 compatible
3. Interface of USB / eSATA can not be used at the same time.
4.
Under Windows Vista / 7, users can enable GPT when initializing
HDD with a total capacity of more than 2TB.
5.
Via eSATA port a controller with port multiplier (PM)
is required.
2
Reminders
STEP
1.
USB port of your PC must support power-off function so that the
device would go to sleeping mode. Setting up motherboard's
( power management ) in S3 is strongly recommended. For more
details, please refer to user guide of motherboard BIOS setting.
2.
Smart fan controlled by the built-in thermal sensor and it comes
with 2 modes (auto / manual) and 3 levels of speed
Low
below 45°C
Medium
between 45°C~55°C | 1800rpm
High
hotter than 55°C
3.
Maximum HDD capacity: 6TB each HDD (status: October 2014),
8 single hard drives are displayed at PC (JBOD)
4.
• Follow all instructions.
• Do not place this device near water.
• Clean only with dry cloth.
• Do not block any ventilation openings.
• Only use attachments/accessories.
• Do not drop or shake the device.
• Do not move the device when it is powered on.
Version 1.0
RH
2,500rpm ~ 3,500rpm
1,800rpm ~ 2,500rpm
1,200rpm ~ 1,800rpm
| 1200rpm
| 2500rpm
Please visit our website for more information:
www.fantec.eu
www.fantec-forum.com
3

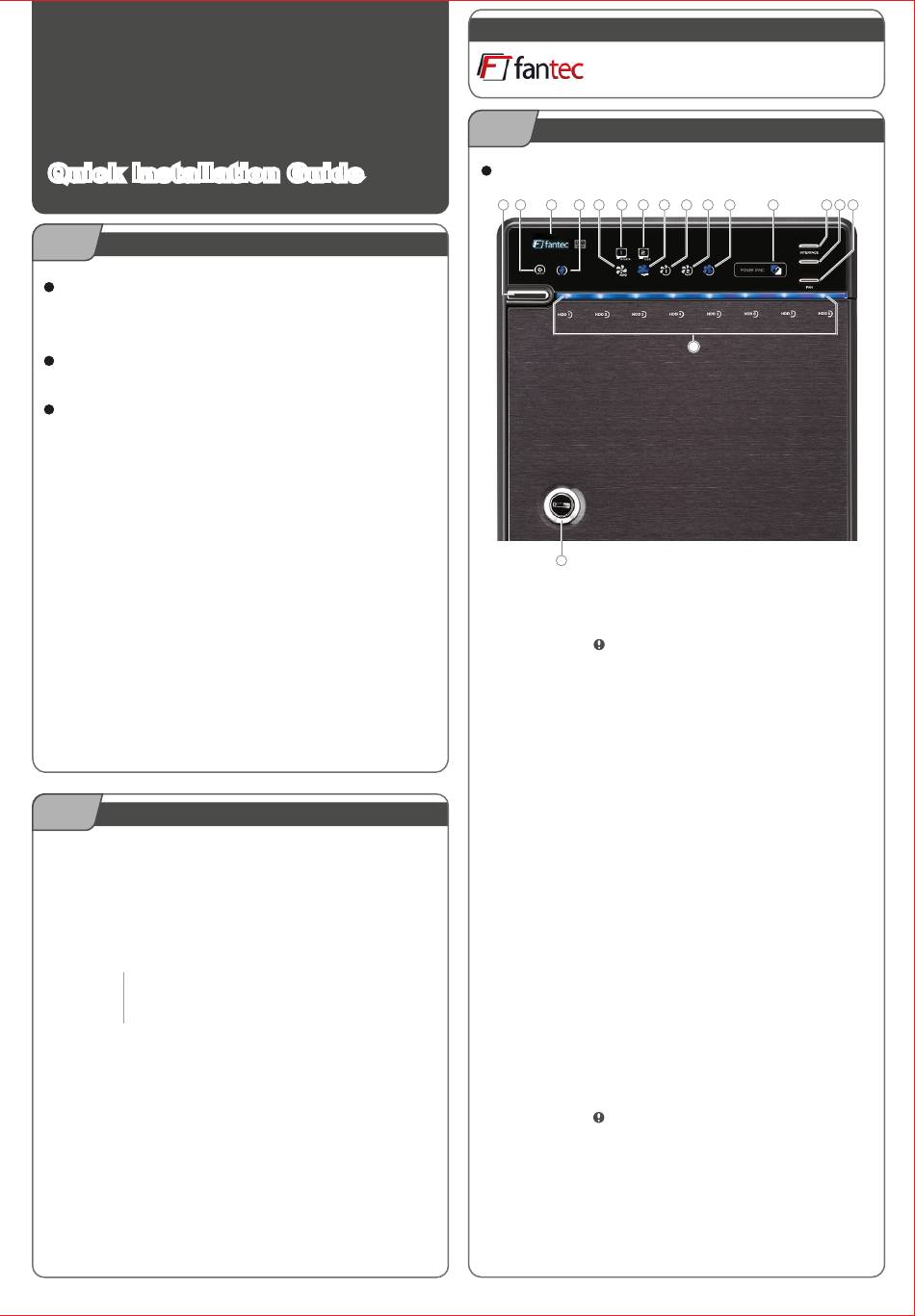

Front Panel Overview
STEP
LED Indication / Button
1 2 4 3 7 5 6
17
Descriptions
1. It needs to be pressed and held for 3 seconds
Power button
to power off.
This design prevents accidental power off.
2. eSATA
Link interface use
3. USB Link interface use
4.
Blue Power on
Orange Sleep mode
5. eSATA Link interface option
6.
USB Link interface option
7. Smart Fan automatic mode
8.
Smart Fan manual mode
9. Fan speed level 1
10. Fan speed level 2
11.
Fan speed level 3
12. Synchronization comes in 3 modes:
Blue When the PC is off, the device goes off In 15 seconds.
Orange When the PC is off, the device goes to sleep mode.
Off Synchronization is off.
13. Interface button
14. Synchronization mode button
It needs to be pressed and held for 3 seconds
to power off.
This design prevents accidental power off.
15. Smart fan button : auto, manual and fan speed from level 1
to level 3
16.
HDD1 / HDD2 / HDD3 / HDD4 / HDD5 / HDD6 / HDD7 / HDD8
Blue active
Purple access
17. Key slot
8 9 11 12 13 14 15
10
SYNC
16
