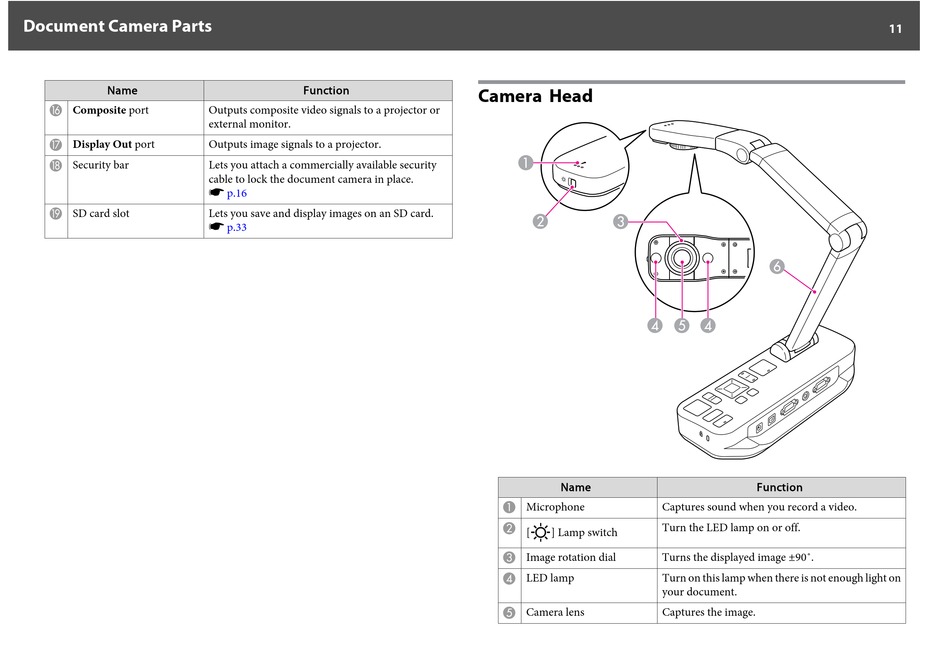

Camera Head - Epson ELPDC11 Document Camera User Manual

Document Camera Parts
Name
P
Composite port
Q
Display Out port
R
Security bar
S
SD card slot
Function
Outputs composite video signals to a projector or
external monitor.
Outputs image signals to a projector.
Lets you attach a commercially available security
cable to lock the document camera in place.
p.16
s
Lets you save and display images on an SD card.
p.33
s

Camera Head

Name
A
Microphone
B
[ ] Lamp switch
C
Image rotation dial
D
LED lamp
E
Camera lens
Function
Captures sound when you record a video.
Turn the LED lamp on or off.
Turns the displayed image ±90˚.
Turn on this lamp when there is not enough light on
your document.
Captures the image.
