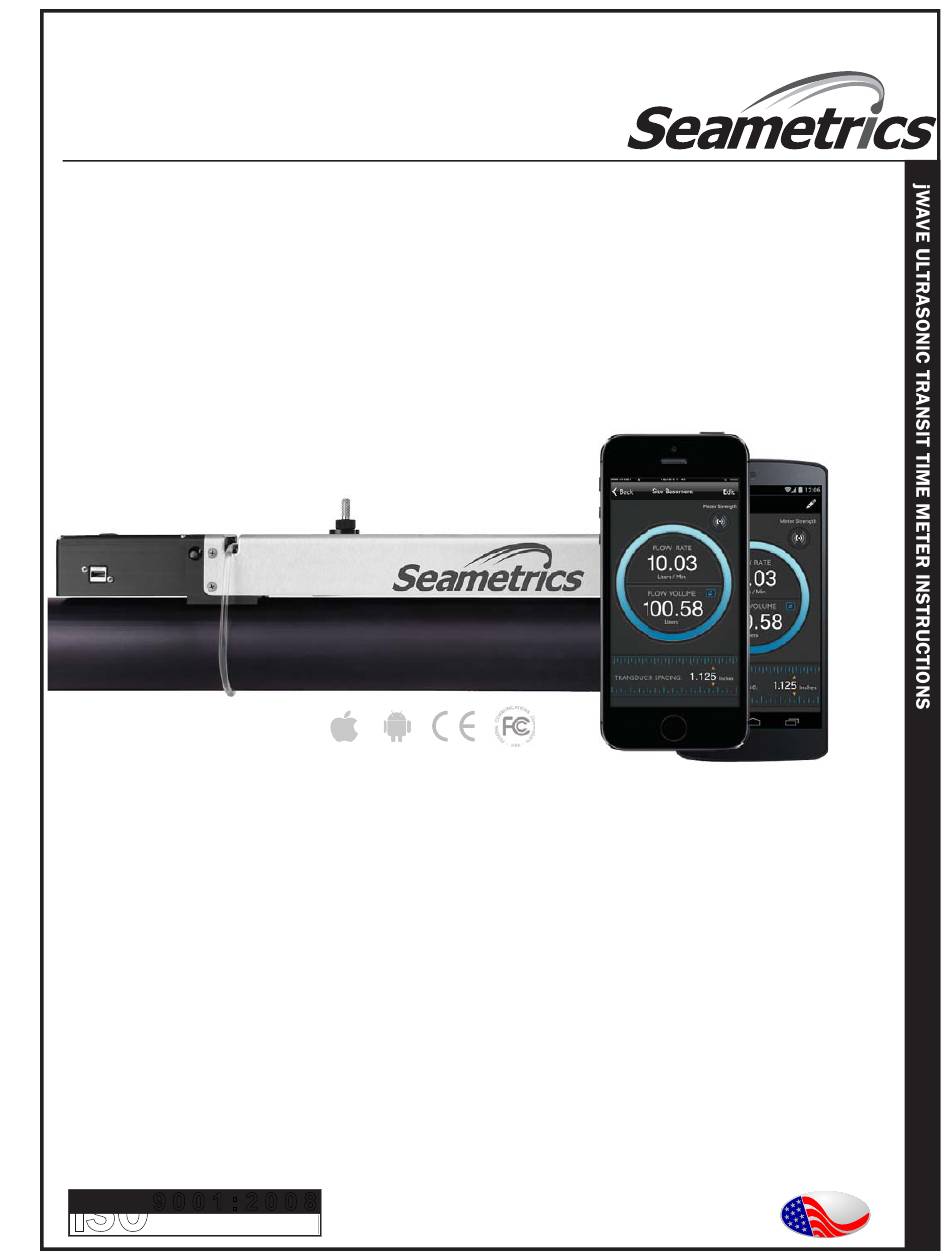

- Page 1 ULTRASONIC TRANSIT TIME METER INSTRUCTIONS 9 0 0 1 : 2 0 0 8 PROUDLY MADE IN THE CERTIFIED COMPANY...
- Page 2 * On a full charge, the jWAVE will have a shelf life of up to fi ve months. It is a good idea to charge the unit for a full eight hours if it hasn’t been used for a month or two. Note that if the battery is fl at, the power button LED will blink rapidly for fi ve seconds and then the meter will turn off.
-
Page 3: Location Set-Up
When it’s time to recharge the battery, the app will let you know. * On a full charge, the jWAVE will have a shelf life of up to fi ve months. It is a good idea to charge the unit for a full eight hours if it hasn’t been used for a month or two. - Page 4 INSTRUCTIONS Pipe and liquid parameter selection and input screens. Units Liner Liquid Pipe Display Toggle between Switch between Select Liquid Type Select Pipe Drag and drop metric and liner and no from our pre- Type and Wall the outputs that Imperial units of liner.
- Page 5 Parameters all set! Now you have your transducer spacing. With your location parameters defi ned you can now get the transducer spacing from the app. Use this value to set the position of transducers on the jWAVE Sensor. Indicates the Your fl ow...
- Page 6 INSTRUCTIONS Preparing and mounting the sensor. Now the convenient Cam Cleat lets you mount the sensor on the pipe in seconds–no cumbersome clamps required. Bi-directional readings are transmitted wirelessly to your mobile device for display. Begin by gently rotating...
- Page 7 Refer back to the jWAVE App to get your fl ow readings. Got your readings? Snap the cords out of their Cam Cleats and you’re ready to move on to your next measurement. Next time you return to this location, the jWAVE App will remember your settings. Support.
- Page 8 Battery (Up to 12 hours) (1W max) 150 mAmp max current Installation 10 diameters upstream 5 diameters downstream for optimal performance Environmental IP65 *Specifi cations subject to change • Please consult our website for current data (www.seametrics.com) Dimensions. 28.44 2.38 28.44 23.5...
