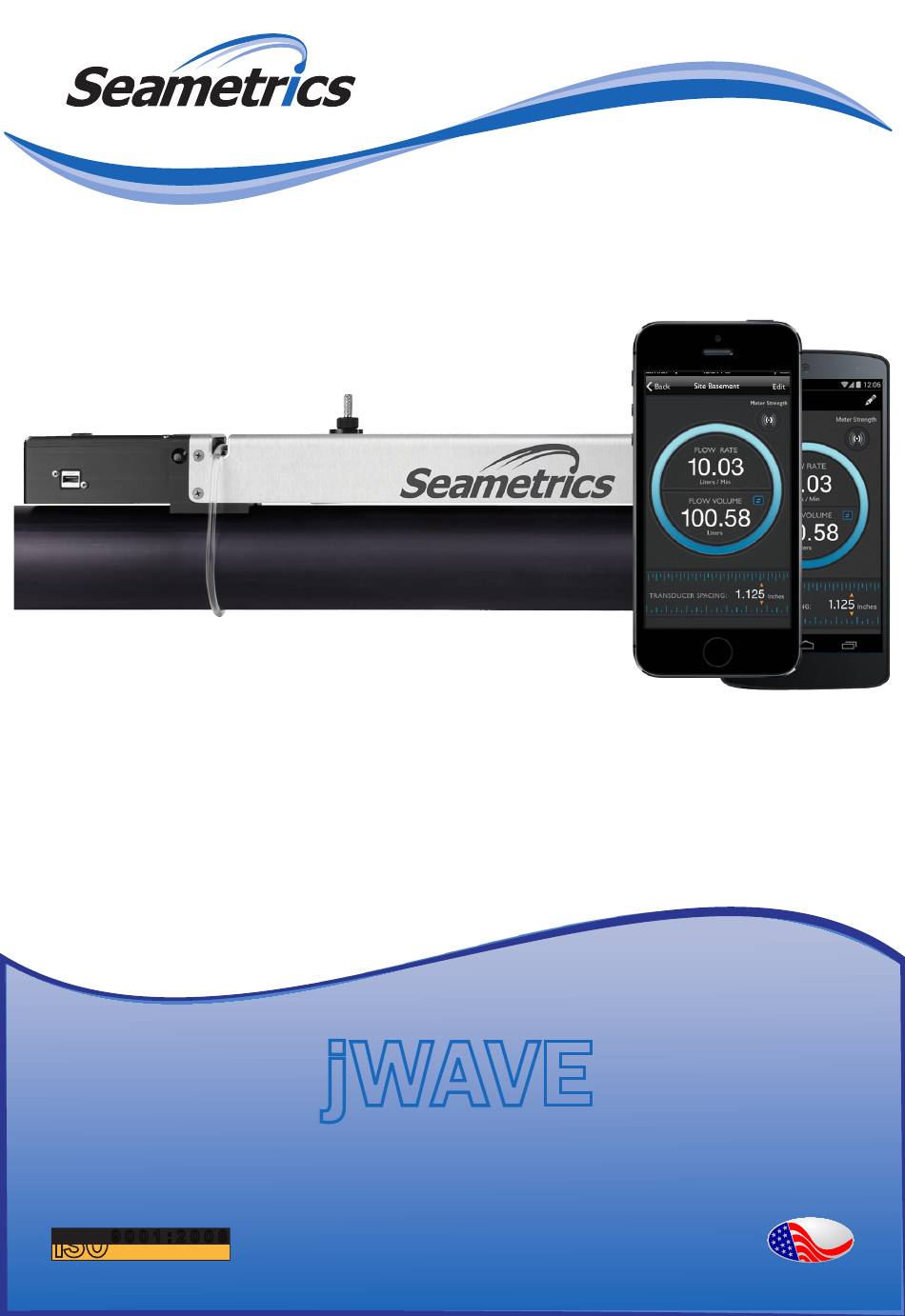

- Page 1 Flow Meters & Controls jWAVE Municipal/Industrial Magmeter Instructions PROUDLY 9 0 0 1 : 2 0 0 8 MADE IN THE CERTIFIED COMPANY...
- Page 2 Welcome to Seametrics JWAVE This guide shows you how to download the mobile application and helps you set it up and pair it with the JWAVE Sensor to start tak- ing readings. JWAVE ships fully charged and works for up to 8 hours between charges.
-
Page 3: Let's Get Started
Don’t see the right Name option? your Add your custom values! location Give your location a name, then save. Each loca- tion’s settings can be stored in the JWAVE app, ready for reuse. - Page 4 Pipe and liquid parameter selection. and input screens Units Display Pipe Liner Liquid Toggle between Drag and drop Select Pipe Type Switch between Select Liquid metric and the outputs that and Wall Clas- liner and no Type from our Imperial units of you rely on most sifications from liner.
- Page 5 Parameters all set! Now you have your transducer spacing. With your location parameters defined you are now getting the transducer spacing from the app. Use this value to set the position of transducers on the JWAVE Sensor. Indicates the strength of your signal within the JWAVE Sensor.
- Page 6 Preparing and mounting the sensor. Now the convenient Cam Cleat lets you mount the sensor on the pipe in seconds–no cumbersome clamps required. Bi-directional readings are transmitted wirelessly to your mobile device for display. Begin by gently rotat- Cover the entire ing and retracting bottom face of each the silver knobs until...
- Page 7 Refer back to the JWAVE App to get your flow readings. Got your readings? Snap the cords out of their Cam Cleats and you’re ready to move on to your next measurement. Next time you return to this location, the JWAVE App will remember your settings. Support Your JWAVE Sensor comes with a 90 day guarantee and technical support.
- Page 8 Seametrics Incorporated • 19026 72nd Avenue South • Kent, Washington 98032 • USA (P) 253.872.0284 • (F) 253.872.0285 • 1.800.975.8153 • www.seametrics.com LT-XXXXXX-051215 5/15...
