Ford Prep Rails UL
DEMCO • 4010 320th St. • Boyden, IA 51234 • www.demco-products.com
PH: (712) 725-2311 • Toll Free: 1-800-543-3626 • FAX: (800) 845-6420
6175 parts list
itEM
part #
QtY
1
00173
4
2
02384
4
3
14413-95
4
14423
4
8
5
14930
16
6
15817-76
1
15818-76
7
4
15819-95
8
4
9
15826
2
please order replacement parts by part NO. and DEsCriptiON.
DEsCriptiON
NUT, HEX, .50NC CENTER PUNCH
.50 X 14GA MACHINE WASHER
LOCKING TAB
WASHER SHIM .875 ID X .030 THK
BOLT .375NC X 1.00 GR5 HEX W/ SRTD FLNG

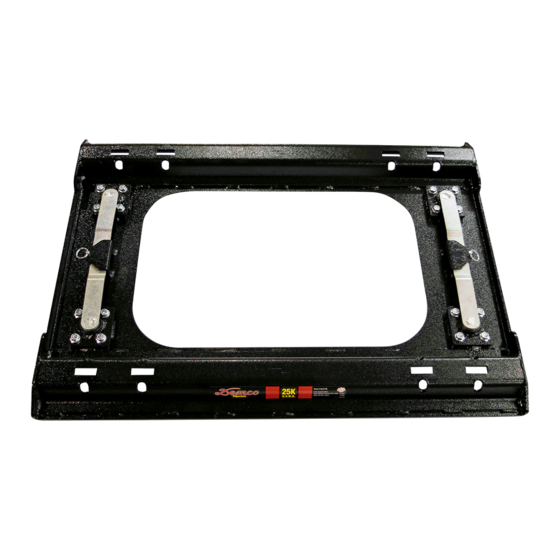

FORD PREP UL BED FRAME
FORD PREP SOCKET
LATCH HANDLE
PIN, QUICK RELEASE .313 X 1.00
10/16
HJ26175, Rev 0
Advertisement
Table of Contents
Related Manuals for Demco 6175
Summary of Contents for Demco 6175
- Page 1 LATCH HANDLE 15826 PIN, QUICK RELEASE .313 X 1.00 please order replacement parts by part NO. and DEsCriptiON. DEMCO • 4010 320th St. • Boyden, IA 51234 • www.demco-products.com PH: (712) 725-2311 • Toll Free: 1-800-543-3626 • FAX: (800) 845-6420...
- Page 2 1. To fit the frame for the truck pods, remove covers from each 3. Once your latches are setup for your truck, turn handle in so mounting pod and with the locking arm bolts loose enough to move they will lock into each other as shown in picture. the locking mounts, place main frame into box of truck over mounting pods so the locking arms fit into the truck pods as shown.
